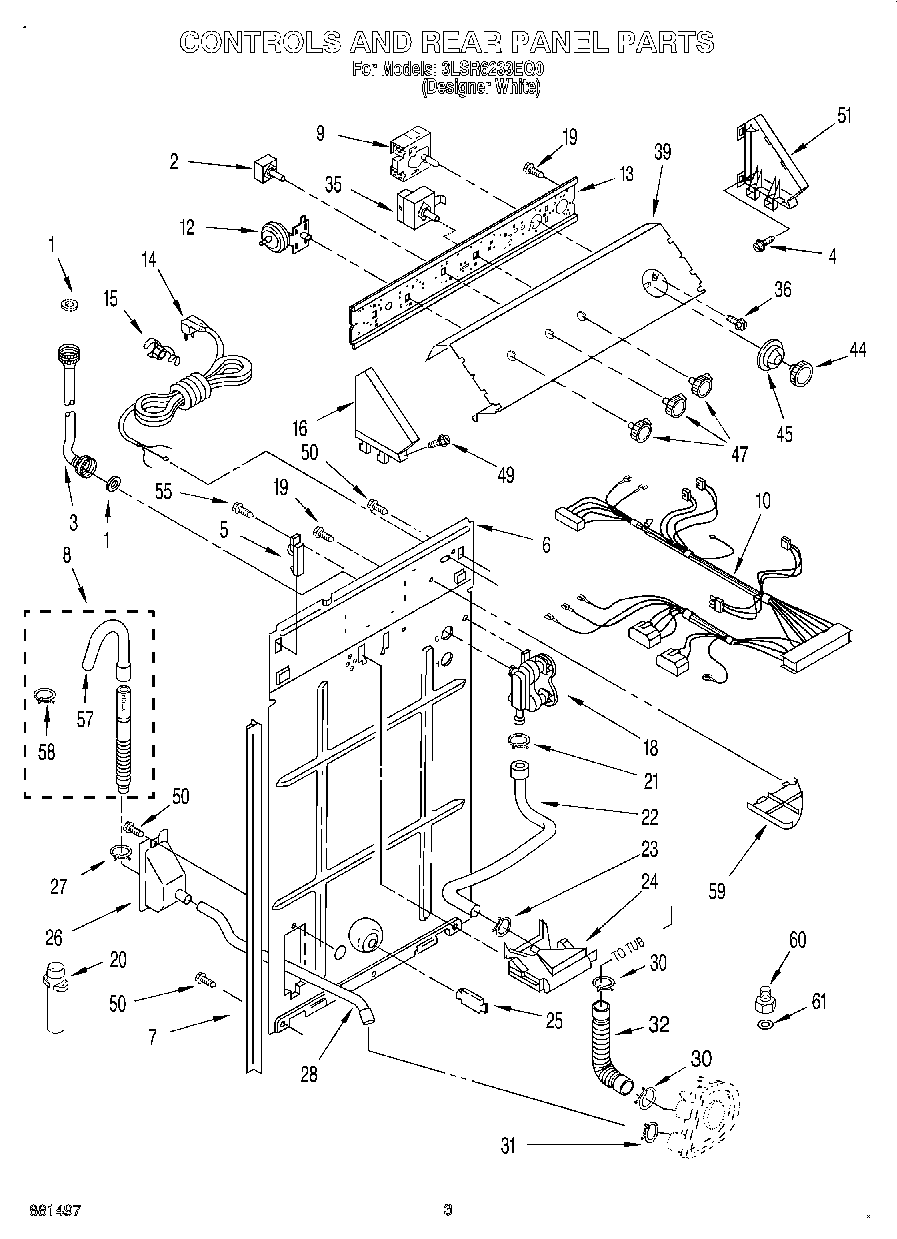

3LSR6233EQ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	W10851055 Whirlpool Cycle Switch
3	WP89503 Whirlpool Washer Fill Hose
4	WP90767 Whirlpool Screw
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
8	285702 Whirlpool Extensions
9	Timer, Control (50 Hz.) (Motor Not A Service Part)
10	Harness, Wiring (For Detail See Wiring Harness Parts Page)
12	WP3356467 Whirlpool Washer Water Level Switch
13	WP3948608 Whirlpool Bracket
14	Cord, Power
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
18	WP3360397 Whirlpool Valve
19	WP3351614 Whirlpool Screw
20	3363920A Whirlpool Adapter Assembly
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Hose, Pump To Drain
30	WP616099 Whirlpool Clamp
31	WP371502 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
35	WPW10168256 Whirlpool Temperature Switch
36	W10915367 Whirlpool Screw Assembly
39	Panel, Console
44	W10807860 Whirlpool White Control Knob
45	WP3957841 Whirlpool Dial
47	WP3957796 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.)
55	WP308685 Whirlpool Microwave Screw
57	WP3357027 Whirlpool Nozzle Assembly
58	WP3357331 Whirlpool Clamp
59	Shield, Inlet
60	WP3357397 Whirlpool Adapter
61	WP3357450 Whirlpool Washer Assembly
