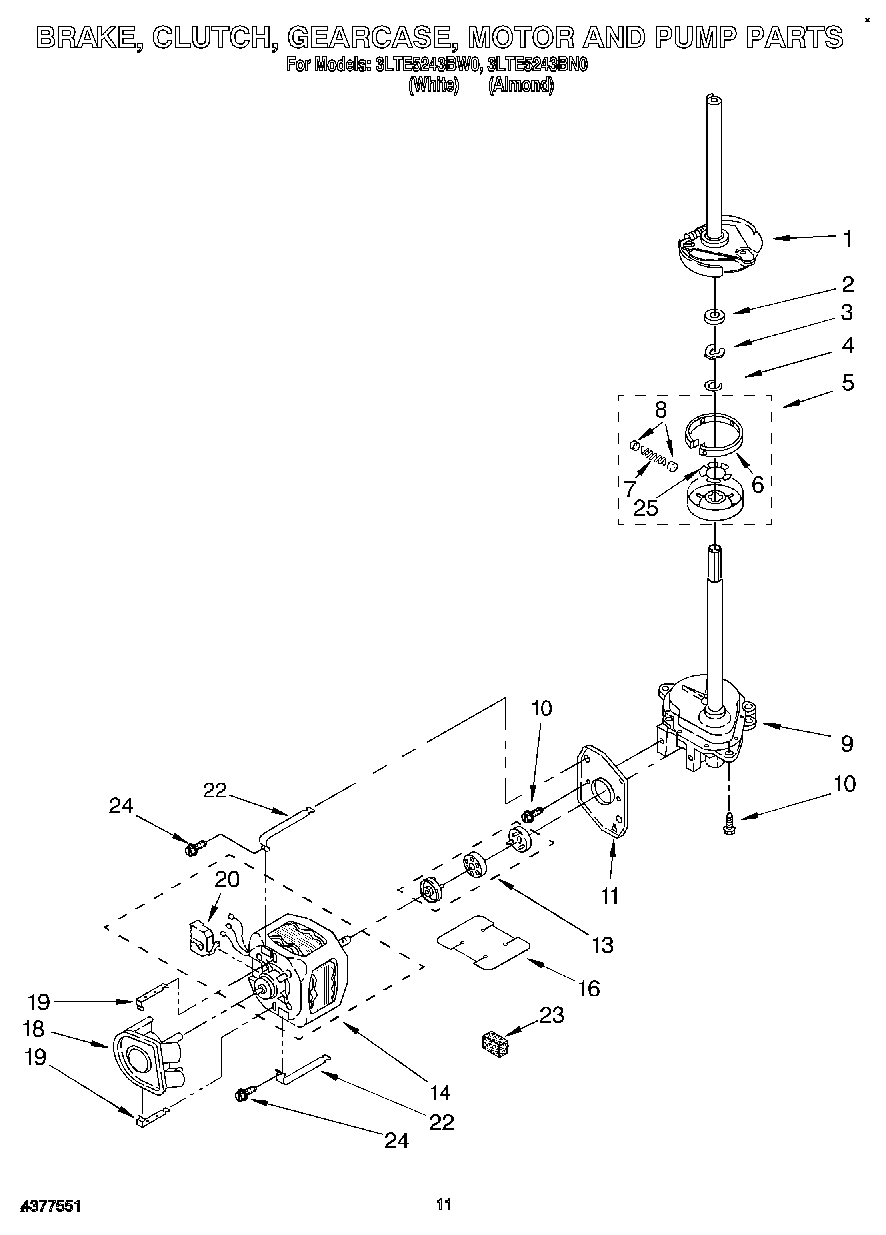

3LTE5243BN0 08 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Products

PositionProduct
1W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2WP63292 Whirlpool Washer
3WPW10080230 Whirlpool Ring
4285353 Whirlpool Ring
5285785 Whirlpool Washer Direct Drive Clutch
6285790 Whirlpool Washer Clutch Band and Lining Kit
7WP8559387 Whirlpool Spring
8WP62646 Whirlpool Cap
93363395 Whirlpool Gearcase
10WP3400516 Whirlpool Screw
11WP62611 Whirlpool Plate
13285753A Whirlpool Washer Direct Drive Motor Coupling
14Motor, Main Drive
16WP3946532 Whirlpool Shield
18WP3363394 Whirlpool Washer Drain Pump
19WP8546127 Whirlpool Retainer Clip
20Switch, Main Drive Motor
22WPW10086010 Whirlpool Motor Retainer Clip
233350013 Whirlpool Foam Seal
24WP273556 Whirlpool Screw
25Clip, Anti-Rattle
