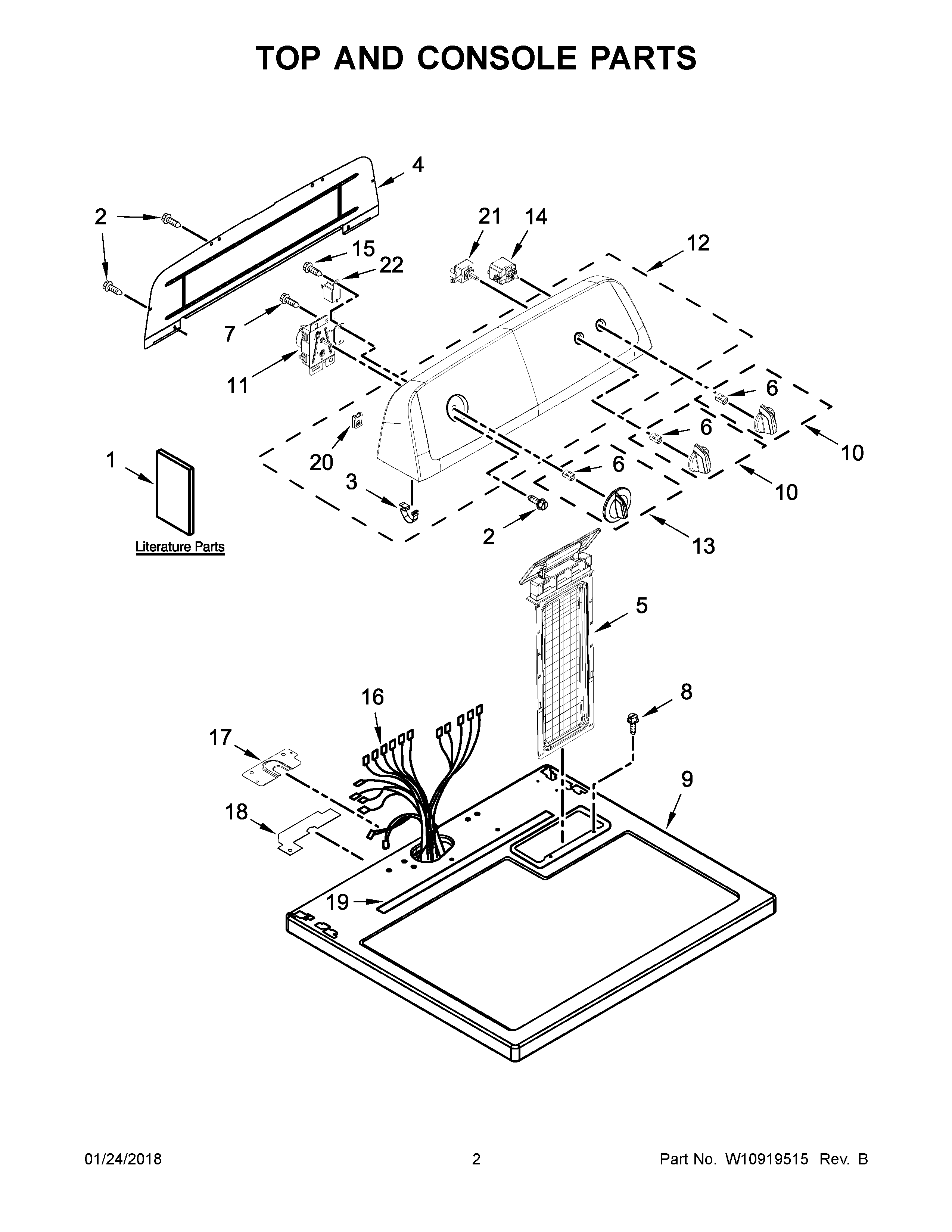

3LWED4705FW0 02 – TOP AND CONSOLE PARTS

3LWED4705FW0 02 – TOP AND CONSOLE PARTS

Written by

in

3LWED4705FW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1AINSTALLATION INSTRUCTIONS
1BWIRING DIAGRAM
2WP693995 Whirlpool Screw
3WP8312709 Whirlpool Endcap Clip
4WPW10416486 Whirlpool Rear Panel
5WPW10717210 Whirlpool Dryer Lint Screen Filter
6WP8536939 Whirlpool Spring Clip
8W11693756 Whirlpool Screw Assembly
9WP8563663 Whirlpool Top Assembly
10WPW10453947 Whirlpool Knob
11WPW10436303 Whirlpool Dryer Timer
12ASSEMBLY, CONSOLE (WHITE)
13WPW10711289 Whirlpool Washer Control Knob Dryer
14W11684611 Whirlpool Parts Switch
15WP90767 Whirlpool Screw
16HARNESS, MAIN
17BRACKET, HARNESS
18SEAL, HARNESS
19W10316616 Whirlpool Seal
20W11213336 Whirlpool Nut
21W10804592 Whirlpool Switch
223952439 Whirlpool Buzzer
