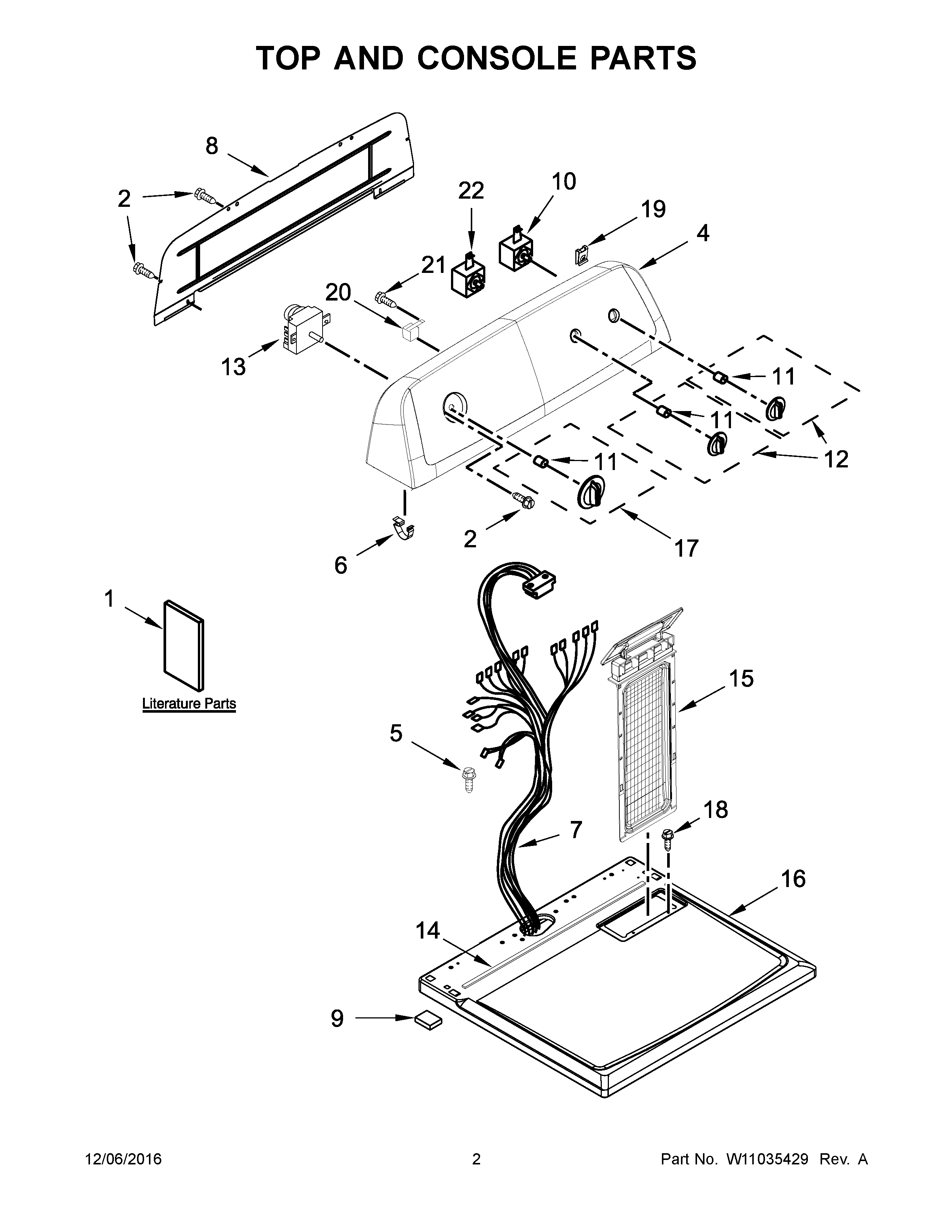

3LWED4730FW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	WIRING DIAGRAM
1	USE AND CARE GUIDE
3	WP693995 Whirlpool Screw
4	ASSEMBLY, CONSOLE (WHITE)
5	SCREW
6	WP8312709 Whirlpool Endcap Clip
7	HARNESS, MAIN
8	WPW10416486 Whirlpool Rear Panel
9	3389682 Whirlpool Spacer
10	W11684611 Whirlpool Parts Switch
11	WP8536939 Whirlpool Spring Clip
12	WPW10453947 Whirlpool Knob
13	WPW10436303 Whirlpool Dryer Timer
14	W10316616 Whirlpool Seal
15	WPW10717210 Whirlpool Dryer Lint Screen Filter
16	WP8563663 Whirlpool Top Assembly
17	WPW10711289 Whirlpool Washer Control Knob Dryer
18	W11693756 Whirlpool Screw Assembly
19	W11213336 Whirlpool Nut
20	3952439 Whirlpool Buzzer
21	WP90767 Whirlpool Screw
22	W10804592 Whirlpool Switch
