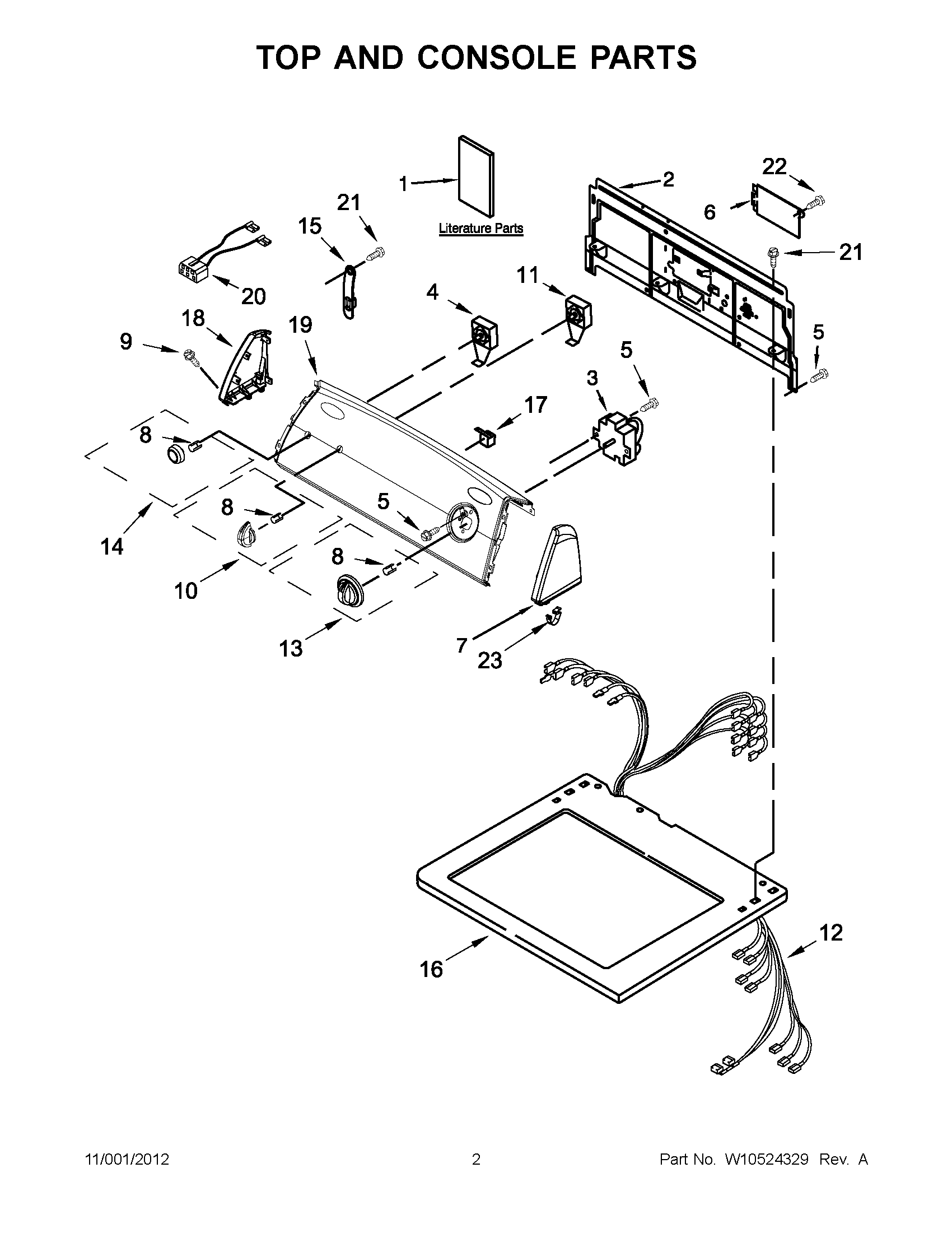

3LWED4800YQ0 01 – TOP AND CONSOLE PARTS

3LWED4800YQ0 01 – TOP AND CONSOLE PARTS

Written by

in

3LWED4800YQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1USE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
2285909 Whirlpool Rear Panel
3ASSEMBLY, TIMER (60 HZ.)
4W10238464 Whirlpool Relay Parts
6Cover, Terminal Block
7WP8565954 Whirlpool Endcap
8WP8536939 Whirlpool Spring Clip
9WP90767 Whirlpool Screw
10Knob, Control (3)
11W11235848 Whirlpool Switch
12HARNESS, MAIN
13TIMER KNOB ASSEMBLY
14WPW10034790 Whirlpool Knob
15WP8568314 Whirlpool Strap
16TOP (WHITE)
17Buzzer, Mini
18WP8565957 Whirlpool Endcap Assembly
19WPW10492149 Whirlpool Control Panel
20Wire, Jumper (Temperature)
21WP488729 Whirlpool Refrigerator Door Screw
22303776 Whirlpool Dishwasher Screw
23WP8312709 Whirlpool Endcap Clip
