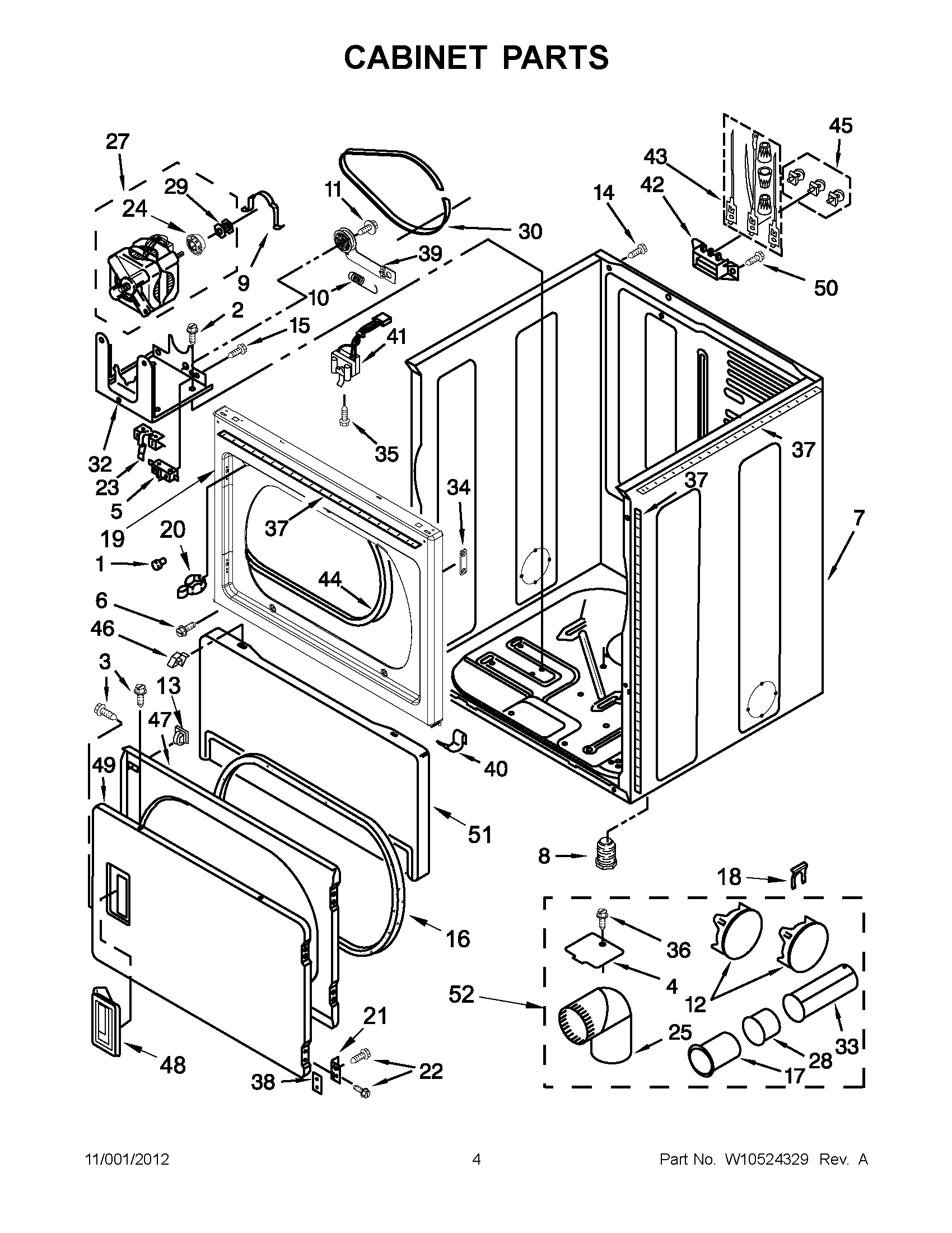

3LWED4800YQ0 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	693152 Whirlpool Bumper
2	SCREW
3	WP90767 Whirlpool Screw
4	WPW10354249 Whirlpool Cover
5	WP8318457 Whirlpool Switch Plug
6	W10891954 Whirlpool Screw
7	W11417441 Whirlpool Cabinet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279570 Whirlpool Dryer Door Latch Kit
14	W10850756 Whirlpool Screw
15	3400934 Whirlpool Screw
16	WP3390735 Whirlpool Door Seal
17	WP8563747 Whirlpool Exhaust Pipe
18	W11704629 Whirlpool Clamp
19	PANEL, FRONT (WHITE)
21	WPW10279703 Whirlpool Hinge Assembly
22	WP488627 Whirlpool Refrigerator Screw
23	W10854043 Whirlpool Lever Assembly
24	WP3393657 Whirlpool Belt Retainer
25	WPW10416072 Whirlpool Elbow
27	W10416573 Whirlpool Drive Motor
28	WPW10331278 Whirlpool Exhaust Pipe
29	3402548 Whirlpool Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
32	WP3387118 Whirlpool Base Assembly
33	WP8563749 Whirlpool Exhaust Pipe
34	W10191265 Whirlpool Plug
35	WP3395530 Whirlpool Screw
36	WP693995 Whirlpool Screw
37	Seal, Foam
38	WP3390902 Whirlpool Clip
39	W10837240 Whirlpool Dryer Idler Pulley
40	WPW10291934 Whirlpool Clip
41	SWITCH-DOOR DRYER
42	WP3397659 Whirlpool Terminal Block
43	279318 Whirlpool Terminal
44	WP3387242 Whirlpool Seal
45	279393 Whirlpool Terminal Block Screw and Nut Kit
46	WP3388229 Whirlpool Dryer Spring Clip
47	280083 Whirlpool Rear Door
48	3389522 Whirlpool Handle
49	W11663440 Whirlpool Door
50	WP308685 Whirlpool Microwave Screw
51	WP3406797 Whirlpool Toe Panel
52	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
