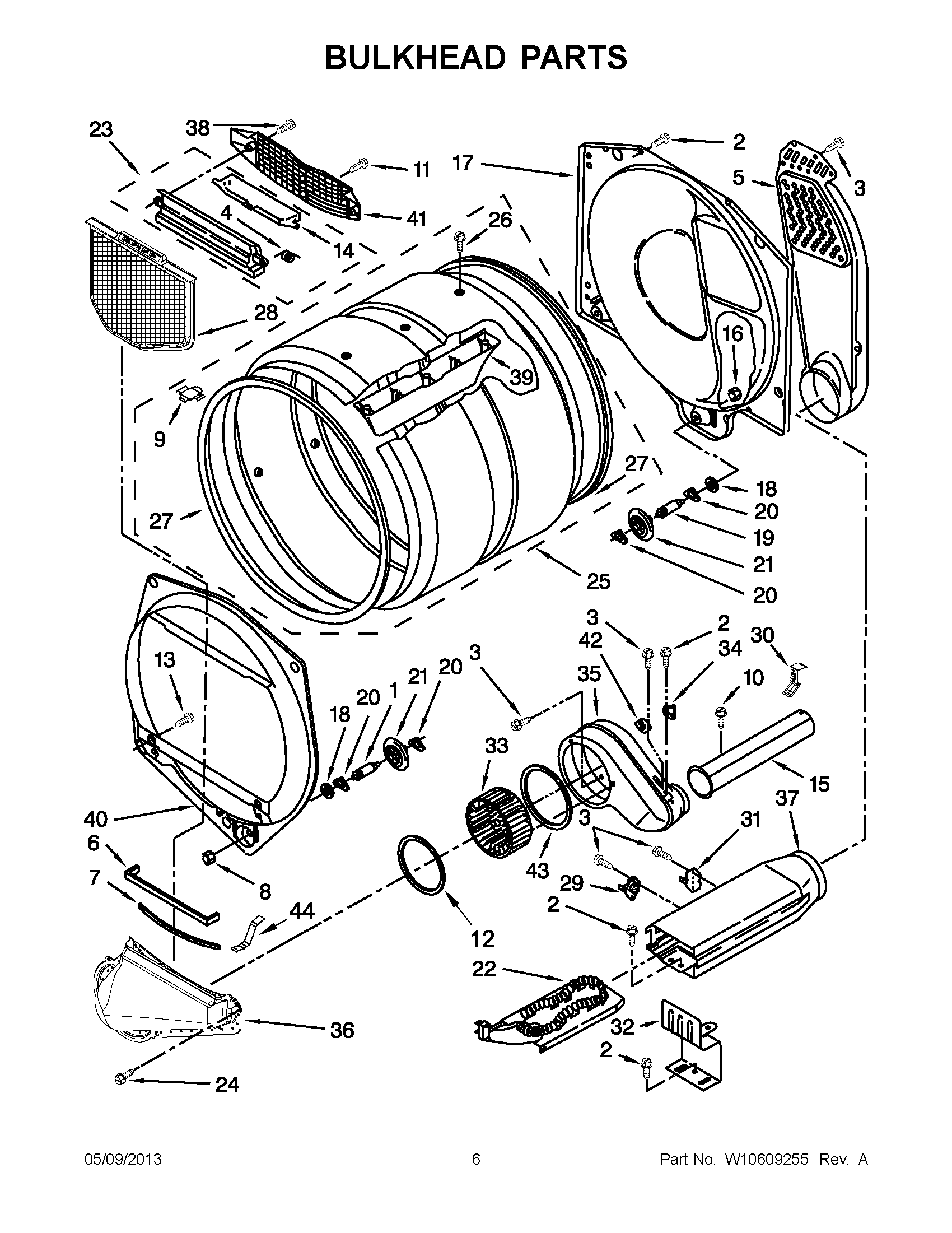

3LWED4800YQ2 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
4	WP3394986 Whirlpool Spring
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	W10665050 Whirlpool Plug
10	WP90767 Whirlpool Screw
12	FOAM-SEAL
13	WP3387230 Whirlpool Screw
14	W10181925 Whirlpool Door
15	PIPE, EXHAUST
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	ELEMENT
23	W11197085 Whirlpool Outer Housing
24	WP489463 Whirlpool Refrigerator Screw
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	W10120998 Whirlpool Dryer Lint Screen Filter
29	WPW10168175 Whirlpool Thermostat
30	W11684573 Whirlpool Clip Assembly
31	W10154212 Whirlpool Thermal Cutoff
32	8066099 Whirlpool Bracket
33	WHEEL
34	WPW10168174 Whirlpool Thermostat
35	WP8544363 Whirlpool Housing
36	WPW10128606 Whirlpool Lint Duct
37	W10802681 Whirlpool Box Assembly
38	WP308685 Whirlpool Microwave Screw
39	WPW10113136 Whirlpool Drum Baffle
40	WP697557 Whirlpool Bulkhead Assembly
41	W11086603 Whirlpool Dryer Link Screen Air Grille
42	WPW10167627 Whirlpool Thermal Cutoff
43	WP697770 Whirlpool Blower Cover Plate Seal
44	WP8066208 Whirlpool Clip
