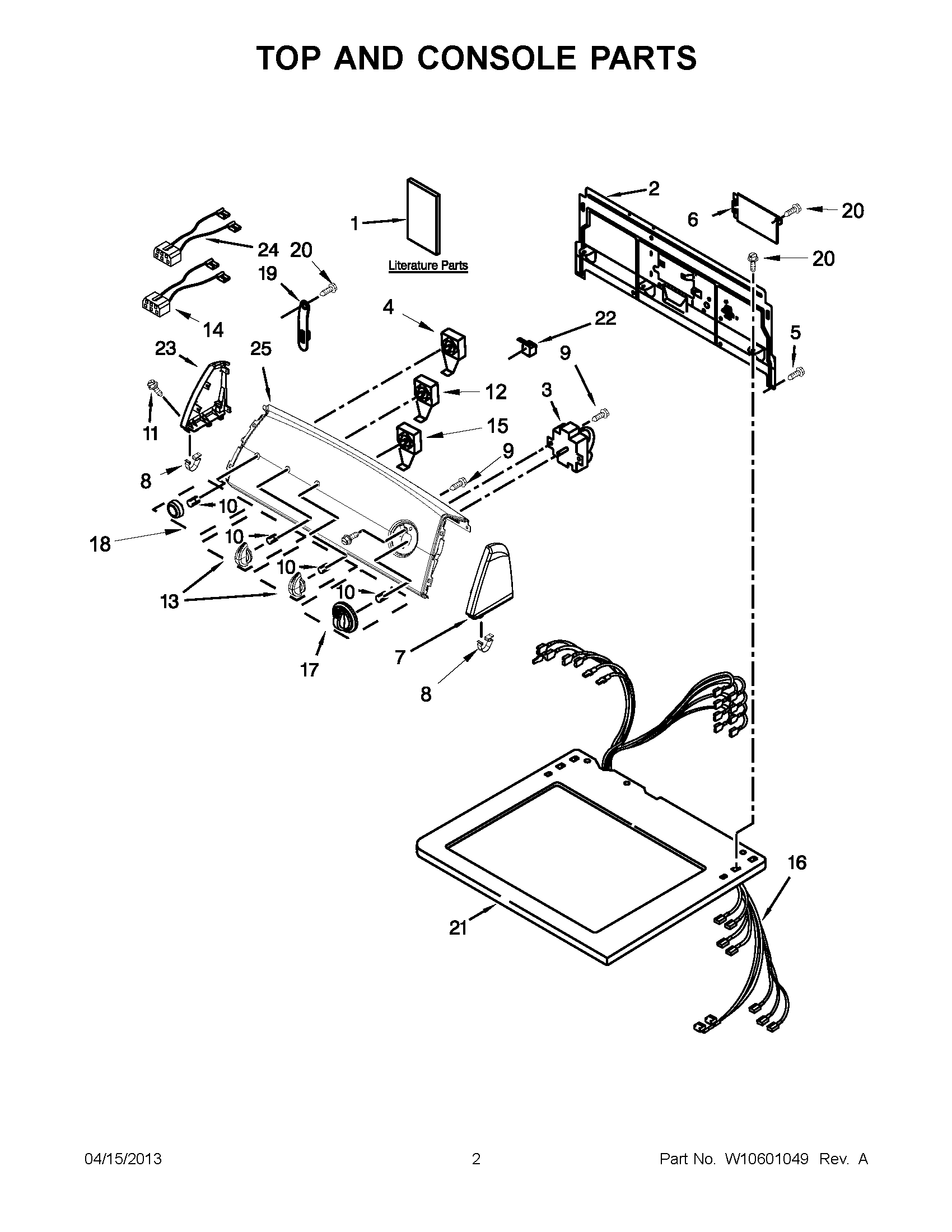

3LWED4900YW2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1	WIRING DIAGRAM
1	INSTALLATION INSTRUCTIONS
2	W10121161 Whirlpool Rear Panel
3	WPW10116281 Whirlpool Timer
4	W10238464 Whirlpool Relay Parts
5	WP3400818 Whirlpool Screw
6	WPW10119283 Whirlpool Terminal Cover
7	WP8565954 Whirlpool Endcap
8	WP8312709 Whirlpool Endcap Clip
9	WP90767 Whirlpool Screw
10	WP8536939 Whirlpool Spring Clip
11	303776 Whirlpool Dishwasher Screw
12	W10168170 Whirlpool Switch
13	Knob, Control (3)
14	ASSEMBLY, JUMPER WIRE
15	W11235848 Whirlpool Switch
16	HARNESS, MAIN
17	TIMER KNOB ASSEMBLY
18	WPW10034790 Whirlpool Knob
19	WP8568314 Whirlpool Strap
20	WP488729 Whirlpool Refrigerator Door Screw
21	TOP (WHITE)
22	Buzzer, Mini
23	WP8565957 Whirlpool Endcap Assembly
24	Wire, Jumper (Guard On/Off)
25	CONSOLE (WHITE)
