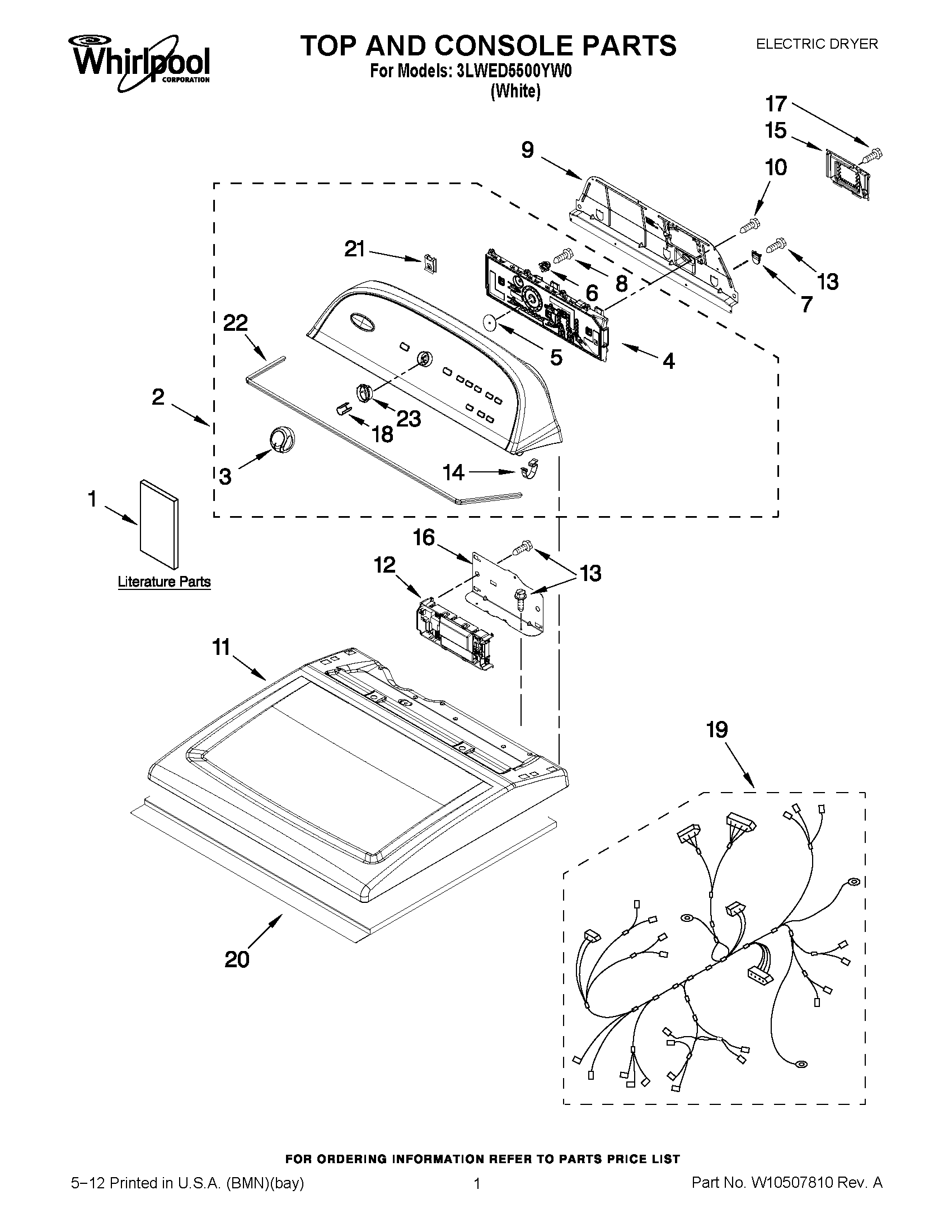

3LWED5500YW0 01 – TOP AND CONSOLE PARTS

3LWED5500YW0 01 – TOP AND CONSOLE PARTS

Written by

in

3LWED5500YW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1GUIDE, USE & CARE
1INSTALLATION INSTRUCTIONS
2ASSEMBLY, CONSOLE (COMPLETE)
3WPW10251392 Whirlpool Knob
4WPW10362634-includeCORE Whirlpool WPW10362634 Refrigerator Electronic Control Board + Core
5W10323092 Whirlpool Seal
6W10274524 Whirlpool Grommet
7W10279552 Whirlpool Plug
8W10853898 Whirlpool Screw
9W10096969 Whirlpool Rear Panel
11TOP (WHITE)
12WPW10346523-includeCORE Whirlpool WPW10346523 Refrigerator Electronic Control Board + Core
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15Cover, Terminal Block
16W10271580 Whirlpool Mount
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19HARNESS, MAIN
20W10123956 Whirlpool Sound Absorber
21W11213336 Whirlpool Nut
22W10280079 Whirlpool Seal
23W10325119 Whirlpool Spacer
