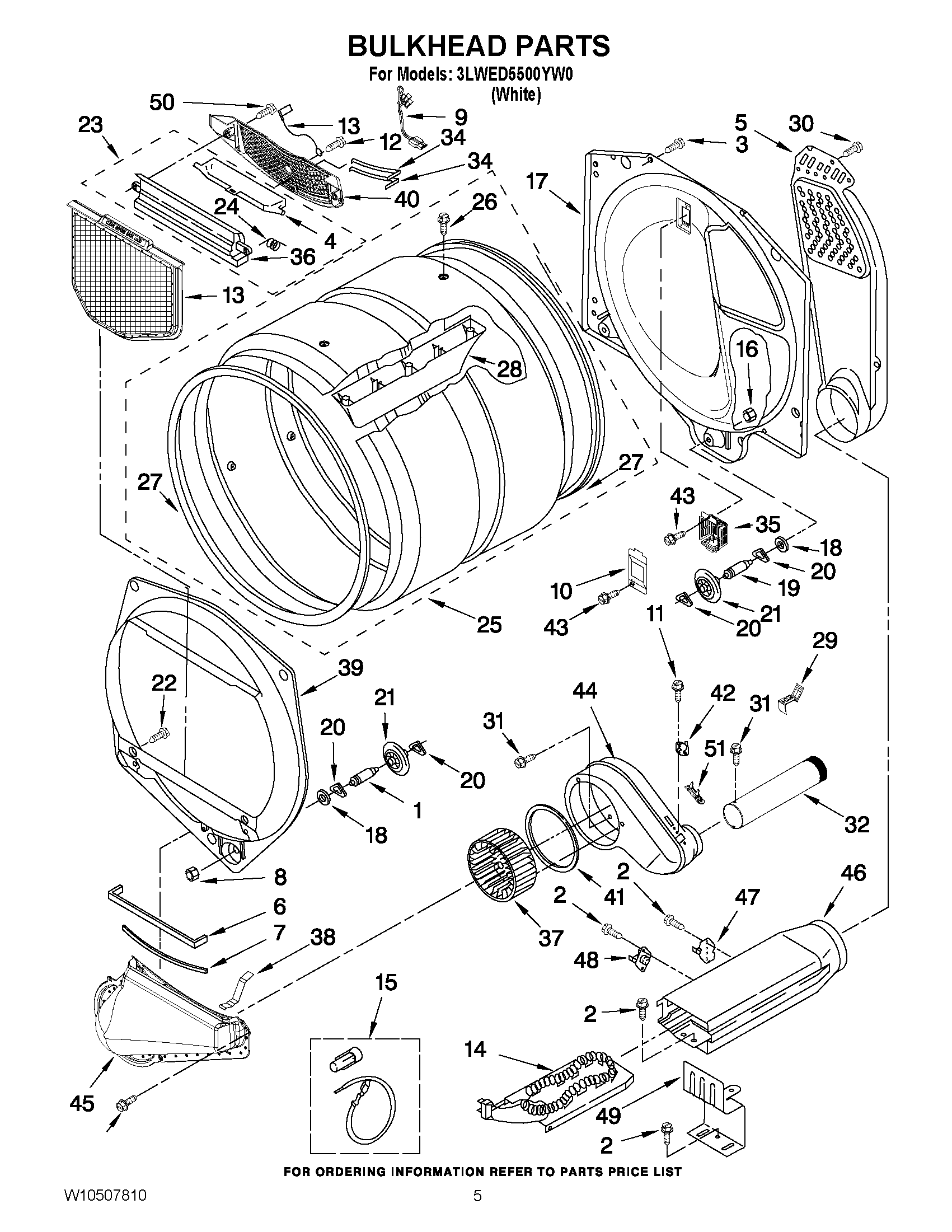

3LWED5500YW0 03 – BULKHEAD PARTS

3LWED5500YW0 03 – BULKHEAD PARTS

Written by

in

3LWED5500YW0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
3	WP488729 Whirlpool Refrigerator Door Screw
4	W11222846 Whirlpool Door
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	WPW10298258 Whirlpool Wire Harness
10	W11226088 Whirlpool Lens Assembly
12	W11693756 Whirlpool Screw Assembly
13	W10120998 Whirlpool Dryer Lint Screen Filter
14	ELEMENT
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11299301 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
23	W11219327 Whirlpool Grille Outlet
24	WP3394986 Whirlpool Spring
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WPW10113136 Whirlpool Drum Baffle
29	W11684573 Whirlpool Clip Assembly
30	WP90767 Whirlpool Screw
31	WP489463 Whirlpool Refrigerator Screw
32	PIPE, EXHAUST
33	W10665050 Whirlpool Plug
34	WP3387223 Whirlpool Electrode Assembly
35	8578825 Whirlpool Bracket
36	W11129408 Whirlpool Out Housing
37	WP697772 Whirlpool Dryer Blower Wheel
38	WP8066208 Whirlpool Clip
39	WP697557 Whirlpool Bulkhead Assembly
40	W11086603 Whirlpool Dryer Link Screen Air Grille
41	WP697770 Whirlpool Blower Cover Plate Seal
42	WP8577274 Whirlpool Dryer Thermistor
43	WP693995 Whirlpool Screw
44	WP8544363 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	W10802681 Whirlpool Box Assembly
47	W10154212 Whirlpool Thermal Cutoff
48	WPW10168175 Whirlpool Thermostat
49	8066099 Whirlpool Bracket
50	WP308685 Whirlpool Microwave Screw
51	WPW10167627 Whirlpool Thermal Cutoff
