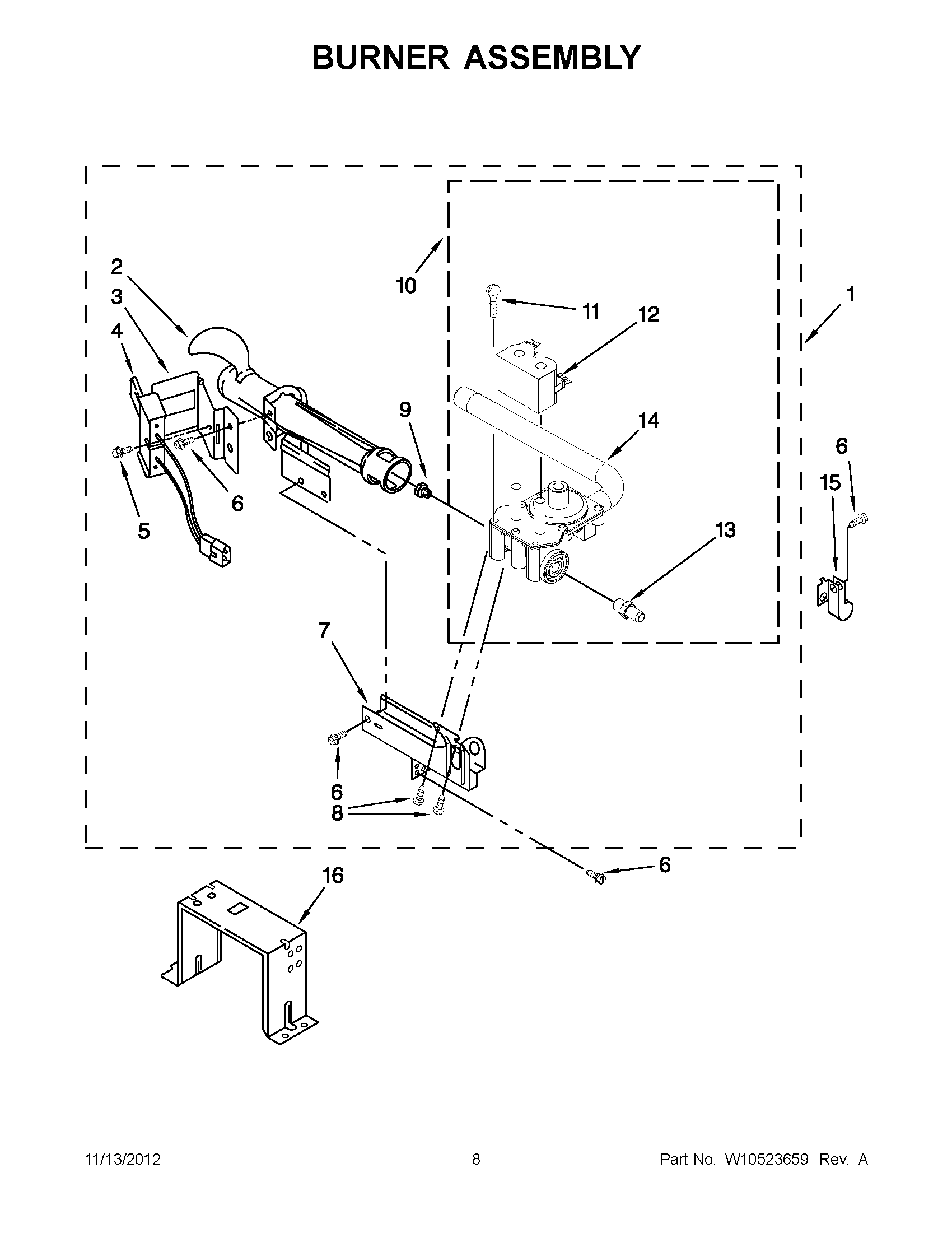

3LWGD4800YQ0 04 – BURNER ASSEMBLY

Products

Position	Product
NI	W10571757 Whirlpool Dryer LP Gas Conversion Kit
NI	CABINET (NOT A SERVICEABLE PART)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP234868 Whirlpool Gas Orifice
9	ORIFICE, BURNER TYPE 1
10	W10096909 Whirlpool Gas Burner
11	326049536 Whirlpool Screw
12	COIL, 50 HZ.
13	TAP, PRESSURE
14	W10097610 Whirlpool Pipe
15	3387561 Whirlpool Clamp
16	Bracket, Support
