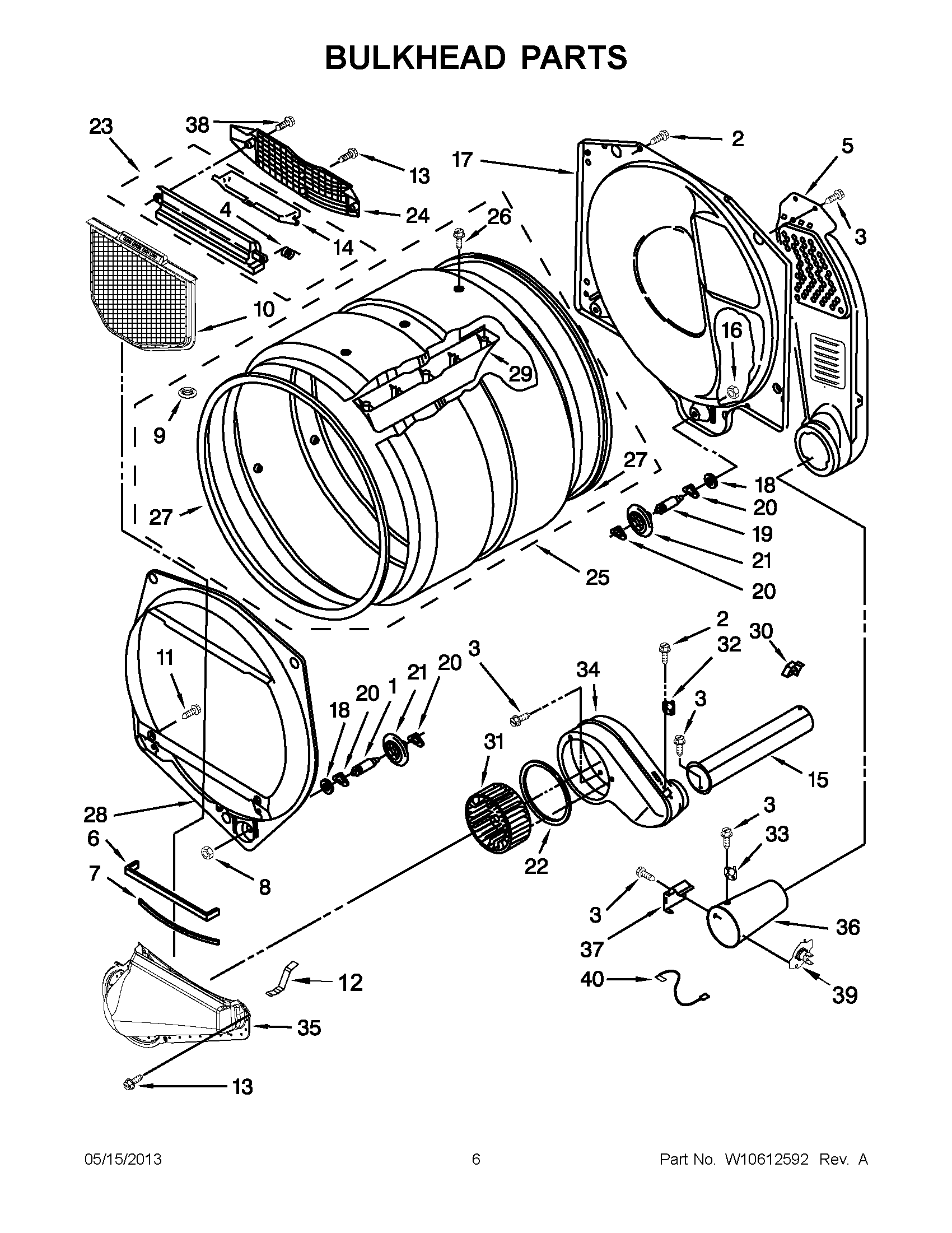

3LWGD4800YQ2 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	WP90767 Whirlpool Screw
4	WP3394986 Whirlpool Spring
5	W11168650 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	W10665050 Whirlpool Plug
10	W10120998 Whirlpool Dryer Lint Screen Filter
12	WP8066208 Whirlpool Clip
13	WP3387230 Whirlpool Screw
14	W10181925 Whirlpool Door
15	279936 Whirlpool Exhaust Pipe
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP697770 Whirlpool Blower Cover Plate Seal
23	W11197085 Whirlpool Outer Housing
24	W11086603 Whirlpool Dryer Link Screen Air Grille
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WP697557 Whirlpool Bulkhead Assembly
29	WPW10113136 Whirlpool Drum Baffle
30	W11684573 Whirlpool Clip Assembly
31	WHEEL
32	WPW10168174 Whirlpool Thermostat
33	W10853395 Whirlpool Thermostat
34	W10888146 Whirlpool Housing
35	WPW10128606 Whirlpool Lint Duct
36	WP8573824 Whirlpool Funnel
37	WP338906 Whirlpool Dryer Gas Sensor
38	WP308685 Whirlpool Microwave Screw
39	WPW10181549 Whirlpool Thermal Cutoff
40	WP3401707 Whirlpool Wire Assembly
