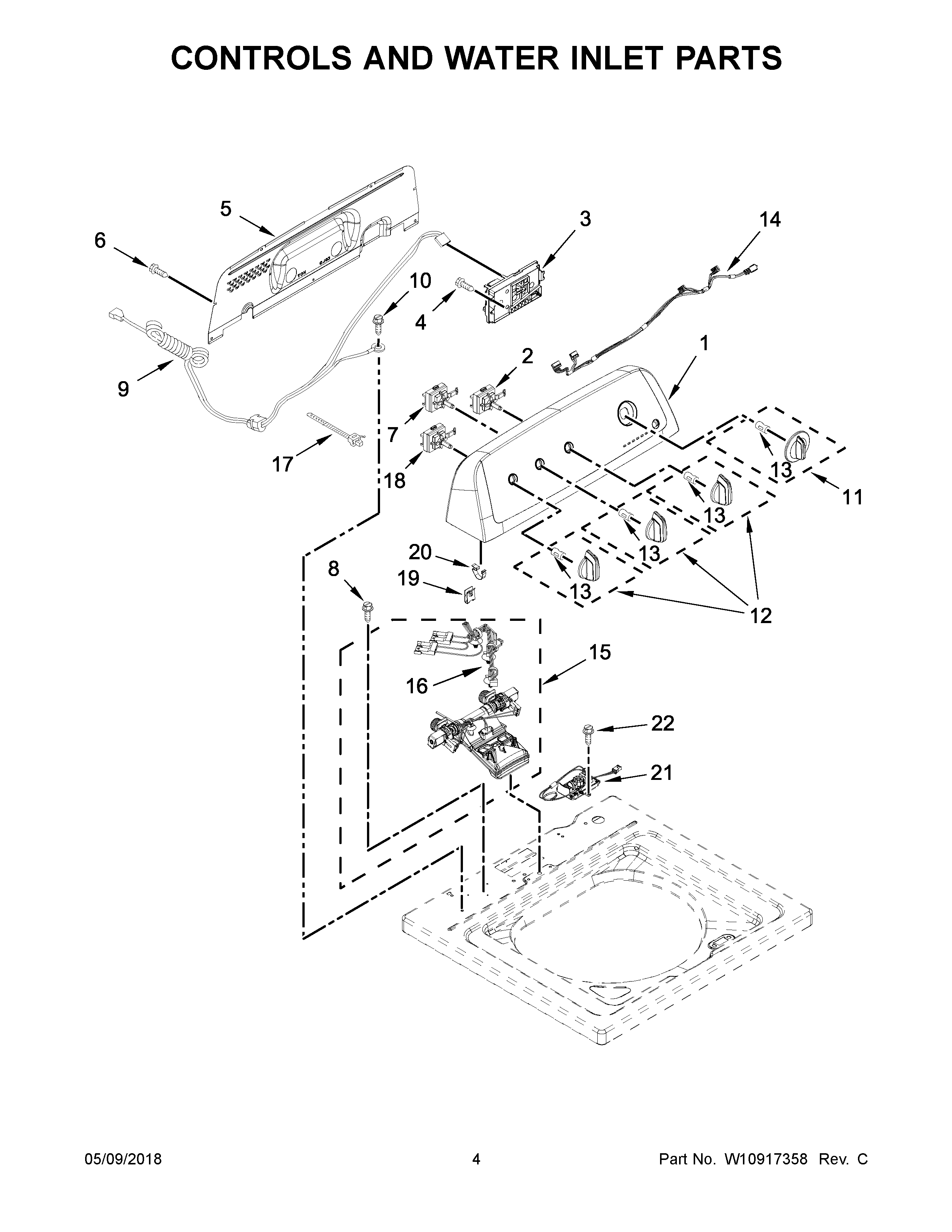

3LWTW4705FW0 03 – CONTROLS AND WATER INLET PARTS

3LWTW4705FW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

3LWTW4705FW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NIWPW10475423 Whirlpool Adapter
NIWPW10476820 Whirlpool Adapter
NIWPW10476822 Whirlpool Adapter
NICABINET (NOT A SERVICEABLE PART)
NI10A CORD LOCK
1PANEL, CONSOLE
2W11168256 Whirlpool Cycle Switch
3W11608066 Whirlpool Electronic Control Board + Core
4W10846509 Whirlpool Screw
5W10409320 Whirlpool Rear Panel
6W11685943 Whirlpool Screw
7WPW10414398 Whirlpool Cycle Switch
8WPW10213953 Whirlpool Screw
9CORD, UNIVERSAL POWER
10WPW10109200 Whirlpool Screw
11WPW10711289 Whirlpool Washer Control Knob Dryer
12WPW10453947 Whirlpool Knob
13WP8536939 Whirlpool Spring Clip
14W10694671 Whirlpool Wire Harness
15W11038628 Whirlpool Valve Assembly
16HARNESS, VALVE
17WPW10339879 Whirlpool Wire Tie
18WPW10414397 Whirlpool Cycle Switch
19W11213336 Whirlpool Nut
20WP8312709 Whirlpool Endcap Clip
21LINE FILTER ASSY
22W11568617 Whirlpool Screw
