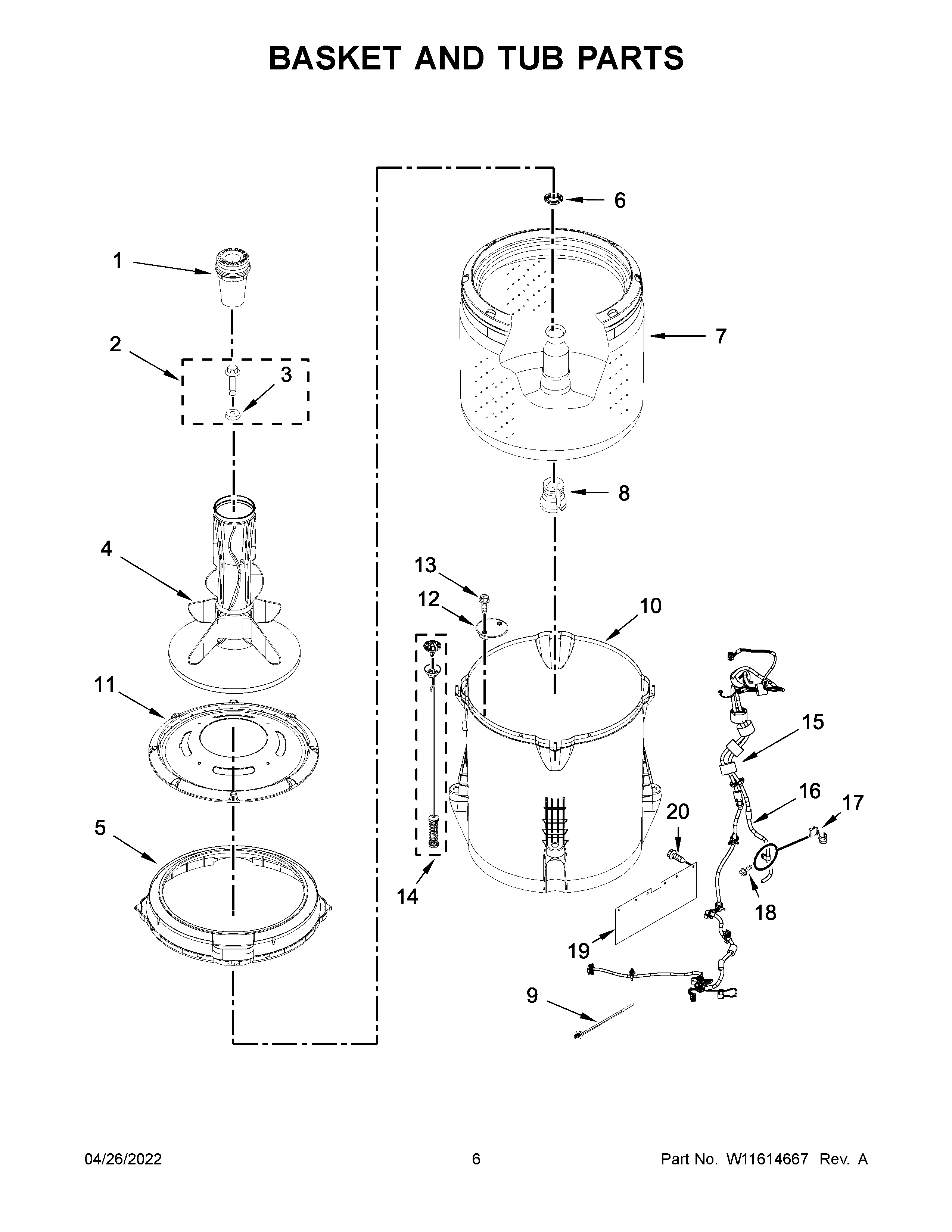

3LWTW4705FW1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	W11024702 Whirlpool Dispenser
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	AGITATOR
5	WPW10531289 Whirlpool Tub Ring
6	WP21366 Whirlpool Spanner Nut
7	W10554251 Whirlpool Basket
8	WP389140 Whirlpool Drive Block or Bell
9	WPW10298887 Whirlpool Wire Tie Assembly
10	W10371566 Whirlpool Outer Tub
11	W11085570 Whirlpool Shield
12	WPW10215093 Whirlpool Filter
13	WP8533928 Whirlpool Refrigerator Screw
14	W10780045 Whirlpool Suspension Rod
15	HARNS-WIRE
16	W10846364 Whirlpool Hose
17	CLIP
18	WPW10109200 Whirlpool Screw
19	W10339098 Whirlpool Shield
20	W10429200 Whirlpool Retainer
