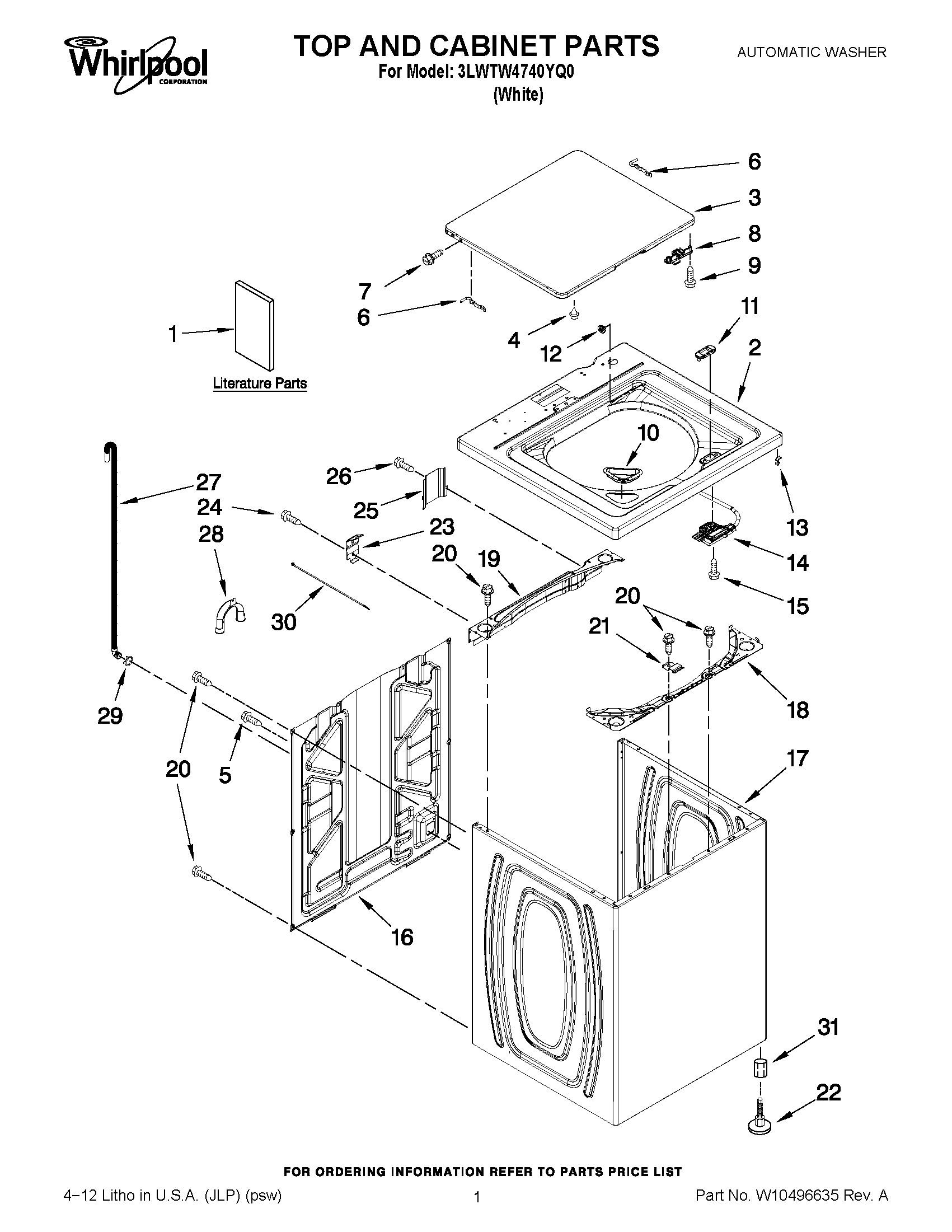

3LWTW4740YQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2	WPW10251299 Whirlpool Top Assembly
3	WPW10338625 Whirlpool Lid
4	WP9724509 Whirlpool Bumper
5	WP9740848 Whirlpool Dishwasher Screw
6	WP91770 Whirlpool Hinge
7	SCREW
8	WPW10240513 Whirlpool Strike
9	WPW10273971 Whirlpool Screw
10	WPW10192089 Whirlpool Washer Bleach Dispenser
11	WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12	WP21258 Whirlpool Washer Lid Hinge Bearing
13	WP90016 Whirlpool Clip
14	WPW10294102 Whirlpool Latch
15	WP8281163 Whirlpool Refrigerator Screw
16	W11486091 Whirlpool Rear Panel
17	W10596395 Whirlpool Cabinet
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	WP489069 Whirlpool Compactor Screw
21	WPW10248088 Whirlpool Lock
22	W10739673 Whirlpool Leveling Feet
23	W10432012 Whirlpool Hinge
24	WP489128 Whirlpool Refrigerator Screw
25	W10676061 Whirlpool Cover Assembly
26	W10846509 Whirlpool Screw
27	W11244231 Whirlpool Hose
28	WPW10280024 Whirlpool Retainer
29	WP356138 Whirlpool Hose Clamp
30	WPW10339879 Whirlpool Wire Tie
31	WP3359452 Whirlpool Nut
