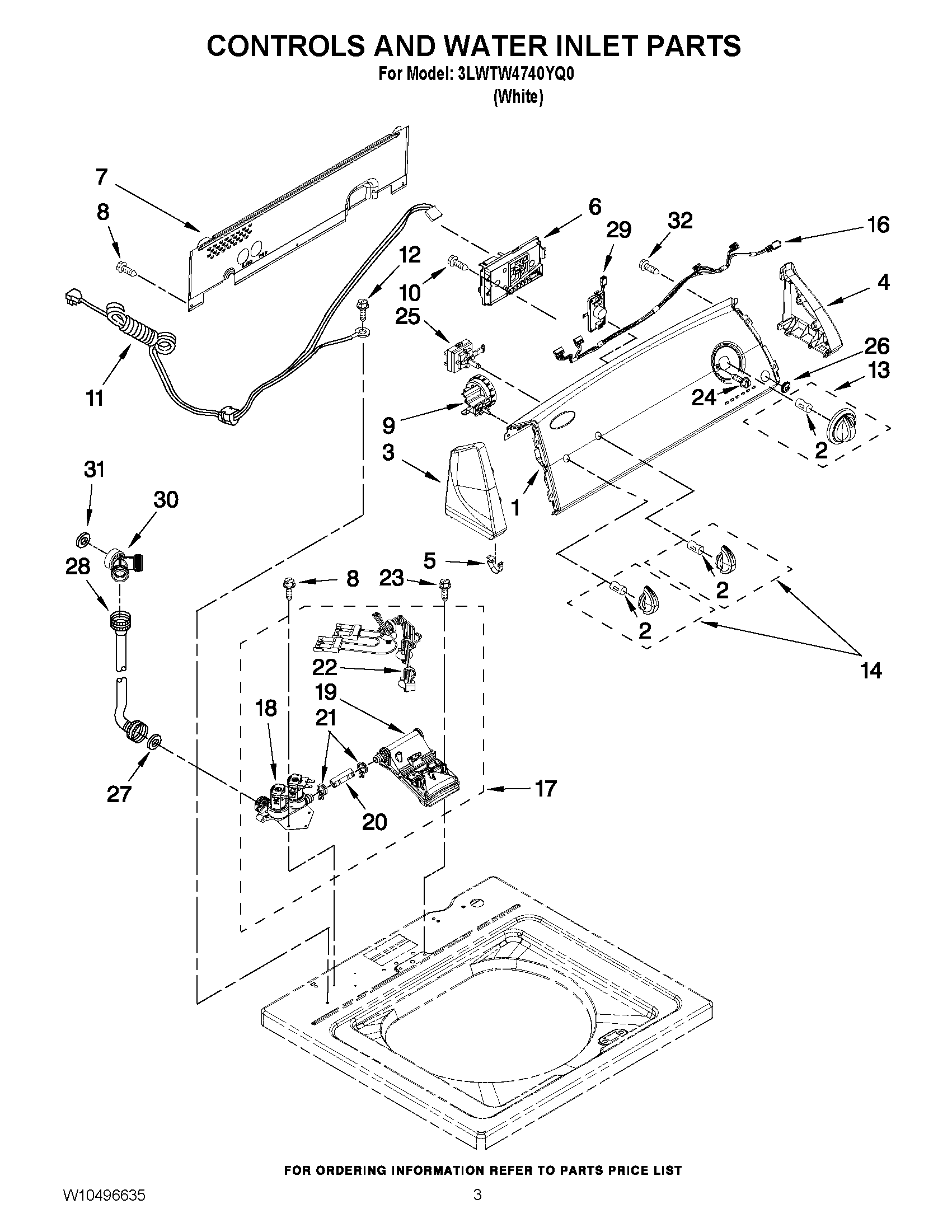

3LWTW4740YQ0 02 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	WPW10476822 Whirlpool Adapter
NI	10A CORD LOCK
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10476820 Whirlpool Adapter
NI	10A CORD ADAPTER (SOUTH AFRICA)
1	WPW10365091 Whirlpool Control Panel
2	WP8536939 Whirlpool Spring Clip
3	WP8565957 Whirlpool Endcap Assembly
4	WP8565954 Whirlpool Endcap
5	WP8312709 Whirlpool Endcap Clip
6	W10723435 Whirlpool Electronic Control Board + Core
7	WPW10420985 Whirlpool Rear Panel
8	WP489069 Whirlpool Compactor Screw
9	WPW10268910 Whirlpool Washer Water Level Switch
10	WP90767 Whirlpool Screw
11	CORD, POWER
12	W10846509 Whirlpool Screw
13	TIMER KNOB ASSEMBLY
14	Knob, Control (3)
16	W10291178 Whirlpool Wire Harness
17	INLET ASSEMBLY, WATER
18	WPW10465728 Whirlpool Valve
19	WPW10441423 Whirlpool Vacuum Breaker
20	W10238347 Whirlpool Hose Assembly
21	WP596669 Whirlpool Hose Clamp
22	W10474662 Whirlpool Wire Harness
23	WP8281163 Whirlpool Refrigerator Screw
24	WP3400818 Whirlpool Screw
25	WPW10285511 Whirlpool Cycle Switch
26	WPW10251309 Whirlpool Push Button
27	WP16123 Whirlpool Washer
28	WPW10615831 Whirlpool Fill Hose
28	WPW10615809 Whirlpool Fill Hose
29	W10522615 Whirlpool Filter
30	WPW10269488 Whirlpool Connector
31	WP3357450 Whirlpool Washer Assembly
32	3400073 Whirlpool Screw
