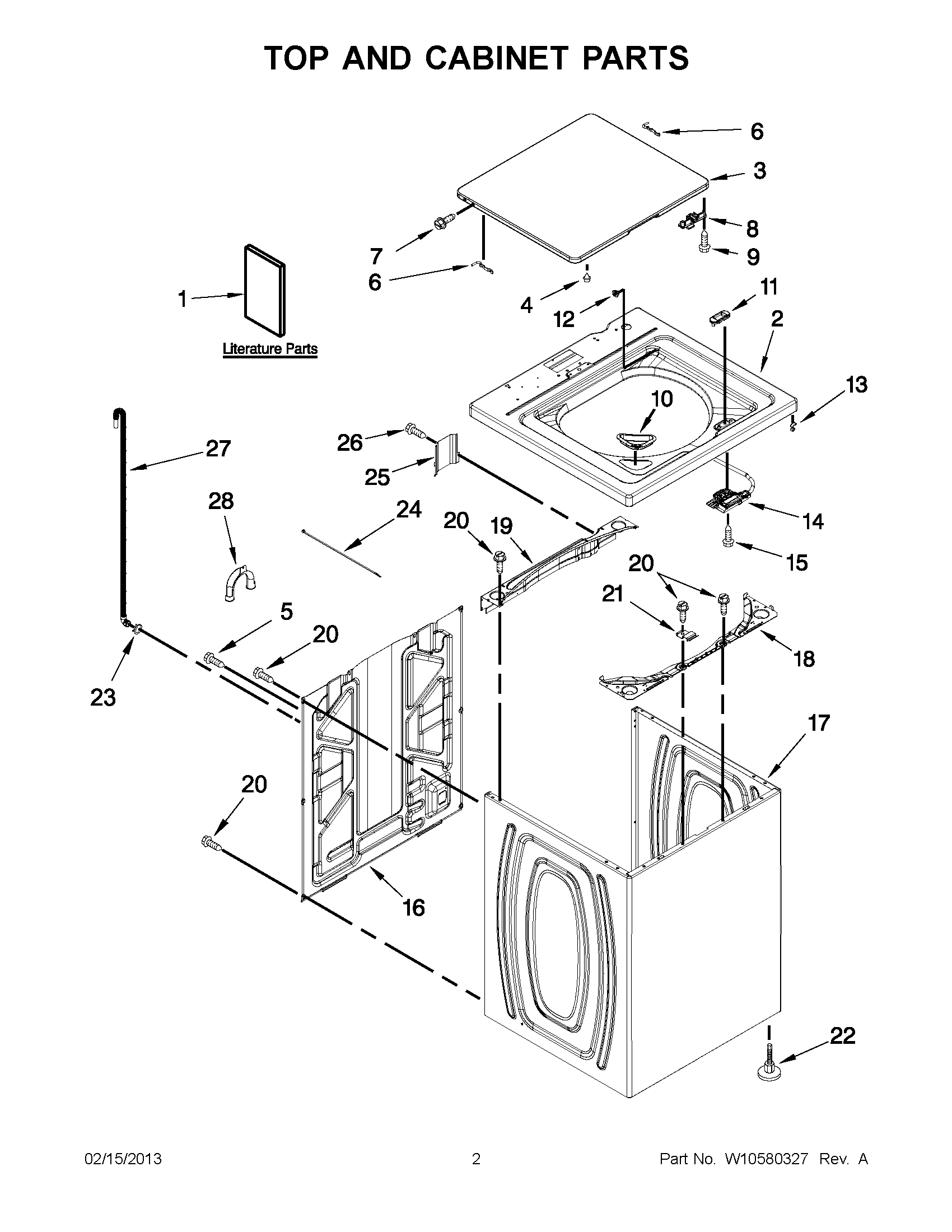

3LWTW4800YQ1 01 – TOP AND CABINET PARTS

3LWTW4800YQ1 01 – TOP AND CABINET PARTS

Written by

in

3LWTW4800YQ1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1TECH SHEET
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2WPW10251319 Whirlpool Top Assembly
3W10860912 Whirlpool Lid
4WP9724509 Whirlpool Bumper
5WP9740848 Whirlpool Dishwasher Screw
6WP91770 Whirlpool Hinge
7SCREW
8WPW10240513 Whirlpool Strike
9WPW10273971 Whirlpool Screw
10WPW10192089 Whirlpool Washer Bleach Dispenser
11WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12WP21258 Whirlpool Washer Lid Hinge Bearing
13WP90016 Whirlpool Clip
14WPW10294102 Whirlpool Latch
15WP8281163 Whirlpool Refrigerator Screw
16W11486091 Whirlpool Rear Panel
17W10596395 Whirlpool Cabinet
18W11695476 Whirlpool Brace Support
19W11712680 Whirlpool Commercial Part Brace
20WP489069 Whirlpool Compactor Screw
21WPW10248088 Whirlpool Lock
22WPW10687506 Whirlpool Washer Leveling Leg
23WP356138 Whirlpool Hose Clamp
24WPW10339879 Whirlpool Wire Tie
25W10676061 Whirlpool Cover Assembly
26W10846509 Whirlpool Screw
27W11244231 Whirlpool Hose
28WPW10280024 Whirlpool Retainer
