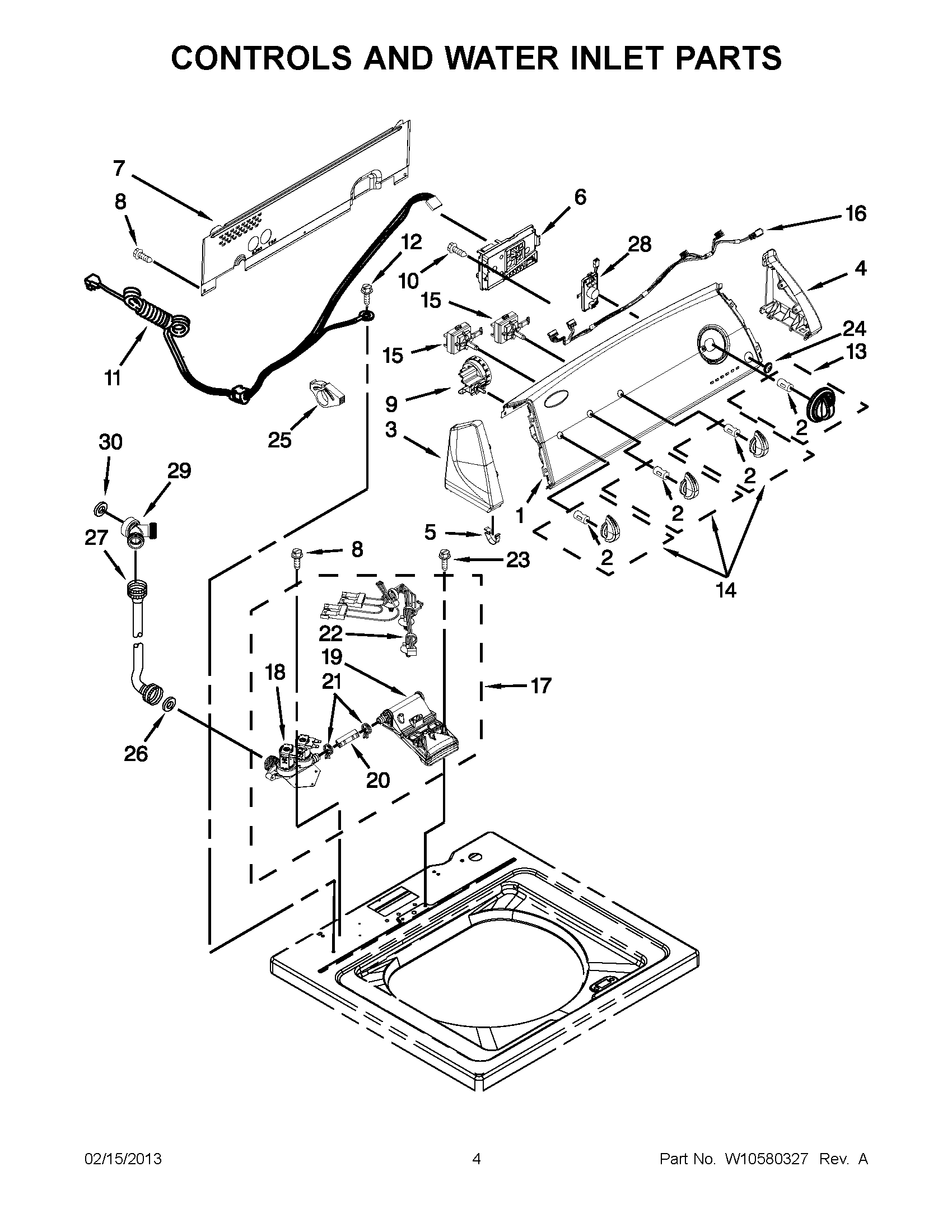

3LWTW4800YQ1 02 – CONTROLS AND WATER INLET PARTS

3LWTW4800YQ1 02 – CONTROLS AND WATER INLET PARTS

Written by

in

3LWTW4800YQ1 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1WPW10365092 Whirlpool Control Panel
2WP8536939 Whirlpool Spring Clip
3WP8565957 Whirlpool Endcap Assembly
4WP8565954 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W10723436 Whirlpool Electronic Control Board + Core
7WPW10420985 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10268911 Whirlpool Washer Water Level Switch
10WP90767 Whirlpool Screw
1110A CORD LOCK
11CORD, POWER
11WPW10476820 Whirlpool Adapter
11WPW10476822 Whirlpool Adapter
12W10846509 Whirlpool Screw
13TIMER KNOB ASSEMBLY
14Knob, Control (3)
15WPW10285512 Whirlpool Cycle Switch
16W10291174 Whirlpool Wire Harness
17INLET ASSEMBLY, WATER
18WPW10465728 Whirlpool Valve
19WPW10441423 Whirlpool Vacuum Breaker
20W10238347 Whirlpool Hose Assembly
21WP596669 Whirlpool Hose Clamp
22W10474662 Whirlpool Wire Harness
23WP8281163 Whirlpool Refrigerator Screw
24WPW10251309 Whirlpool Push Button
25WPW10663966 Whirlpool Washer Water Level Switch
26WP16123 Whirlpool Washer
27WPW10615831 Whirlpool Fill Hose
27WPW10615809 Whirlpool Fill Hose
28W10522615 Whirlpool Filter
29WPW10269488 Whirlpool Connector
30WP3357450 Whirlpool Washer Assembly
