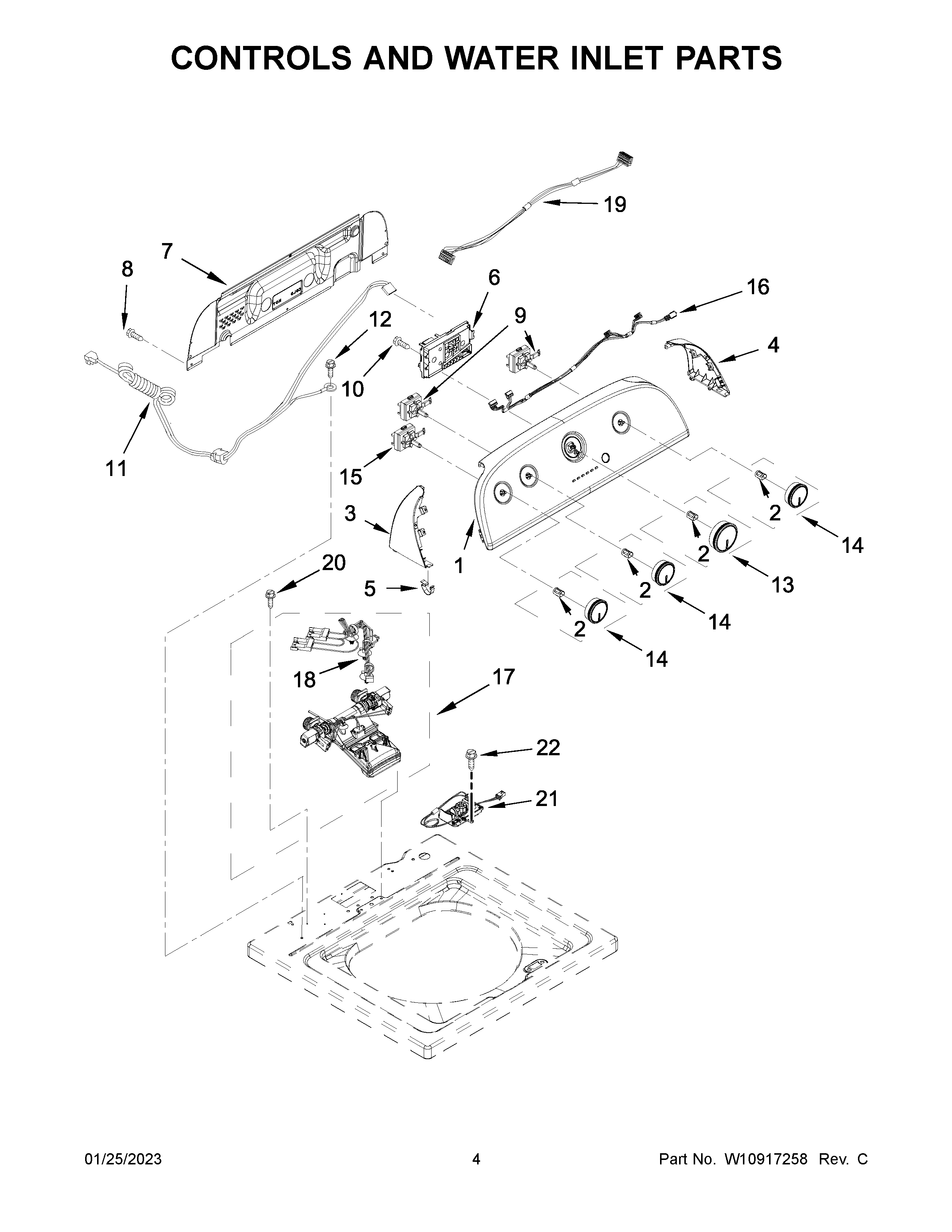

3LWTW4815FW0 03 – CONTROLS AND WATER INLET PARTS

3LWTW4815FW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

3LWTW4815FW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NIWPW10476822 Whirlpool Adapter
NI10A CORD ADAPTER (SOUTH AFRICA)
NIWPW10475423 Whirlpool Adapter
NI10A CORD LOCK
NIWPW10476820 Whirlpool Adapter
1W11099226 Whirlpool Control Panel
2WP8536939 Whirlpool Spring Clip
3END CAP (LEFT) (WHITE)
4END CAP (RIGHT) (WHITE)
5WP8312709 Whirlpool Endcap Clip
6WHIRLPOOL W11125032 CNTRL-ELEC+CORE
7W10552335 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10285512 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11W10834290 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W10756270 Whirlpool Dryer Timer Knob
15WPW10285517 Whirlpool Cycle Switch
16W10694682 Whirlpool Wire Harness
17W11038628 Whirlpool Valve Assembly
18HARNESS, VALVE
19W10786100 Whirlpool Wire Harness
20WPW10213953 Whirlpool Screw
21W11660637 Whirlpool Filter
22W11568617 Whirlpool Screw
