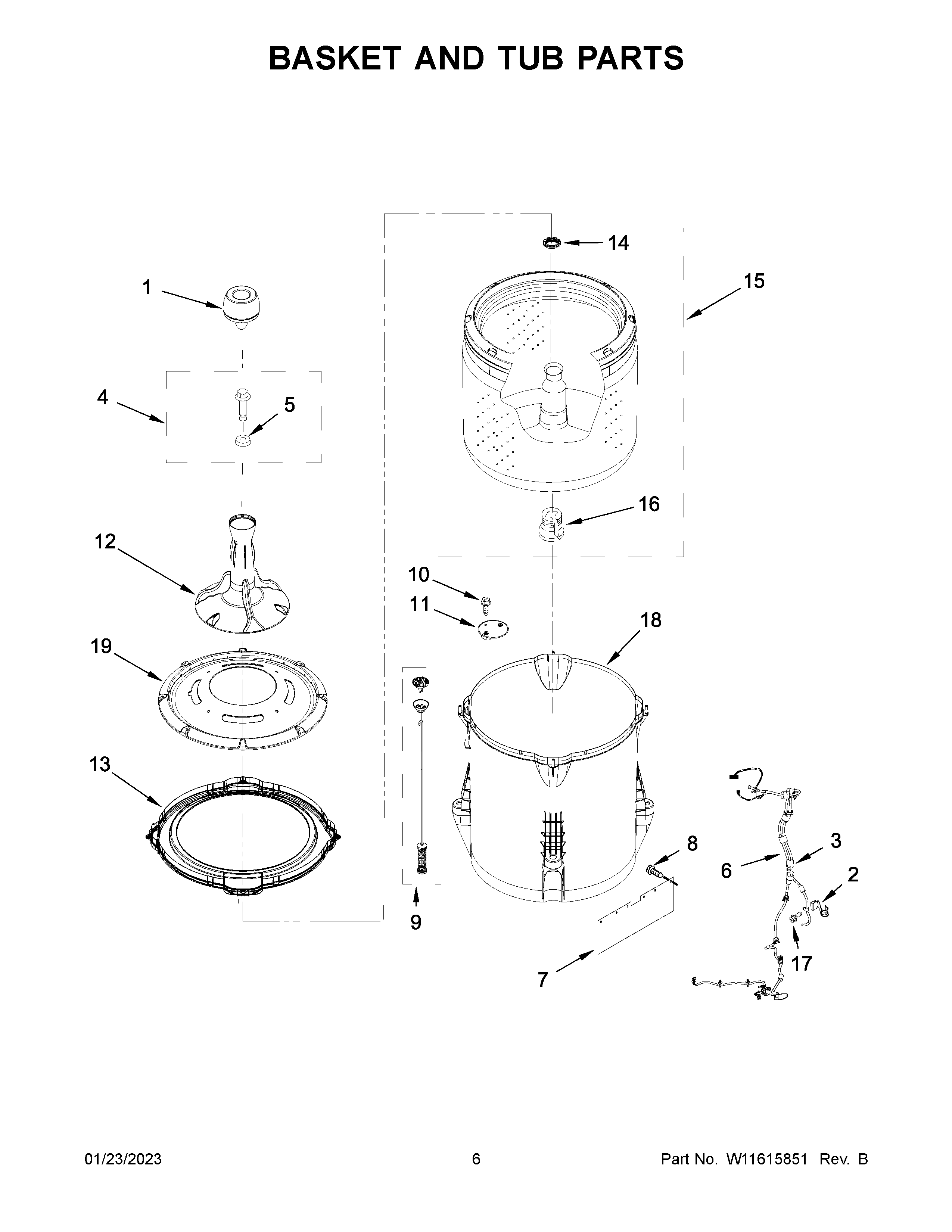

3LWTW4815FW1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	W11024702 Whirlpool Dispenser
2	CLIP
3	WP353244 Whirlpool Hose
4	W10772621 Whirlpool Washplate Screw
5	WP3949550 Whirlpool Gasket Assembly
6	HARNESS, LOWER
7	W10339098 Whirlpool Shield
8	W10429200 Whirlpool Retainer
9	W10780045 Whirlpool Suspension Rod
10	WP8533928 Whirlpool Refrigerator Screw
11	WPW10215093 Whirlpool Filter
12	AGITATOR
13	WPW10531289 Whirlpool Tub Ring
14	WP21366 Whirlpool Spanner Nut
15	W10554251 Whirlpool Basket
16	WP389140 Whirlpool Drive Block or Bell
17	WPW10109200 Whirlpool Screw
18	W10371566 Whirlpool Outer Tub
19	W11085570 Whirlpool Shield
