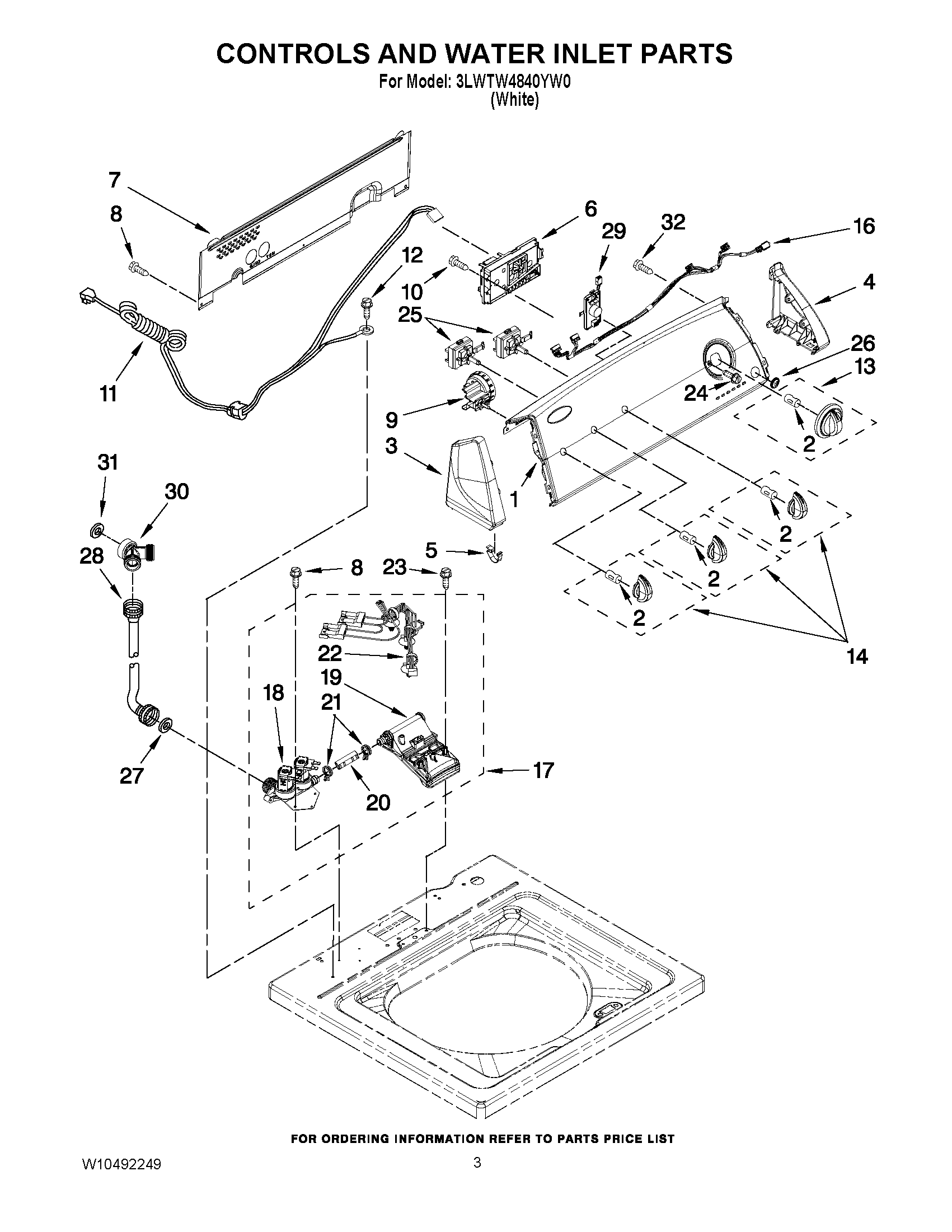

3LWTW4840YW0 02 – CONTROLS AND WATER INLET PARTS

3LWTW4840YW0 02 – CONTROLS AND WATER INLET PARTS

Written by

in

3LWTW4840YW0 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1WPW10464670 Whirlpool Console
2WP8536939 Whirlpool Spring Clip
3WP8565957 Whirlpool Endcap Assembly
4WP8565954 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W10835152-includeCORE Whirlpool W10835152 Refrigerator Electronic Control Board + Core
7WPW10420985 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10268911 Whirlpool Washer Water Level Switch
10WP90767 Whirlpool Screw
11CORD, POWER
12W10846509 Whirlpool Screw
13TIMER KNOB ASSEMBLY
14Knob, Control (3)
16W10291174 Whirlpool Wire Harness
17INLET ASSEMBLY, WATER
18WPW10465728 Whirlpool Valve
19WPW10441423 Whirlpool Vacuum Breaker
20W10238347 Whirlpool Hose Assembly
21WP596669 Whirlpool Hose Clamp
22W10474662 Whirlpool Wire Harness
23WP8281163 Whirlpool Refrigerator Screw
24WP3400818 Whirlpool Screw
25WPW10285512 Whirlpool Cycle Switch
26WPW10251309 Whirlpool Push Button
27WP16123 Whirlpool Washer
28WPW10615831 Whirlpool Fill Hose
28WPW10615809 Whirlpool Fill Hose
29W10522615 Whirlpool Filter
30WPW10269488 Whirlpool Connector
31WP3357450 Whirlpool Washer Assembly
323400073 Whirlpool Screw
