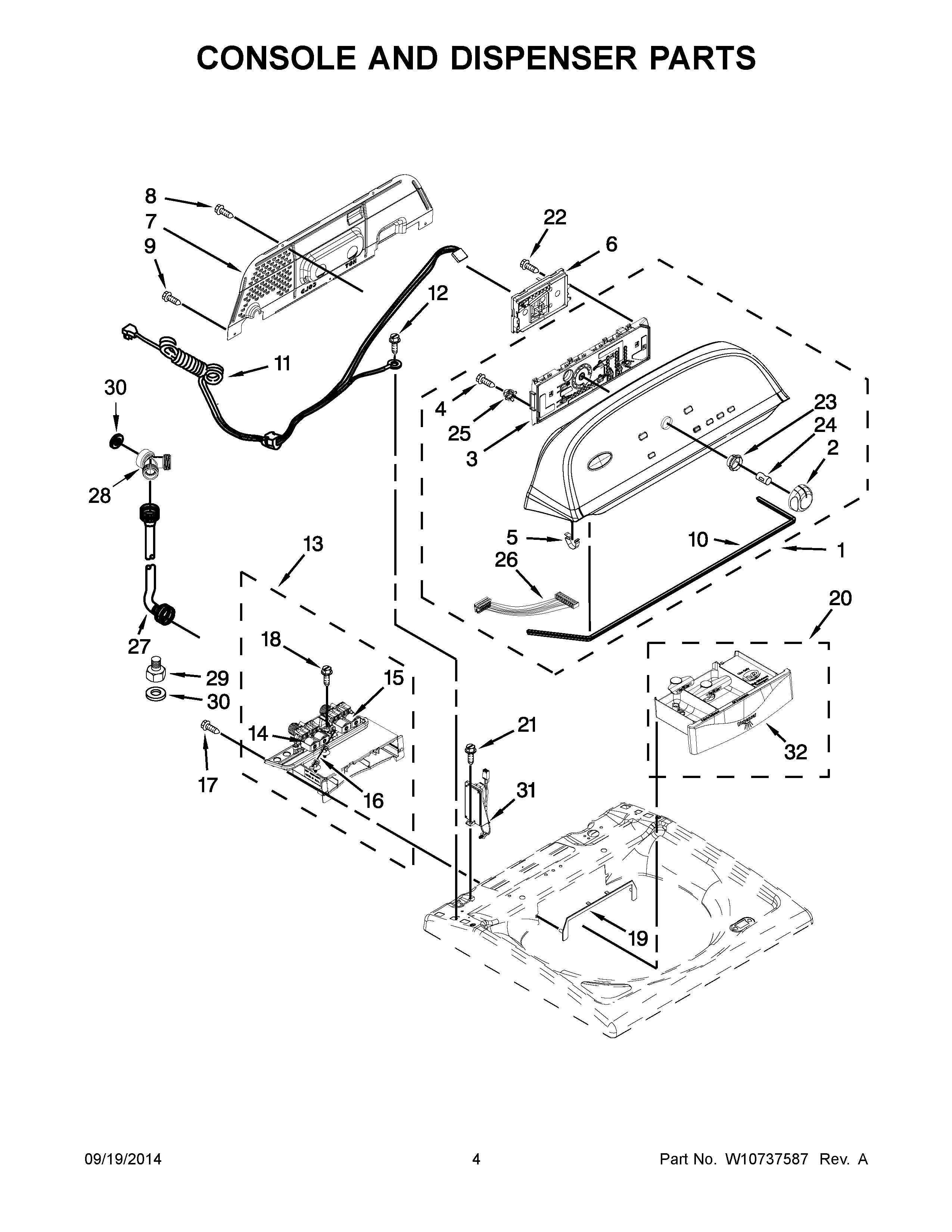

3LWTW5550YW2 03 – CONSOLE AND DISPENSER PARTS

Products

Position	Product
NI	WPW10476820 Whirlpool Adapter
NI	10A CORD LOCK
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10476822 Whirlpool Adapter
1	CONSOLE
2	WPW10251392 Whirlpool Knob
3	WPW10362632-includeCORE Whirlpool WPW10362632 Washer Electronic Control Board + Core
4	W10853898 Whirlpool Screw
5	WP8312709 Whirlpool Endcap Clip
6	W10480658 Whirlpool Electronic Control Board + Core
7	W10420984 Whirlpool Rear Panel
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP489069 Whirlpool Compactor Screw
10	W10280079 Whirlpool Seal
11	W10422754 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	HOUSING ASSEMBLY – DISPENSER
14	WPW10240976 Whirlpool Valve
15	WPW10240975 Whirlpool Valve
16	HARNESS, VALVE
17	W11700520 Whirlpool Screw
18	WPW10109200 Whirlpool Screw
19	BEZEL, DISPENSER
20	WPW10658443 Whirlpool Drawer
21	W11693756 Whirlpool Screw Assembly
22	WP9740848 Whirlpool Dishwasher Screw
23	W10325119 Whirlpool Spacer
24	WP8536939 Whirlpool Spring Clip
25	W10274524 Whirlpool Grommet
26	W10285493 Whirlpool Wire Harness
27	WPW10615809 Whirlpool Fill Hose
27A	WPW10615831 Whirlpool Fill Hose
28	WPW10269488 Whirlpool Connector
29	WP3357397 Whirlpool Adapter
30	WP3357450 Whirlpool Washer Assembly
31	FILTER, INTERFERENCE
32	WPW10287476 Whirlpool Handle
