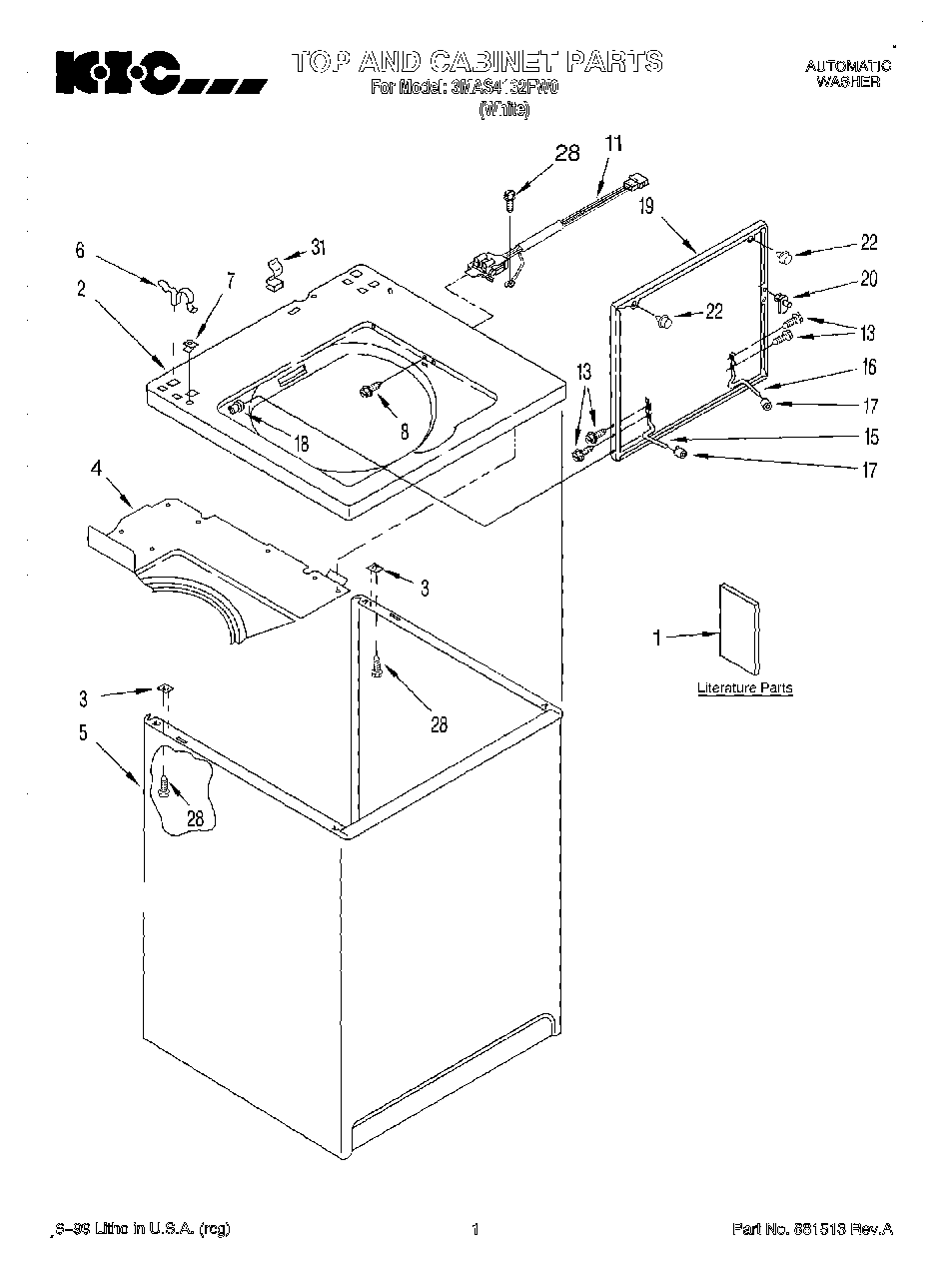

3MAS1432FW0 01 – TOP AND CABINET, LITERATURE

Products

Position	Product
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use And Care Guide)
1	Installation Instructions
2	Top
3	WP62750 Whirlpool Spacer
4	Shield, Lid Switch
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WP357213 Whirlpool Hinge Stopper
8	WP3356311 Whirlpool Screw
11	WP3950298 Whirlpool Lid Switch
13	SCREW
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
28	WP3390631 Whirlpool Screw
31	WP90016 Whirlpool Clip
