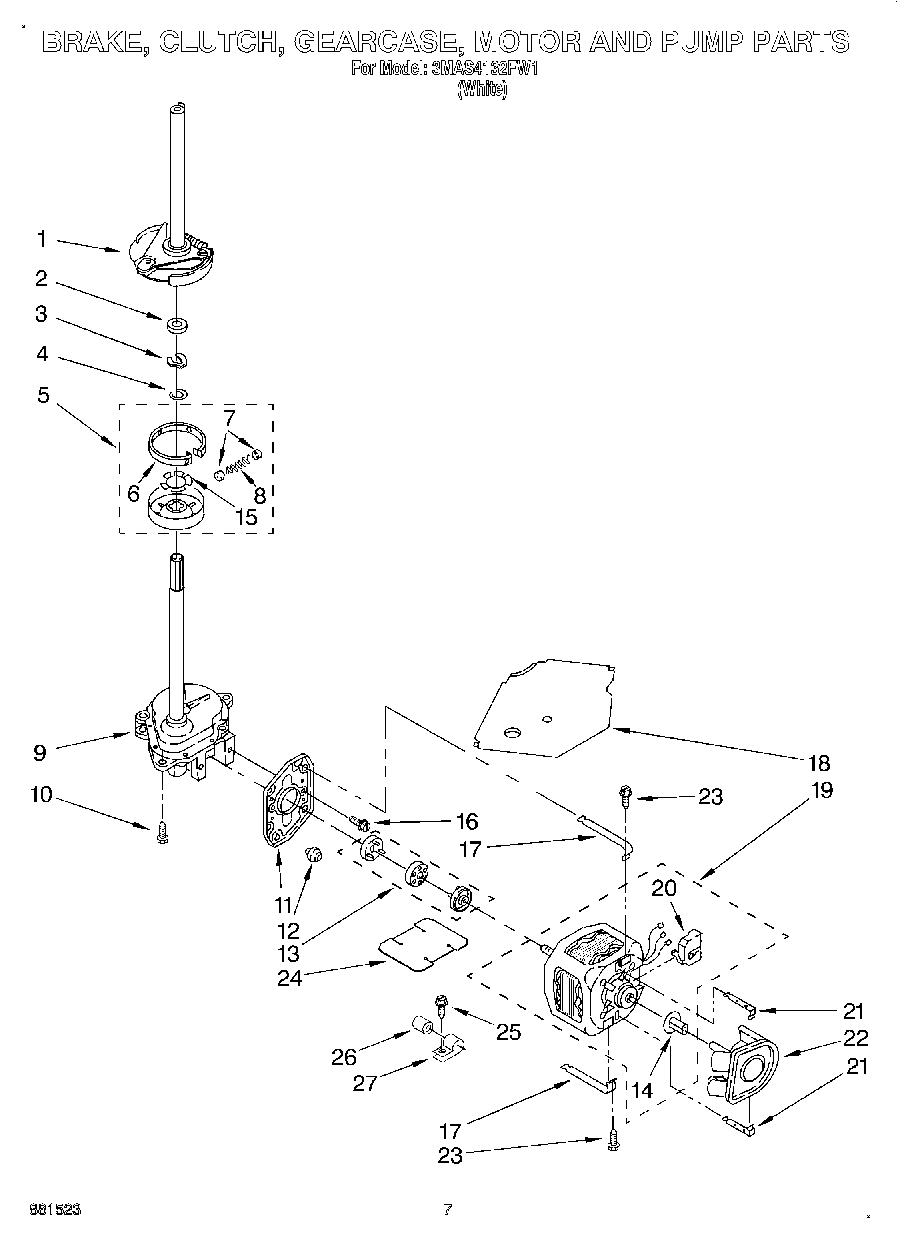

3MAS1432FW1 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMPadmin2025-04-26T10:56:05+00:003MAS1432FW1 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP ProductsPositionProduct1W10820043 Whirlpool Washer Drive and Brake Basket Assembly2WP63292 Whirlpool Washer3WPW10080230 Whirlpool Ring4285353 Whirlpool Ring5285785 Whirlpool Washer Direct Drive Clutch6285790 Whirlpool Washer Clutch Band and Lining Kit7WP62646 Whirlpool Cap8Spring, Clutch (Not Serviced)93363395 Whirlpool Gearcase11WP62611 Whirlpool Plate12WP62691 Whirlpool Grommet13285753A Whirlpool Washer Direct Drive Motor Coupling14Sleeve, Motor15Clip, Anti-Rattle16WP3400516 Whirlpool Screw17WPW10086010 Whirlpool Motor Retainer Clip18W10838408 Whirlpool Motor Shield19Motor, Main Drive20Switch, Main Drive Motor21WP8546127 Whirlpool Retainer Clip22WP3363892 Whirlpool Water Pump23WP273556 Whirlpool Screw24WP3946532 Whirlpool Shield25WP3390631 Whirlpool Screw26WP482156 Whirlpool Refrigerator Capacitor27Clamp, Capacitor
