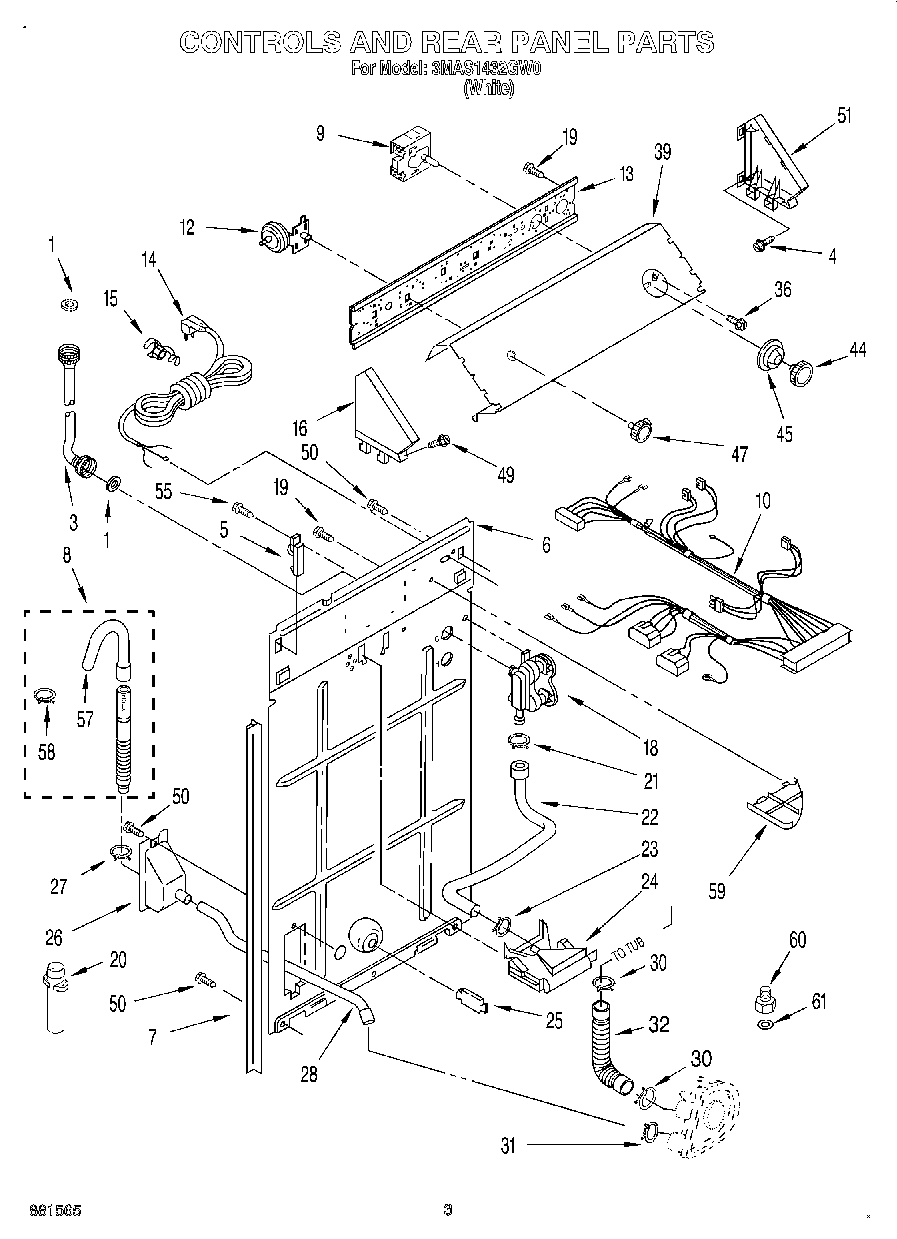

3MAS1432GW0 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
4WP90767 Whirlpool Screw
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
9Timer, Control (50 Hz.) (Motor Not A Service Part)
10W10113937 Whirlpool Clamp
10Harness, Wiring (For Detail See Parts Page)
12W10339228 Whirlpool Washer Water Level Switch
13WP3948608 Whirlpool Bracket
14Cord, Power
14W10080180 Whirlpool Nut
14WP308544 Whirlpool Screw
14W11170663 Whirlpool Washer
15Strain Relief, Power Cord
16Cap, End (L.H.)
18WP3360397 Whirlpool Valve
19WP3351614 Whirlpool Screw
203363920A Whirlpool Adapter Assembly
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Hose, Pump To Drain
30WP616099 Whirlpool Clamp
31WP371502 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
36W10915367 Whirlpool Screw Assembly
39Panel, Console
44WP3957823 Whirlpool Knob
45Dial, Timer
47KNOB
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51Cap , End (R.H.)
55WP308685 Whirlpool Microwave Screw
57WP3357027 Whirlpool Nozzle Assembly
58WP3357331 Whirlpool Clamp
59Shield, Inlet
60WP3357397 Whirlpool Adapter
61WP3357450 Whirlpool Washer Assembly
