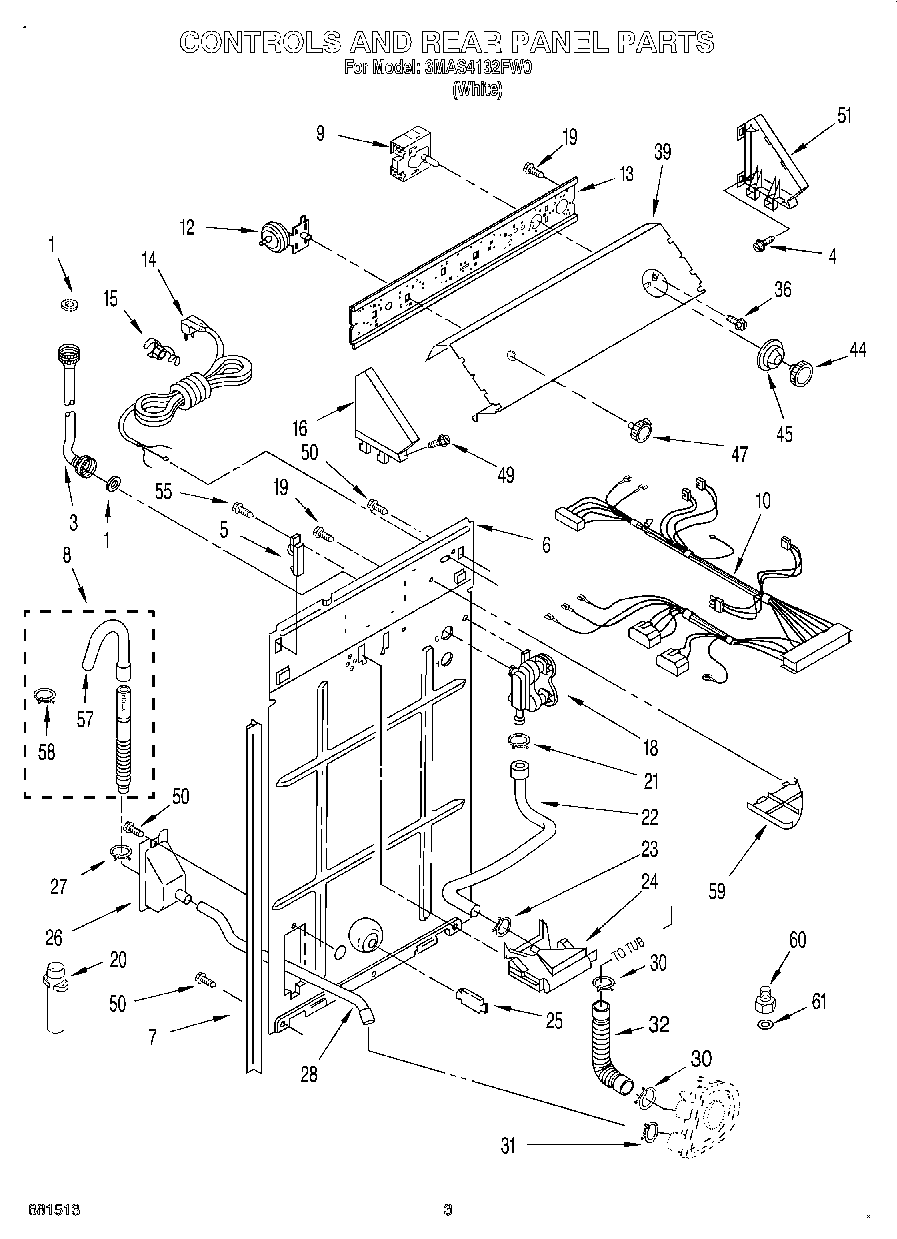

3MAS4132FW0 02 – CONTROLS AND REAR PANELadmin2025-04-26T10:57:15+00:003MAS4132FW0 02 – CONTROLS AND REAR PANEL
Products
| Position | Product |
|---|
| 1 | WP16123 Whirlpool Washer |
| 3 | WP89503 Whirlpool Washer Fill Hose |
| 4 | WP90767 Whirlpool Screw |
| 5 | Hinge, Console (2) |
| 6 | WP3357978 Whirlpool Rear Panel |
| 7 | WP62747 Whirlpool Pad |
| 8 | 285664 Whirlpool Drain Hose |
| 8 | 285666 Whirlpool Drain Hose 10' |
| 8 | 285702 Whirlpool Extensions |
| 9 | Timer, Control (50 Hz.) (Motor Not A Service Part) |
| 10 | Harness, Wiring (For Detail See Parts Page) |
| 12 | WP3356467 Whirlpool Washer Water Level Switch |
| 13 | WP3948608 Whirlpool Bracket |
| 14 | Cord, Power |
| 15 | Strain Relief, Power Cord |
| 16 | Cap, End (L.H.) |
| 18 | WP3360397 Whirlpool Valve |
| 19 | WP3351614 Whirlpool Screw |
| 20 | 3363920A Whirlpool Adapter Assembly |
| 21 | WP596669 Whirlpool Hose Clamp |
| 22 | HOSE |
| 24 | WP3360977 Whirlpool Washer Tub Fill Nozzle |
| 25 | WP8519200 Whirlpool Support Assembly |
| 26 | WPW10358149 Whirlpool Hose |
| 27 | WP356138 Whirlpool Hose Clamp |
| 28 | Hose, Pump To Drain |
| 30 | WP616099 Whirlpool Clamp |
| 31 | WP371502 Whirlpool Clamp |
| 32 | 285871 Whirlpool Hose and Clamp |
| 36 | W10915367 Whirlpool Screw Assembly |
| 39 | Panel, Console |
| 44 | WP3957823 Whirlpool Knob |
| 45 | Dial, Timer |
| 47 | KNOB |
| 49 | WP388326 Whirlpool Screw |
| 50 | WP3390631 Whirlpool Screw |
| 51 | Cap , End (R.H.) |
| 55 | WP488729 Whirlpool Refrigerator Door Screw |
| 57 | WP3357027 Whirlpool Nozzle Assembly |
| 58 | WP3357331 Whirlpool Clamp |
| 59 | Shield, Inlet |
| 60 | WP3357397 Whirlpool Adapter |
| 61 | WP3357450 Whirlpool Washer Assembly |
