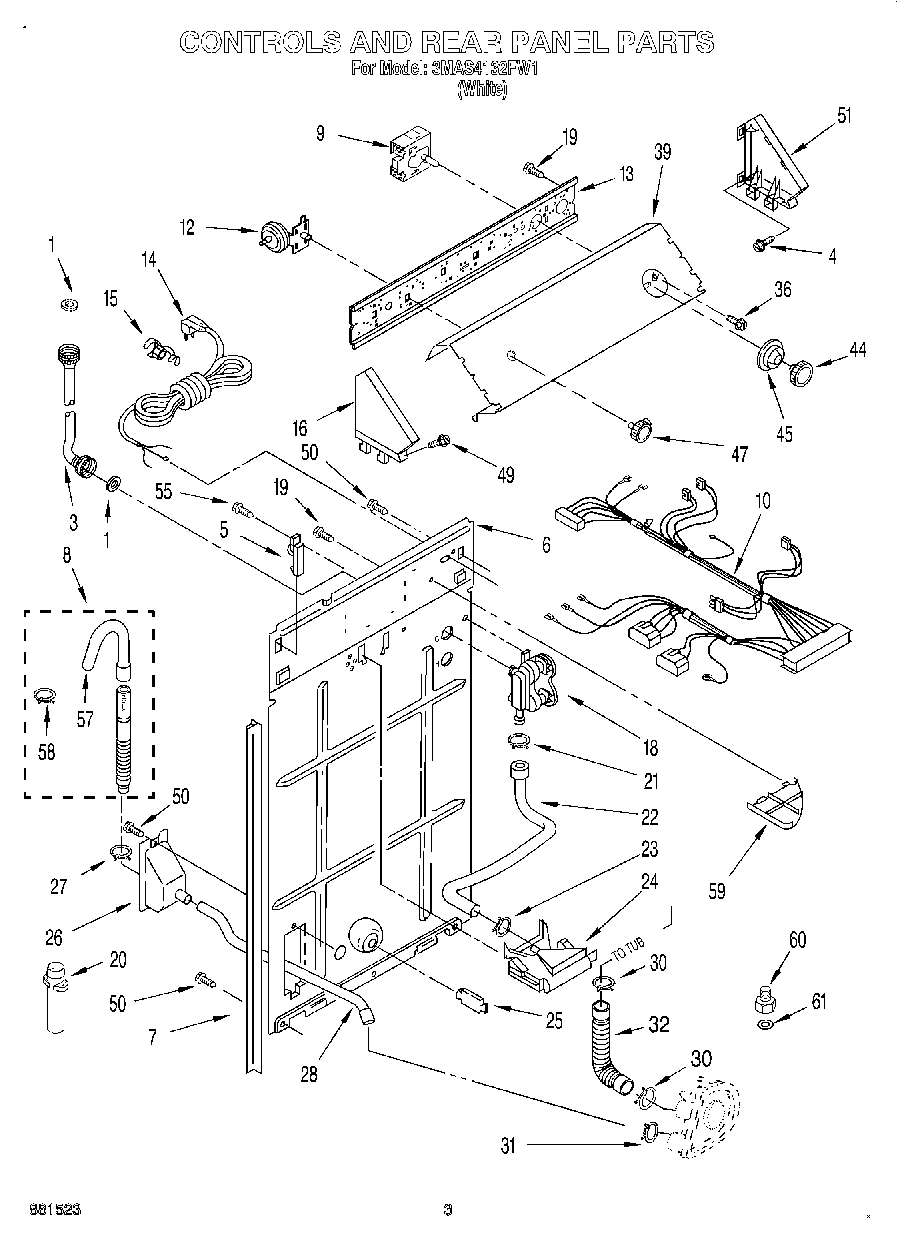

3MAS4132FW1 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
4	WP90767 Whirlpool Screw
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
8	285702 Whirlpool Extensions
9	Timer, Control (50 Hz.) (Motor Not A Service Part)
10	Harness, Wiring (For Detail See Parts Page)
12	W10339228 Whirlpool Washer Water Level Switch
13	WP3948608 Whirlpool Bracket
14	W10080180 Whirlpool Nut
14	Cord, Power
14	W11170663 Whirlpool Washer
14	WP308544 Whirlpool Screw
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
18	WP3360397 Whirlpool Valve
19	WP3351614 Whirlpool Screw
20	3363920A Whirlpool Adapter Assembly
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Hose, Pump To Drain
30	WP616099 Whirlpool Clamp
31	WP371502 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
36	W10915367 Whirlpool Screw Assembly
39	Panel, Console
44	WP3957823 Whirlpool Knob
45	Dial, Timer
47	KNOB
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap , End (R.H.)
55	WP488729 Whirlpool Refrigerator Door Screw
57	WP3357027 Whirlpool Nozzle Assembly
58	WP3357331 Whirlpool Clamp
59	Shield, Inlet
60	WP3357397 Whirlpool Adapter
61	WP3357450 Whirlpool Washer Assembly
