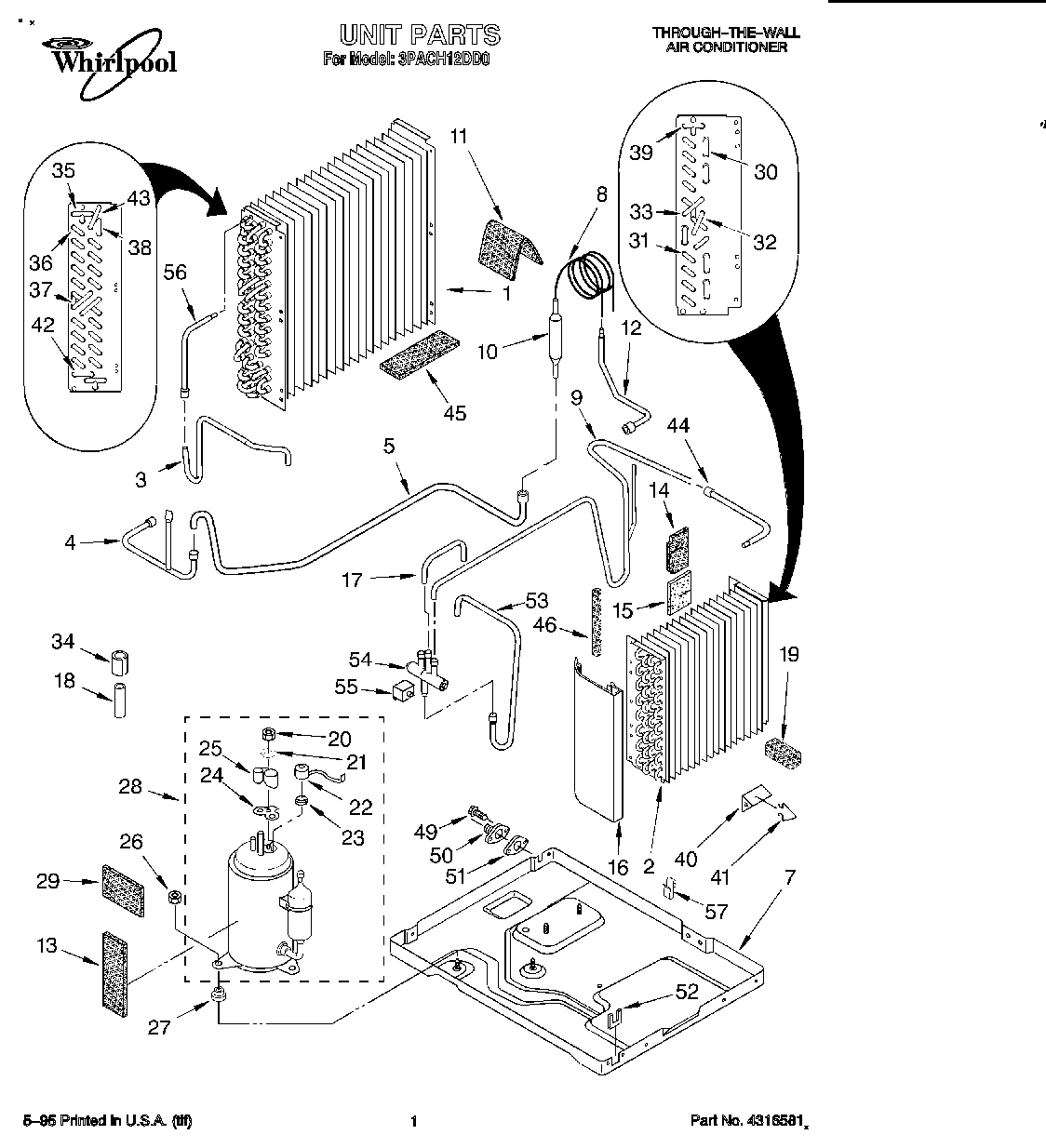

3PACH12DD0 01 – UNIT, LITERATURE

3PACH12DD0 01 – UNIT, LITERATURE

Written by

in

3PACH12DD0 01 – UNIT, LITERATURE

Products

PositionProduct
WPL LIT1180867
Wiring Diagram
Deluxe R
1Condenser
2Evaporator
3Tube, Condenser To Valve
4Tube, Process
5Tube, Wet Loop
7Base
8Tube, Restrictor (2 Required)
9Tube, Evaporator To Valve
10Strainer
11WPL 1162650
12Tube, Inlet (Row 3)
12Tube, Inlet (Row 1)
13Seal, Anti-Rub
14Seal, Suction Tube
15Seal, Inlet Tube
16Cover, Hair Pin
17Tube, Suction To Valve
18Dampener, Tube 1/2“
19Seal, Strip (Top Rear)
20WP950027 Whirlpool Mounting Nut
21Gasket, Nut
22Overload
23Spring, Overload
24WP950035 Whirlpool Cover Gasket
25WP950036 Whirlpool Cover Assembly
26Nut, 8MM
27WP950021 Whirlpool Grommet
28Compressor
29Seal, Compressor
30Bend, Return Evaporator (11)
31WP855199 Whirlpool Bend Return
32Bend, Return
33Bend, Return
34Dampener, Tube 1“
35Bend, 3-Way
36Bend, Return Condenser (10)
37Tube, Riser (2)
38Bend, Return Condenser (4)
39Bend, Tube (3-Way)
40Anticipator
41Clip, Anticipator
42Bend Return
43Bend, Return Condenser (1)
44Tube, Outlet
45Deflector, Water (Foam)
46Seal, Hairpin (Cover)
49Screw No.8
50Drain Plug
51Gasket, Drain Plug
52Protector, Cord
53Tube, Discharge To Valve
54Valve, Reversing
55Coil, Solenoid
56Tube, Condenser Transition
57Clamp, Restrictor Tube
