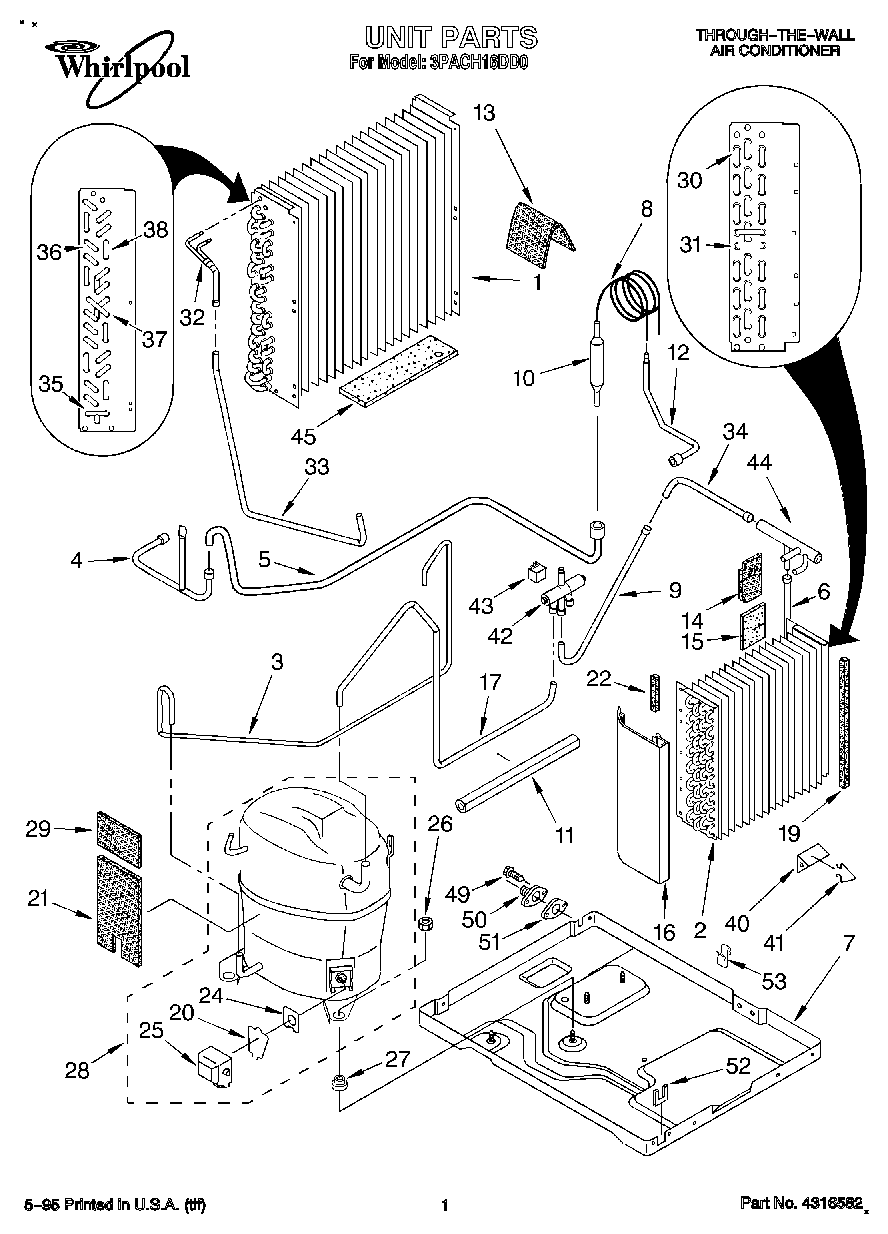

3PACH16DD0 01 – UNIT, LITERATUREadmin2025-04-26T10:56:26+00:003PACH16DD0 01 – UNIT, LITERATURE
Products
| Position | Product |
|---|
| Wiring Diagram |
| WPL LIT1180867 |
| Deluxe R |
| 1 | Condenser |
| 2 | Evaporator |
| 3 | Tube, Valve To Comp. Discharge |
| 4 | Tube, Process |
| 5 | Tube, Wet Loop |
| 6 | Tube, Outlet (Row 1) |
| 7 | Base |
| 8 | Tube, Restrictor (2 Required) |
| 9 | Tube, Valve To Evaporator |
| 10 | Strainer |
| 11 | Dampener, Tube 1/2`` |
| 12 | Tube, Inlet (Row 3) |
| 12 | Tube, Inlet (Row 2) |
| 12 | Tube, Inlet (Top Row 3) |
| 13 | Seal, Anti-Rub |
| 14 | Seal, Suction Tube |
| 15 | Seal, Inlet Tube |
| 16 | Cover, Hair Pin |
| 17 | Tube, Valve To Compressor Suction |
| 19 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 20 | Retainer, Terminal Cover |
| 21 | Seal (Compressor) |
| 22 | Seal (Cover) |
| 24 | Gasket, Terminal Cover |
| 25 | Cover, Terminal |
| 26 | Nut, 8MM |
| 27 | Grommet (3) |
| 28 | Compressor |
| 29 | Pad, Dampening |
| 30 | Bend, Return Evaporator (11) |
| 31 | Bend, Return (2) |
| 32 | Manifold (2 Circuit) |
| 33 | Tube, Valve To Condenser |
| 34 | Tube, Valve To Manifold |
| 35 | Bend, 3-Way |
| 36 | Bend, Return Condenser (10) |
| 37 | Tube, Riser (2) |
| 38 | Bend, Return Condenser (4) |
| 40 | Anticipator |
| 41 | Clip, Anticipator |
| 42 | Valve, Reversing |
| 43 | Coil, Solenoid |
| 44 | Manifold, Suction |
| 45 | Deflector, Water (Foam) |
| 49 | Screw No.8 |
| 50 | Drain Plug |
| 51 | Gasket, Drain Plug |
| 52 | Protector, Cord |
| 53 | Clamp, Restrictor Tube |
