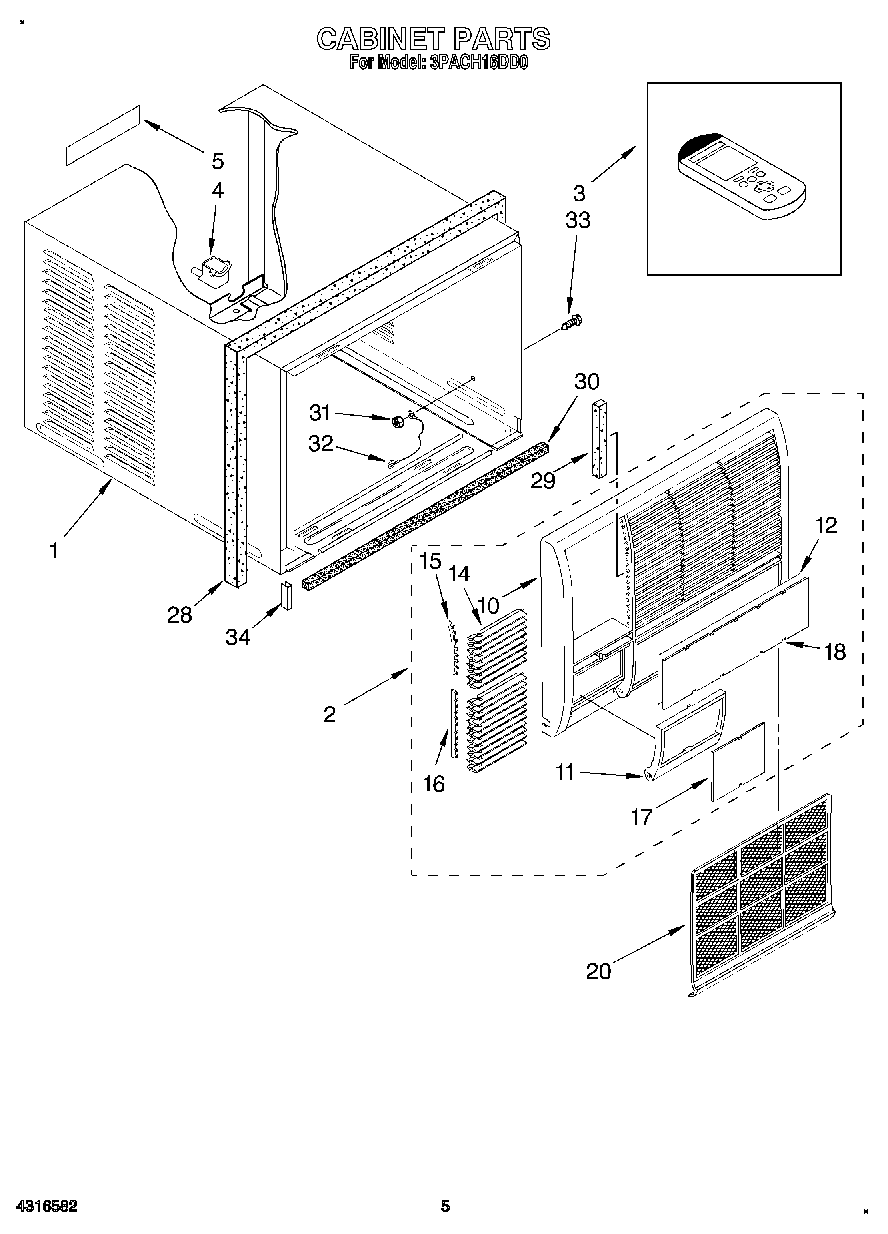

3PACH16DD0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Front (Complete)
3	Remote, Deluxe
4	Cup, Drip
5	Label, Cabinet
10	Frame, Front
11	Door, Control
12	Paper, Decorative (Front)
12	Paper, Decorative (Control Door)
14	Louver, Horizontal (15 Required)
15	Link, Horizontal Louver (Top)
16	Link, Horizontal Louver (Bottom)
17	Cover, Clear (Control Door)
18	Cover, Clear
20	Filter
28	Seal, Insulation
29	Seal, Front (Right Side)
29	Seal, Front (Left Side)
30	Seal, Cabinet (Side) (2)
30	WP854334 Whirlpool Air Conditioner Sealing Strip
31	WP486255 Whirlpool Air Conditioner Nut
32	Wire, Ground
33	WP488234 Whirlpool Air Conditioner Screw
34	Guard, Edge
