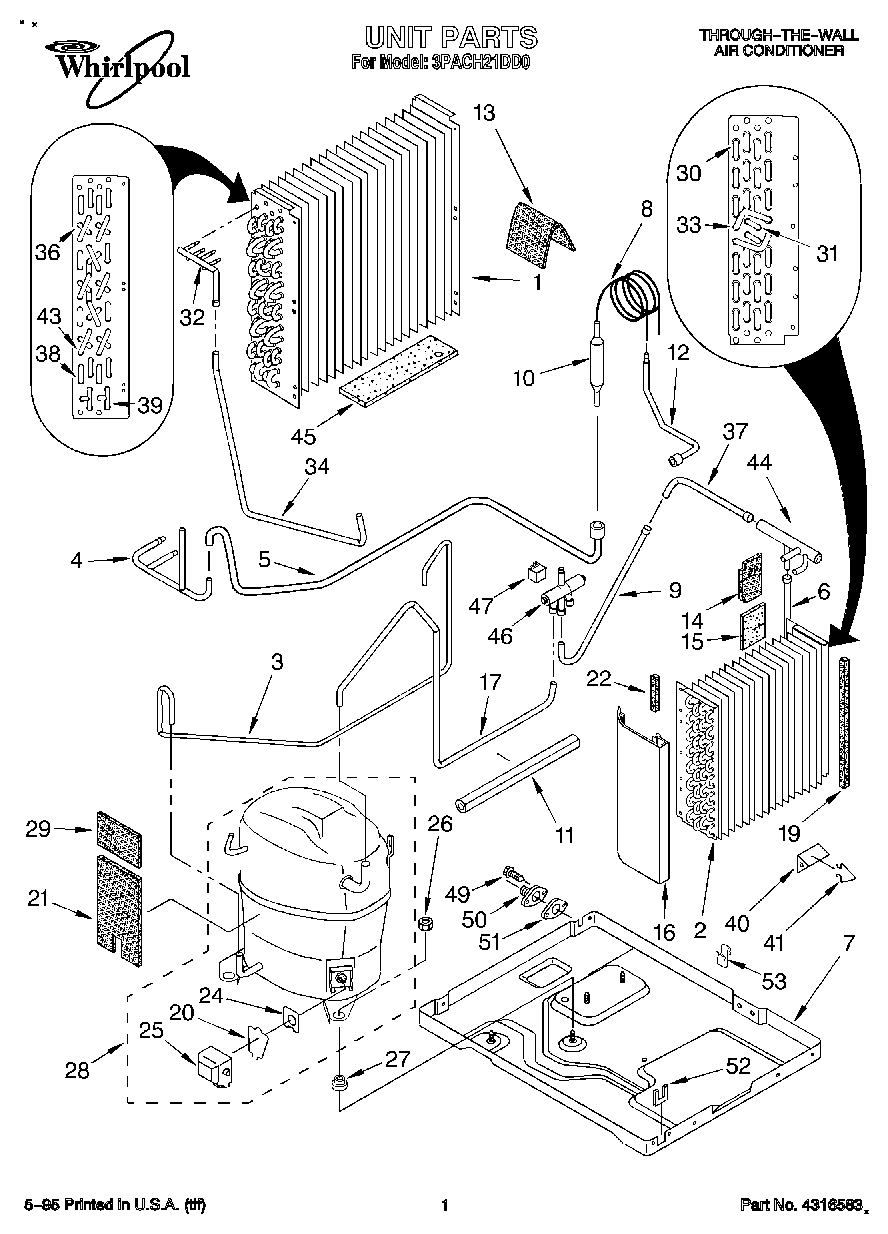

3PACH21DD0 01 – UNIT, LITERATURE

Products

Position	Product
	Deluxe R
	WPL LIT1180867
	Wiring Diagram
1	Condenser
2	Evaporator
3	Tube, Valve To Comp. Discharge
4	Tube, Process
5	Tube, Wet Loop
6	Tube, Outlet (Row 2)
6	Tube, Outlet (Row 1)
7	Base
8	Tube, Restrictor (4)
9	Tube, Valve To Evaporator
10	Strainer
11	Dampener, Tube 1/2“
12	Tube, Inlet (Row 4)
12	Tube, Inlet (Row 3)
12	Tube, Inlet (Top Row 4)
12	Tube, Inlet (Top Row 3)
13	Seal, Anti-Rub
14	Seal, Suction Tube
15	Seal, Inlet Tube
16	Cover, Hair Pin
17	Tube, Valve To Comp. Suction
19	WP854334 Whirlpool Air Conditioner Sealing Strip
20	Retainer, Terminal Cover
21	Seal (Compressor)
22	Seal (Cover)
24	Gasket, Terminal Cover
25	Cover, Terminal
26	Nut, 8MM
27	Grommet (3)
28	Compressor
29	Pad, Dampening
30	Bend, Return Evaporator (11)
31	WP855199 Whirlpool Bend Return
32	Manifold (4 Circuit)
33	Tube, Crossover (2)
34	Tube, Valve To Condenser
36	Bend, Return Condenser (10)
37	Tube, Valve To Manifold
38	Bend, Return Condenser (4)
39	Bend, Return (3-Way)
40	Anticipator
41	Clip, Anticipator
43	Bend, Return Condenser (1)
44	Manifold, Suction
45	Deflector, Water (Foam)
46	Valve, Reversing
47	Coil, Solenoid
49	Screw No.8
50	Drain Plug
51	Gasket, Drain Plug
52	Protector, Cord
53	Clamp, Restrictor Tube
