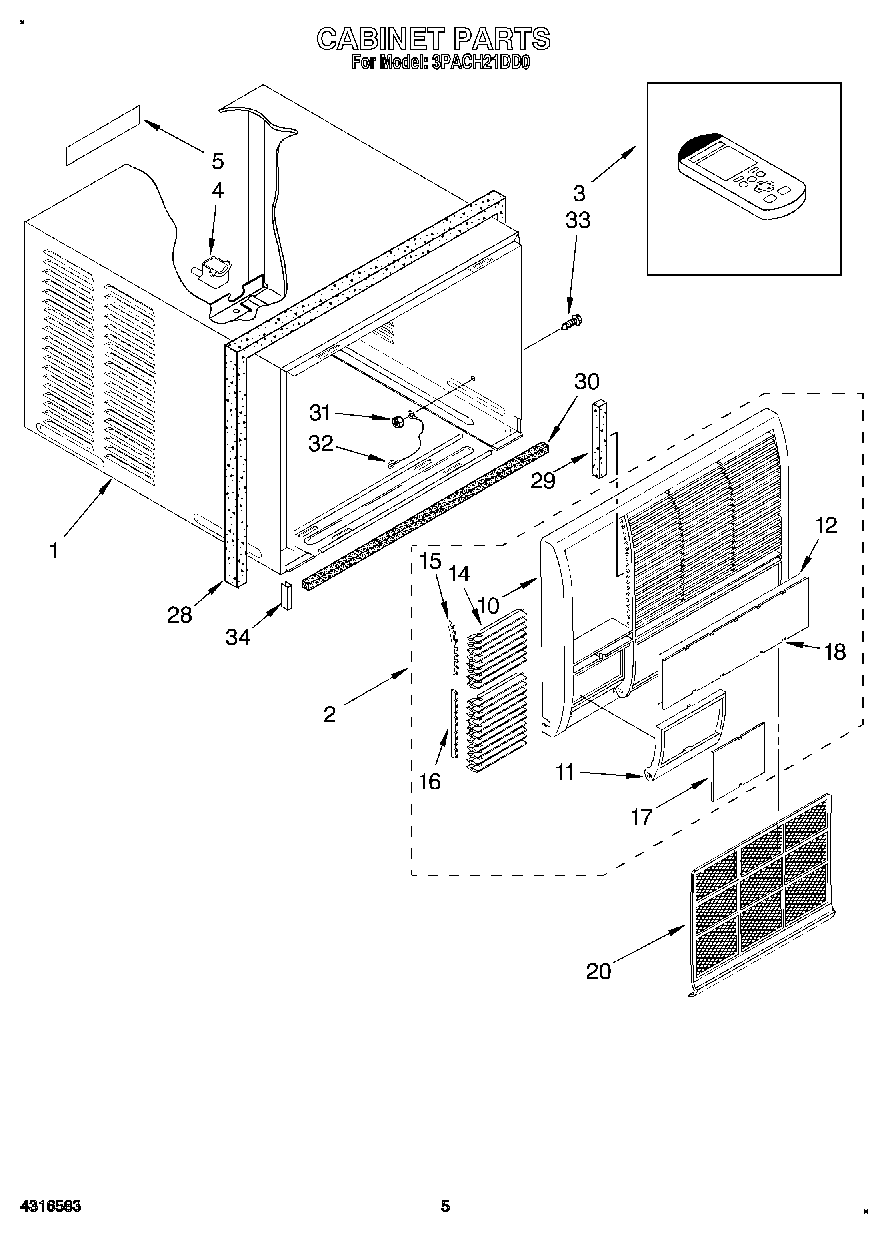

3PACH21DD0 03 – CABINET

Products

PositionProduct
1Cabinet
2Front (Complete)
3Remote, Deluxe
4Cup, Drip
5Label, Cabinet
10Frame, Front
11Door, Control
12Paper, Decorative (Front)
12Paper, Decorative (Control Door)
14Louver, Horizontal (15 Required)
15Link, Horizontal Louver (Top)
16Link, Horizontal Louver (Bottom)
17Cover, Clear (Control Door)
18Cover, Clear
20Filter
28Seal, Insulation
29Seal, Front (Right Side)
29Seal, Front (Left Side)
30Seal, Cabinet (Side) (2)
30WP854334 Whirlpool Air Conditioner Sealing Strip
31WP486255 Whirlpool Air Conditioner Nut
32Wire, Ground
33WP488234 Whirlpool Air Conditioner Screw
34Guard, Edge
