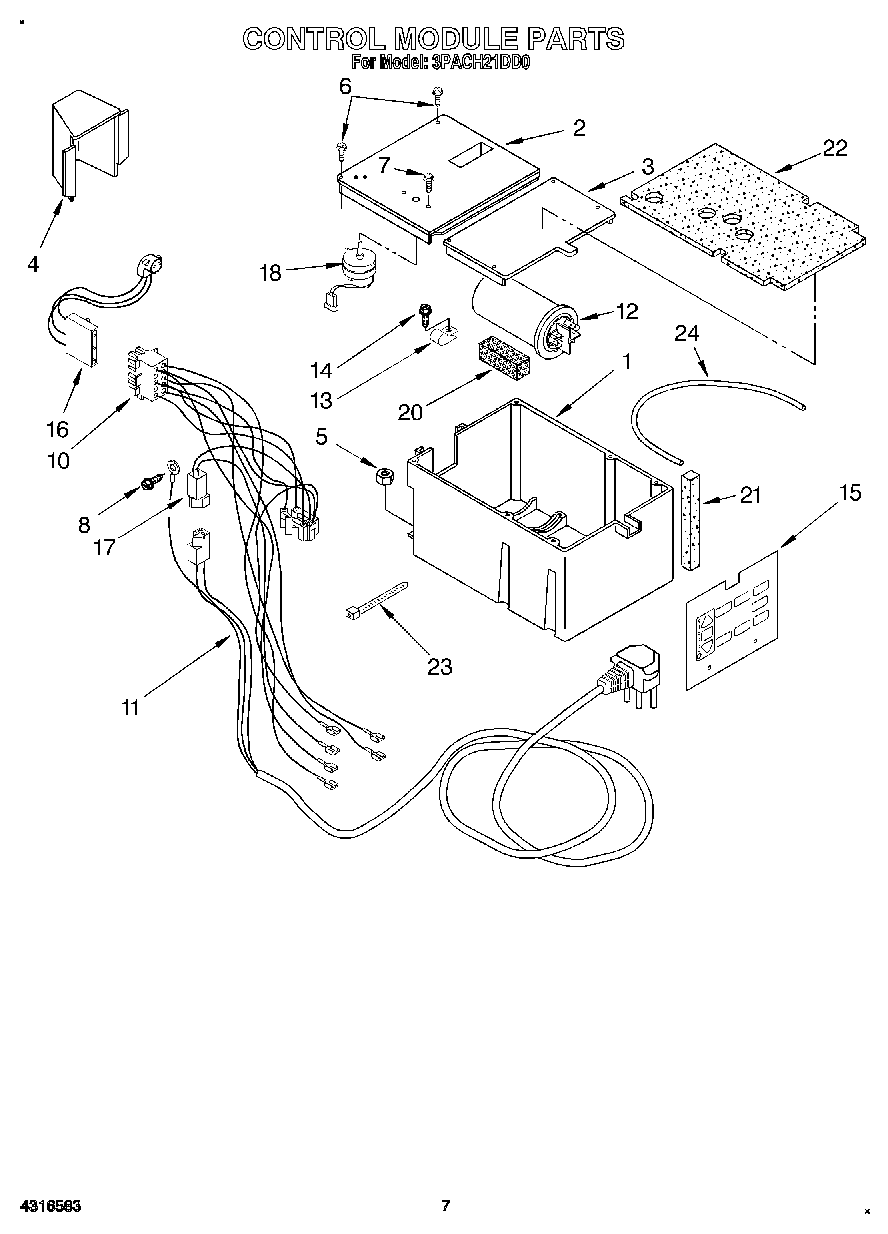

3PACH21DD0 04 – CONTROL MODULEadmin2025-04-26T10:54:11+00:003PACH21DD0 04 – CONTROL MODULE
Products
| Position | Product |
|---|
| 1 | Housing, Controls (Not Serviceable) |
| 2 | Lid, Capacitor |
| 3 | Lid, Controls |
| 4 | Shield, Rain |
| 5 | Nut, Hex 5MM |
| 6 | Screw (Tamper- Resistant) |
| 7 | 489392 Whirlpool Refrigerator Screw |
| 8 | Screw |
| 10 | Harness, Wiring 10 Pin (Not Serviceable) |
| 11 | Cable, Appliance |
| 12 | Capacitor |
| 13 | Relief, Strain |
| 14 | Screw No.8 |
| 15 | Overlay (English) |
| 16 | Harness, Wiring (Compressor) |
| 17 | Harness, Appliance Cable (Not Serviceable) |
| 18 | Motor, Air Swing (Not included in Complete Assembly) |
| 20 | Spacer |
| 21 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 22 | Seal, Control Box |
| 23 | WPW10339879 Whirlpool Wire Tie |
| 24 | Control Box (Complete) |
| 24 | Sleeve, Thermistor |
