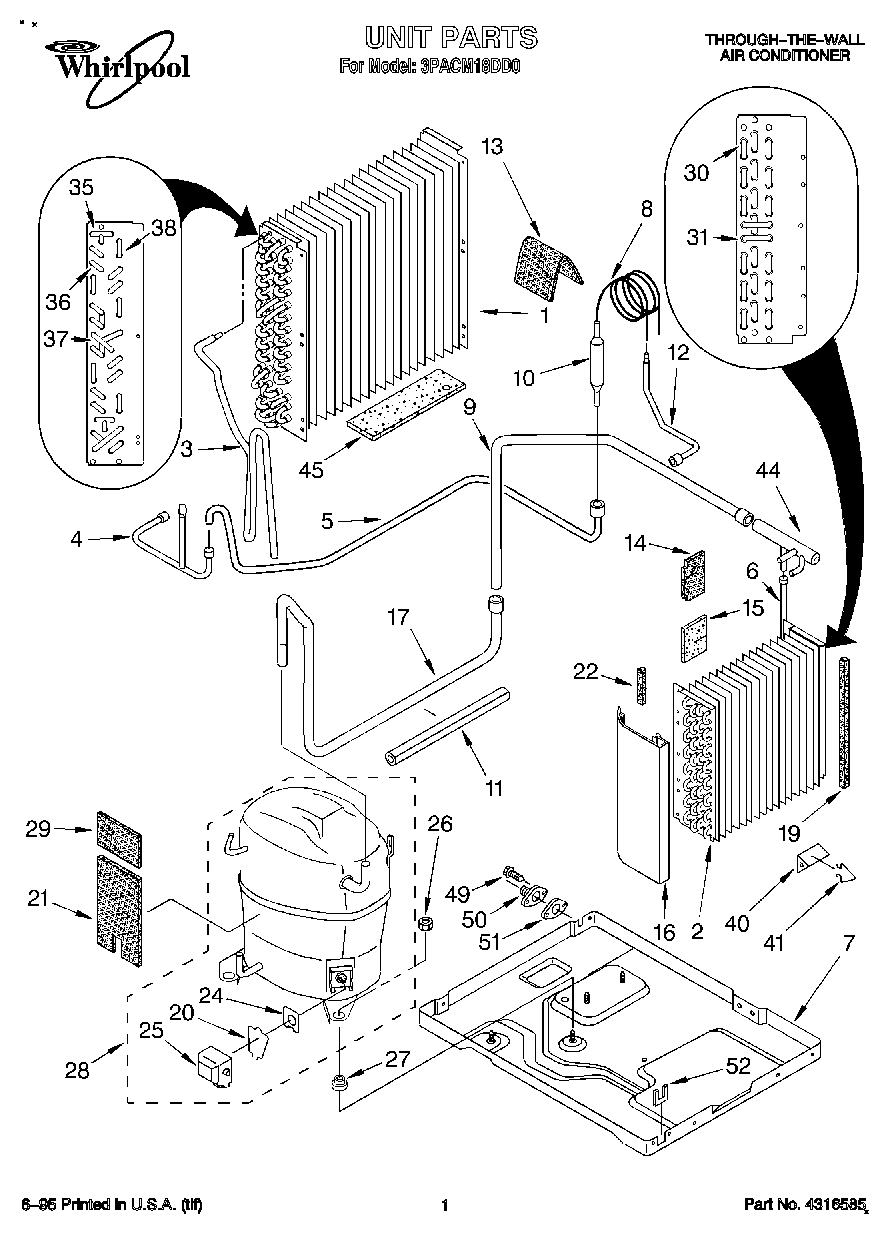

3PACM18DD0 01 – UNIT, LITERATURE

Products

Position	Product
	Wiring Diagram
	Owners Manual/Installation Instructions
	Deluxe Remote Owners Manual
1	Condenser
2	Evaporator
3	Tube, Discharge
4	Tube, Process
5	Tube, Wet Loop
6	Tube, Outlet (Row 1)
7	Base
8	Tube, Restrictor (2 Required)
9	Tube, Suction (Evaporator)
10	Strainer
11	Dampener, Tube 1/2“
12	Tube, Inlet (Row 3)
12	Tube, Inlet (Row 2)
12	Tube, Inlet (Top Row 3)
13	Seal, Anti-Rub
14	Seal, Suction Tube
15	Seal, Inlet Tube
16	Cover, Hair Pin
17	Tube, Suction (Compressor)
19	WP854334 Whirlpool Air Conditioner Sealing Strip
20	Retainer, Terminal Cover
21	Seal (Compressor)
22	Seal (Cover)
24	Gasket, Terminal Cover
25	Cover, Terminal
26	Nut, 8MM
27	Grommet (3)
28	Compressor
29	Pad, Dampening
30	Bend, Return Evaporator (11)
31	Bend, Return (2)
35	Bend, 3-Way
36	Bend, Return Condenser (10)
37	Tube, Riser (2)
38	Bend, Return Condenser (4)
40	Anticipator
41	Clip, Anticipator
44	Manifold, Suction
45	Deflector, Water (Foam)
49	Screw No.8
50	Drain Plug
51	Gasket, Drain Plug
52	Protector, Cord
