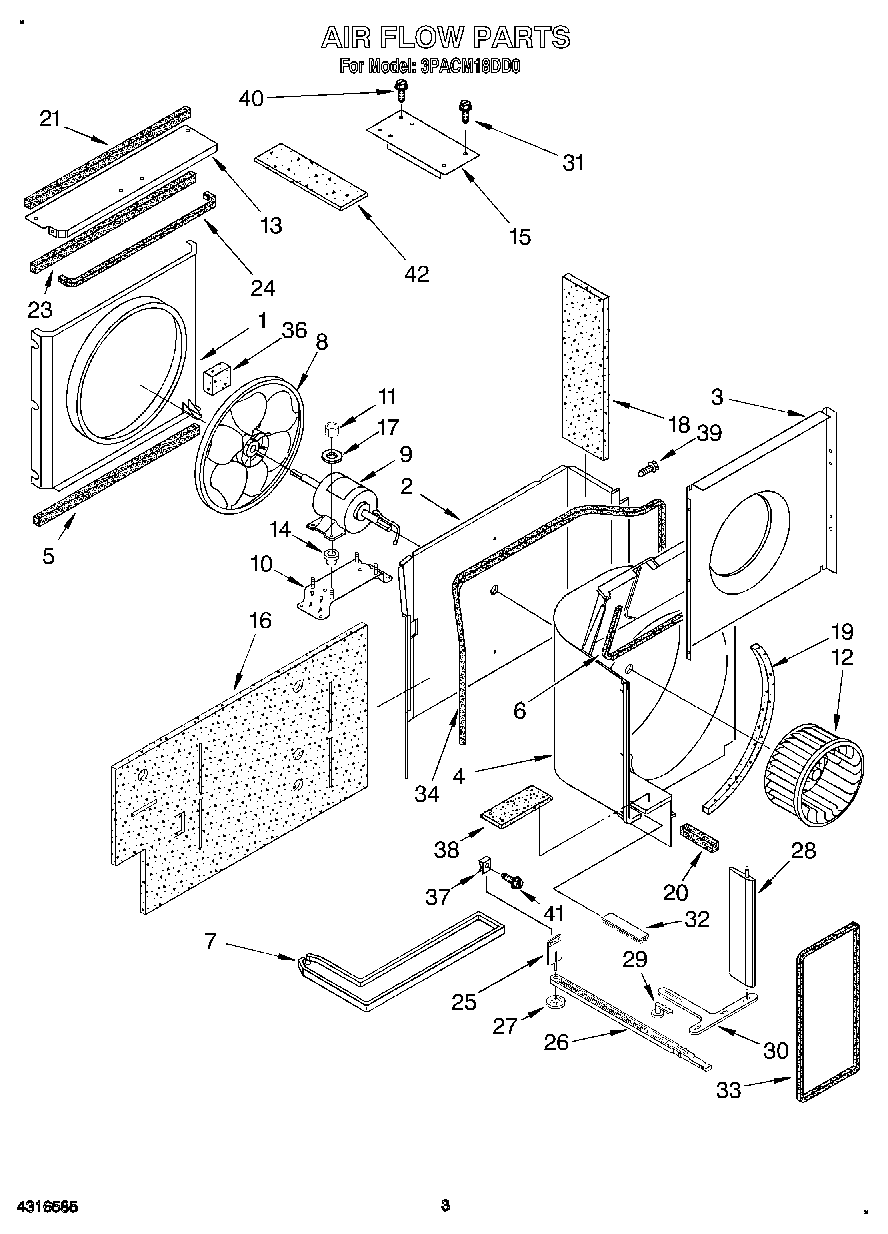

| 1 | Shroud, Condenser |
| 2 | Wall, Dividing |
| 3 | Shroud, Evaporator |
| 4 | Housing, Air |
| 5 | Seal |
| 6 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 7 | Pan, Drain |
| 8 | Blade, Fan |
| 9 | Motor, Fan |
| 10 | Bracket, Motor Mount |
| 11 | Nut, Hex 5MM |
| 12 | Wheel, Blower |
| 13 | Cover, Condenser Top |
| 14 | Grommet, Fan Motor |
| 15 | Support, Unit |
| 16 | Insulation, Dividing Wall |
| 17 | Washer, Bonded |
| 18 | Insulation (Side) |
| 20 | Seal |
| 23 | Seal |
| 24 | Seal, Condenser Top Cover |
| 25 | Door, Exhaust |
| 26 | Linkage, Exhaust Door |
| 27 | Retainer, Linkage |
| 28 | Louver, Verticle (3) |
| 29 | Crank, Verticle Louver |
| 30 | Link, Verticle Louver |
| 31 | WP1163283 Whirlpool Air Conditioner Screw |
| 31 | Screw, 8-18 x 3/8 |
| 32 | Cover, Slot |
| 36 | Seal, Condenser Shroud (Bottom) |
| 37 | Clip, Cabinet Front (2) |
| 38 | Seal, Louver |
| 39 | Screw |
| 40 | Screw No.8 x 1 |
| 41 | 489392 Whirlpool Refrigerator Screw |
| 42 | Seal, Condensate |
