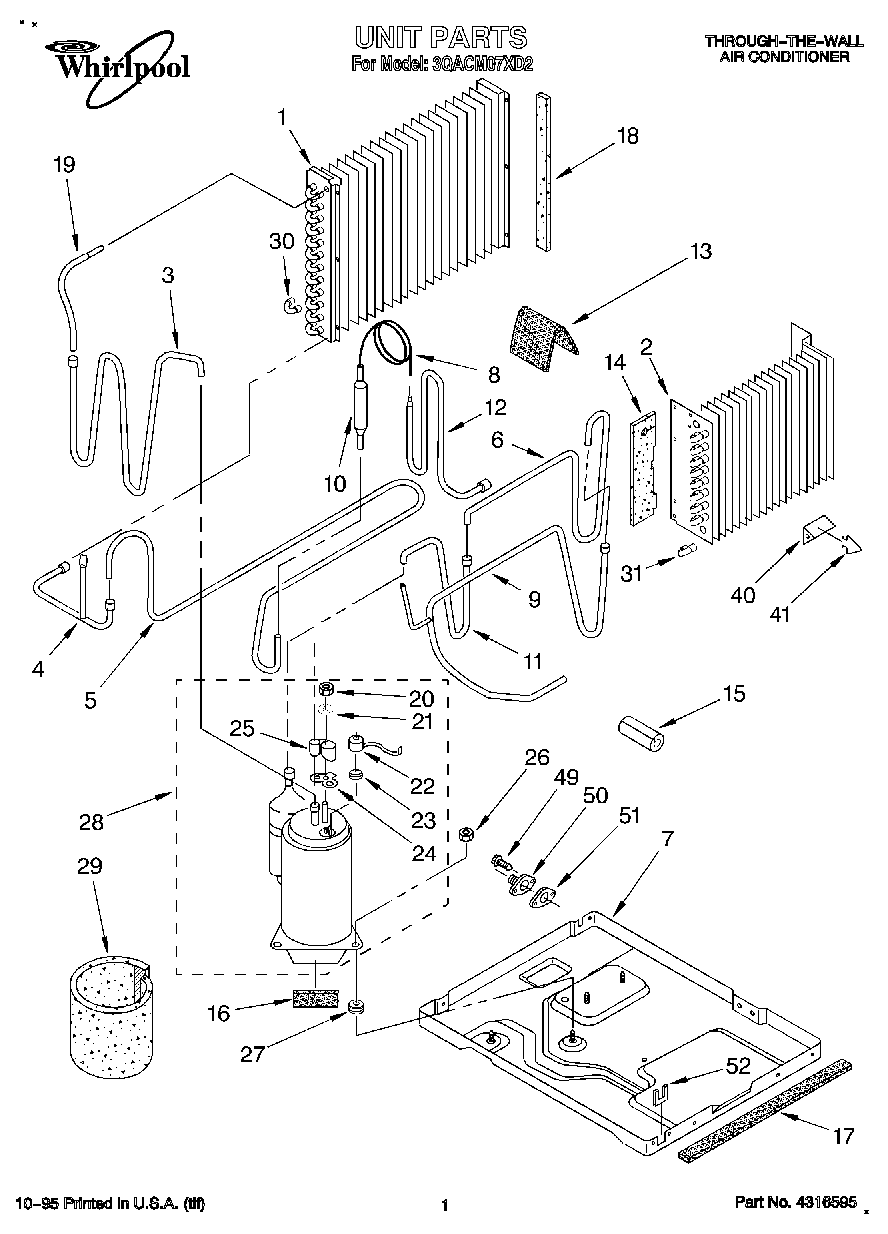

3QACM07XD2 01 – UNIT, LITERATUREadmin2025-04-26T10:54:38+00:003QACM07XD2 01 – UNIT, LITERATURE
Products
| Position | Product |
|---|
| Owners Manual |
| Wiring Diagram |
| 1 | Condenser |
| 2 | Evaporator |
| 3 | Tube, Discharge (Compressor) |
| 4 | Tube, Process |
| 5 | Tube, Wet Loop |
| 6 | Tube, Suction (Connecting) |
| 7 | Base |
| 8 | Tube, Restrictor |
| 9 | Tube, Suction (To Evaporator) |
| 10 | Strainer |
| 11 | Tube, Suction (To Compressor) |
| 12 | Tube, Evaporator Inlet |
| 13 | WPL 1162650 |
| 14 | Seal, Tube |
| 15 | Insulation, Suction Tube Support |
| 16 | Seal, Anti-Rub |
| 17 | Seal |
| 18 | Insulation, Condenser (R.S.) |
| 19 | Tube, Discharge (To Condenser) |
| 20 | WP950027 Whirlpool Mounting Nut |
| 21 | Gasket, Nut |
| 22 | Protector, Overload |
| 23 | Spring, Overload |
| 24 | WP950035 Whirlpool Cover Gasket |
| 25 | WP950036 Whirlpool Cover Assembly |
| 26 | Nut, 8MM |
| 27 | Grommet, Compressor Mounting |
| 28 | Compressor |
| 29 | Blanket, Compressor |
| 30 | Bend, Return Condenser (10) |
| 31 | WP855199 Whirlpool Bend Return |
| 40 | Anticipator, Temperature |
| 41 | Clip, Anticipator |
| 49 | Screw No.8 x 1 |
| 50 | Drain Plug |
| 51 | Gasket, Drain Plug |
| 52 | Protector, Cord |
