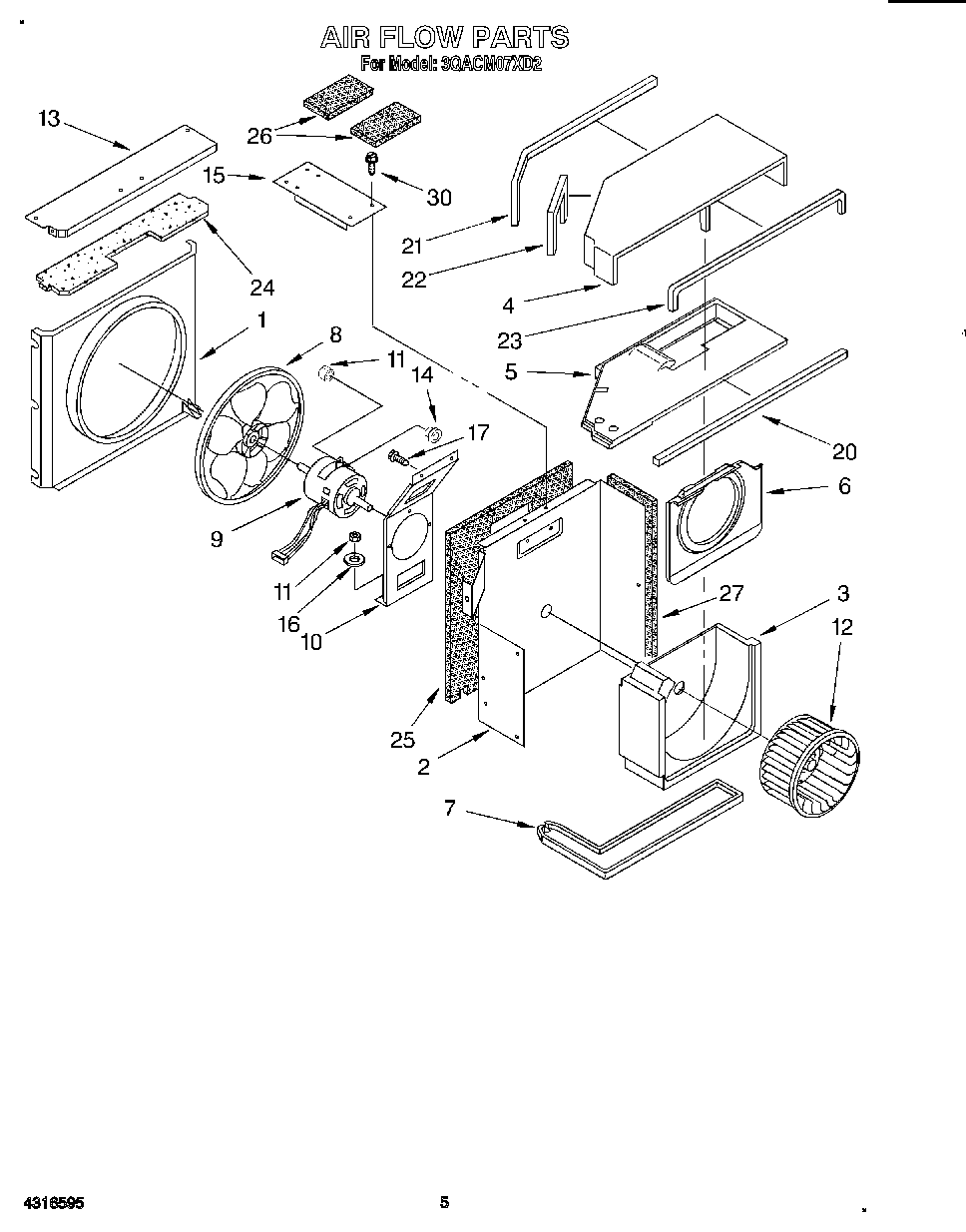

| 1 | Shroud, Condenser |
| 2 | Wall, Dividing |
| 3 | Scroll, Air Housing |
| 4 | Hood, Air Housing |
| 5 | Cover, Evaporator Top |
| 6 | Orifice, Air Housing |
| 7 | Pan, Drain |
| 8 | Blade, Fan |
| 9 | Motor, Fan |
| 10 | Bracket, Motor Mount |
| 11 | Nut, Hex 5MM |
| 12 | Wheel, Blower |
| 13 | Cover, Condenser Top |
| 14 | Grommet, Fan Motor |
| 15 | Support, Unit |
| 16 | Washer, Bonded |
| 17 | Screw, 8-18 x 3/8 |
| 21 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 24 | Seal, Condenser Top Cover |
| 25 | Insulation (Back, Dividing Wall) |
| 26 | Seal, Anti-Rub |
| 27 | Insulation (Side, Dividing Wall) |
| 30 | WP1163283 Whirlpool Air Conditioner Screw |
