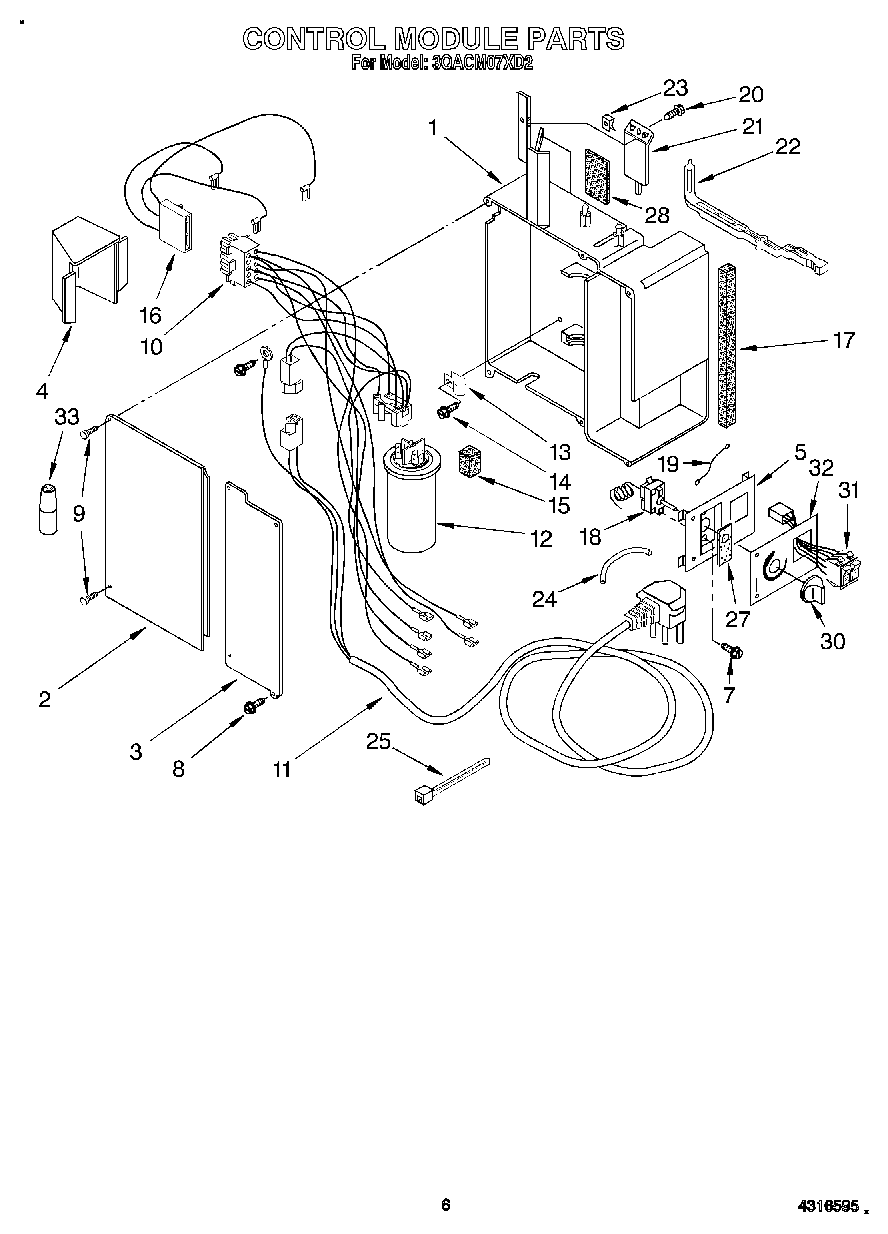

3QACM07XD2 04 – CONTROL MODULEadmin2025-04-26T10:55:52+00:003QACM07XD2 04 – CONTROL MODULE
Products
| Position | Product |
|---|
| 1 | Housing, Controls (Not Serviceable) |
| 2 | Lid, Capacitor |
| 3 | Lid, Controls |
| 4 | Shield, Rain |
| 5 | Panel, Control |
| 7 | Screw, 6-32 x .175 |
| 9 | Screw (Tamper- Resistant) |
| 10 | Harness, Wiring 10 Pin (Not Serviceable) |
| 11 | Cable, Appliance |
| 12 | Capacitor |
| 13 | WPL 1180504 |
| 14 | Screw No.8 |
| 15 | Spacer |
| 16 | Harness, Compressor |
| 17 | Seal |
| 18 | Control, Temperature |
| 19 | Wire, Ground |
| 20 | 489392 Whirlpool Refrigerator Screw |
| 21 | Door, Exhaust |
| 22 | Linkage, Exhaust Door |
| 23 | Clip, Cabinet Front (2) |
| 24 | Insulation, Sleeve |
| 25 | WPW10339879 Whirlpool Wire Tie |
| 27 | Seal, Control Panel |
| 28 | Seal, Door |
| 30 | Knob |
| 31 | Switch, Rocker |
| 32 | Escutcheon |
| 33 | Screwdriver (For Tamper Proof Screw) |
| 33 | Control Box (Complete) |
