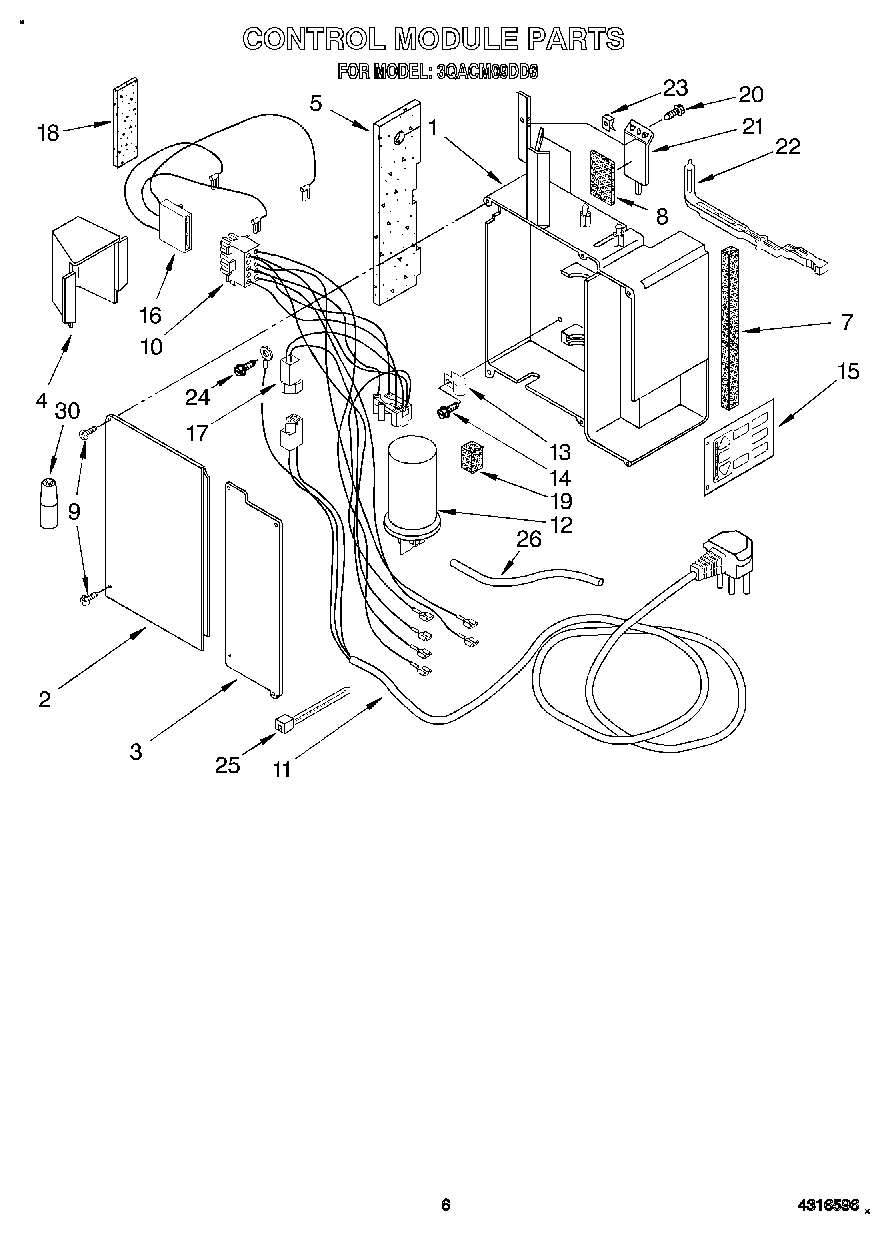

3QACM09DD3 04 – CONTROL MODULE

Products

PositionProduct
1Housing, Controls (Not Serviceable)
2Lid, Capacitor
3Lid, Controls
4Shield, Rain
5Seal, Tube
7Seal
8Seal, Door
9Screw (Tamper- Resistant)
10Harness, Wiring 10 Pin (Not Serviceable)
11Cable, Appliance
12Capacitor, Running
13WPL 1180504
14Screw No.8
15Overlay (English)
16Harness, Compressor
17Harness, Appliance Cable (Not Serviceable)
18Seal, Anti-Rub
19Spacer
20489392 Whirlpool Refrigerator Screw
21Door, Exhaust
22Linkage, Exhaust Door
23Clip, Cabinet Front (2)
24Screw
25WPW10339879 Whirlpool Wire Tie
26Sleeve, Insulating
30Screwdriver (For Tamper Proof Screw)
30Control Box (Complete)
