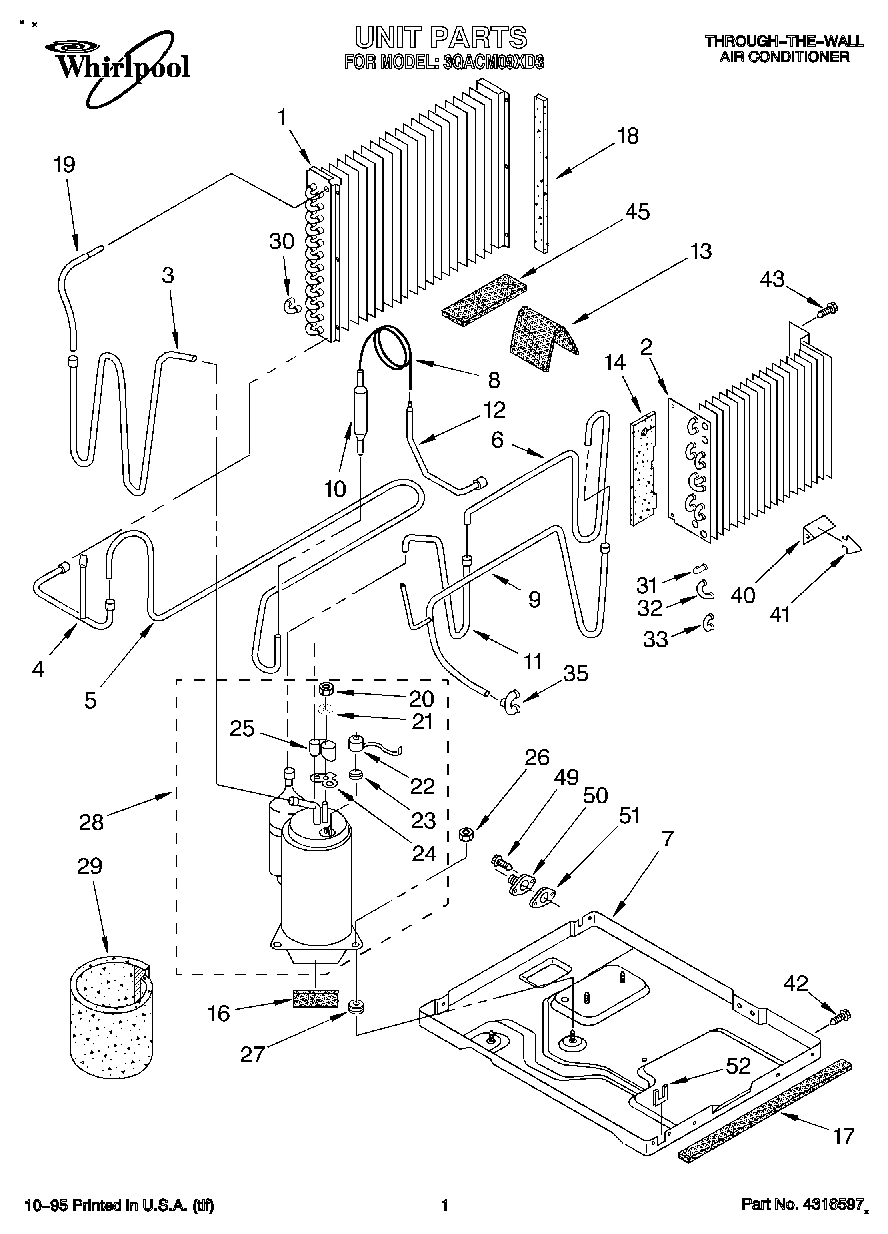

3QACM09XD3 01 – UNIT, LITERATURE

Products

Position	Product
	Wiring Diagram
	Owners Manual
1	Condenser
2	Evaporator
3	Tube, Discharge (To Compressor)
4	Tube, Process
5	Tube, Wet Loop
6	Tube, Suction (Connecting)
7	Base
8	Tube, Restrictor (2 Required)
9	Tube, Suction (To Evaporator) (Includes No. 35)
10	Strainer
11	Tube, Suction (To Compressor)
12	Tube, Inlet (Evaporator) (Row 2)
12	Tube, Inlet (Evaporator) (Row 1)
13	WPL 1162650
14	Seal, Tube
16	Seal, Anti-Rub
17	Seal
18	Insulation, Condenser (R.S.)
19	Tube, Discharge (To Condenser)
20	WP950027 Whirlpool Mounting Nut
21	Gasket, Nut
22	Protector, Overload
23	Spring, Overload
24	WP950035 Whirlpool Cover Gasket
25	WP950036 Whirlpool Cover Assembly
26	Nut, 8MM
27	Grommet, Compressor Mounting
28	Compressor
29	Blanket, Compressor
30	Bend, Return Condenser (10)
31	WP855199 Whirlpool Bend Return
32	Bend, Return
33	Bend, Return Evaporator (11)
35	Bend, Return 3-Way
40	Anticipator, Temperature
41	Clip, Anticipator
42	Screw
43	Screw, 8-18 x 3/8
45	Deflector, Water (Foam)
49	Screw No.8
50	Drain Plug
51	Gasket, Drain Plug
52	Protector, Cord
