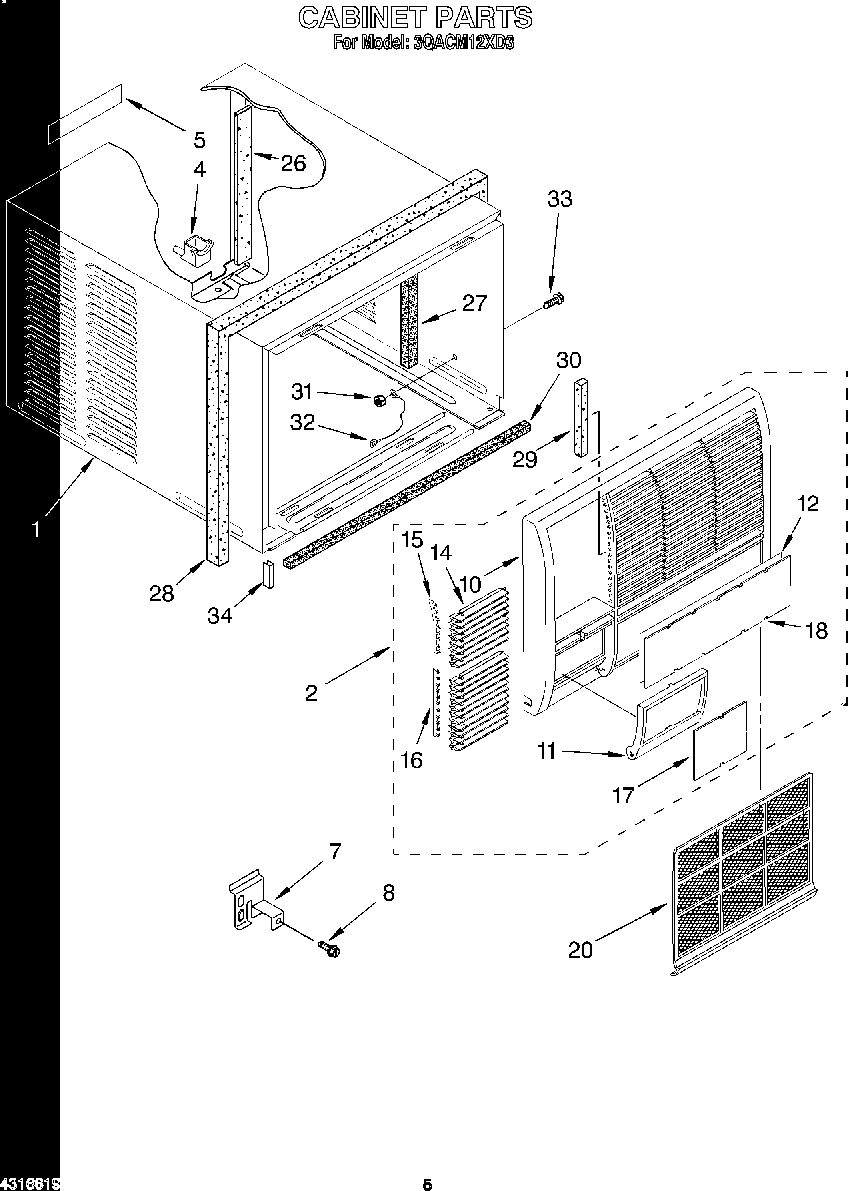

3QACM12XD3 03 – CABINET

Products

Position	Product
1	Cabinet
2	Front (Complete)
4	Cup, Drip
5	Label, Cabinet
7	Bracket, Front Mounting
8	Screw, 7-18 x 5/8
10	Frame, Front
11	Door, Control
12	Paper, Decorative (Front)
12	Paper, Decorative (Control Door)
14	Louver, Horizontal (15 Required)
15	Link, Horizontal Louver (Top)
16	Link, Horizontal Louver (Bottom)
17	Cover, Clear (Control Door)
18	Cover, Clear
20	Filter
26	Foam, Condenser (Right Side)
27	Insulation, Cab.
28	Seal, Insulation
29	Seal, Front (Left Side)
29	Seal, Front (Bottom)
29	Seal, Front (Right Side)
30	WP854334 Whirlpool Air Conditioner Sealing Strip
31	WP486255 Whirlpool Air Conditioner Nut
32	Wire, Ground
33	WP488234 Whirlpool Air Conditioner Screw
34	Guard, Edge
