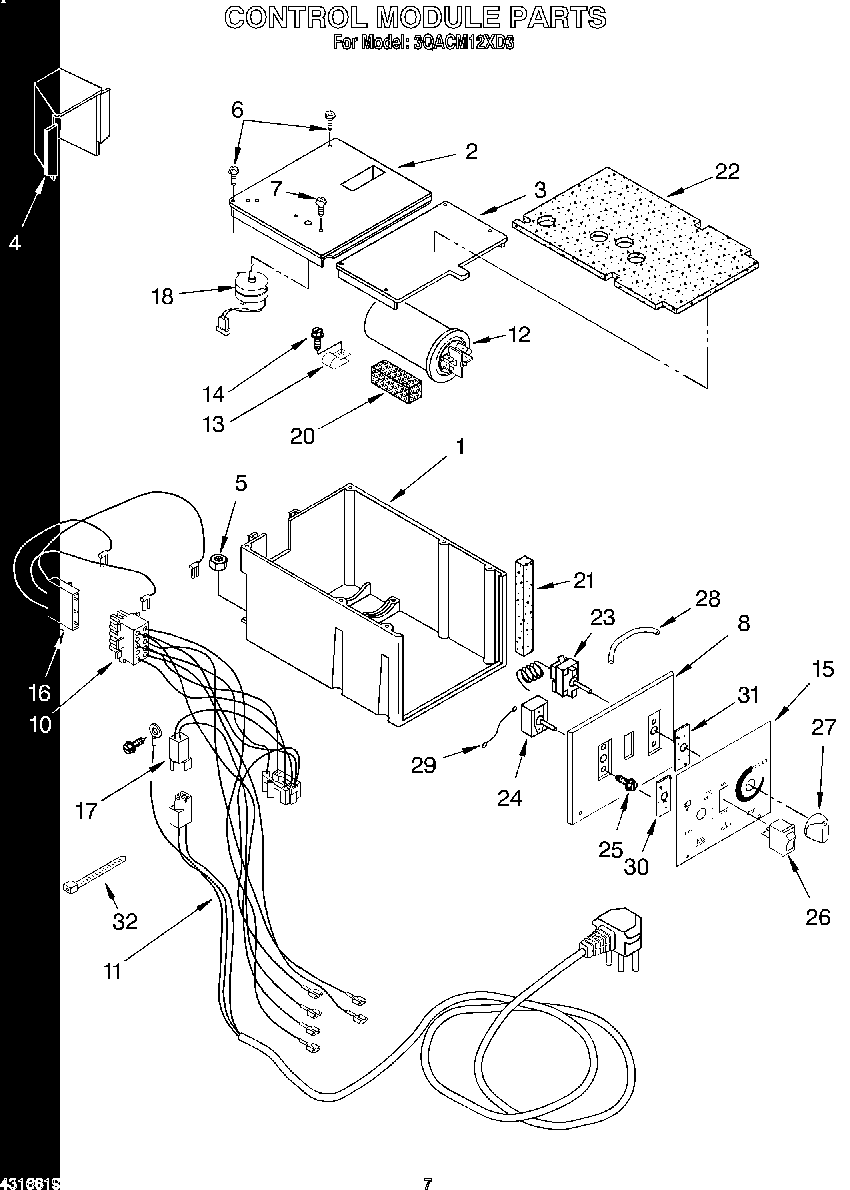

3QACM12XD3 04 – CONTROL MODULE

Products

Position	Product
1	Housing, Controls (Not Serviceable)
2	Lid, Capacitor
3	Lid, Controls
4	Shield, Rain
5	Nut, Hex 5MM
6	Screw (Tamper- Resistant)
7	489392 Whirlpool Refrigerator Screw
8	Plate, Control
10	Harness, Wiring 10 Pin (Not Serviceable)
11	Cable, Appliance
12	Capacitor
13	WPL 1180504
14	Screw No.8
15	Escutcheon
16	Harness, Wiring (Compressor)
17	Harness, Appliance Cable (Not Serviceable)
18	Motor, Air Swing (Not included in Complete Assembly)
20	Spacer
21	WP854334 Whirlpool Air Conditioner Sealing Strip
22	Seal, Control Box
23	Control, Temperature
24	Switch, Rotary
25	Screw, 6-32 x .175
26	WP4314961 Whirlpool Lite Switch
27	Knob
28	Sleeve, Insulator
29	Wire, Ground (Thermostat)
30	Seal, Control
31	Seal, Control
32	WPW10339879 Whirlpool Wire Tie
32	Control Box (Complete)
