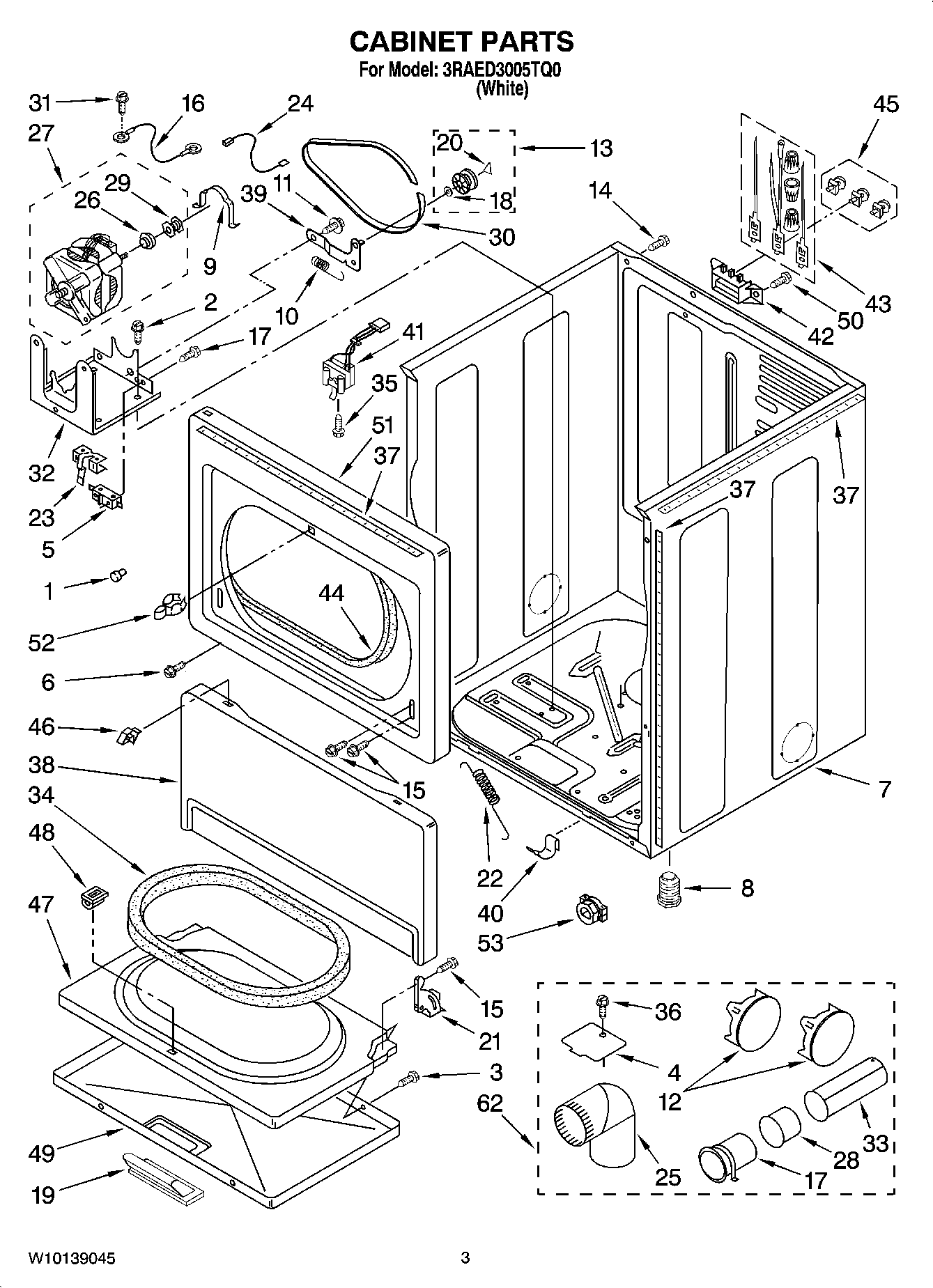

3RAED3005TQ0 02 – CABINET PARTS

Products

Position	Product
1	BUMPER
2	MAY W10130935
3	MAY W10080300
4	MAY 3394331
5	MAY 8318457
6	MAY W10080800
7	MAY 8310656
8	MAY 279810
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	MAY W10080670
12	MAY 697750
13	ASSEMBLY, PULLEY
14	MAY W10080830
15	MAY W10080590
16	MAY 340025
17	PIPE, EXHAUST (MEDIUM)
18	MAY W10121334
19	Handle, Door
20	WASHER, TRI RING
21	Hinge & Pin Assembly (2) (Hinge (L.H.))
21	Hinge & Pin Assembly (2) (Hinge (R.H.))
22	Spring-Door
23	Lever, Snap Switch
24	MAY 3394081
25	MAY 49026
26	MAY 3393657
27	Motor Assembly (50 Hz.)
28	MAY 8563750
29	MAY 3402548
30	MAY 3387610
31	MAY W10080760
32	MAY 3387118
33	PIPE, EXHAUST (LONG)
34	MAY 3390736
35	MAY W10080540
36	Screw
37	SEAL-FOAM (IEC)
38	Toe Panel (Includes Item. 2) (White)
39	MAY W10118754
40	Clip (2)
41	MAY 3406109
42	MAY 3397659
43	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
44	MAY 3387242
45	MAY 279393
46	RETAINER
47	Door, Rear
48	Catch, Door
49	MAY 697221
50	MAY W10080710
51	Upper Front Panel
52	Strike, Door
53	Clip, Strain Relief
62	MAY 279818
