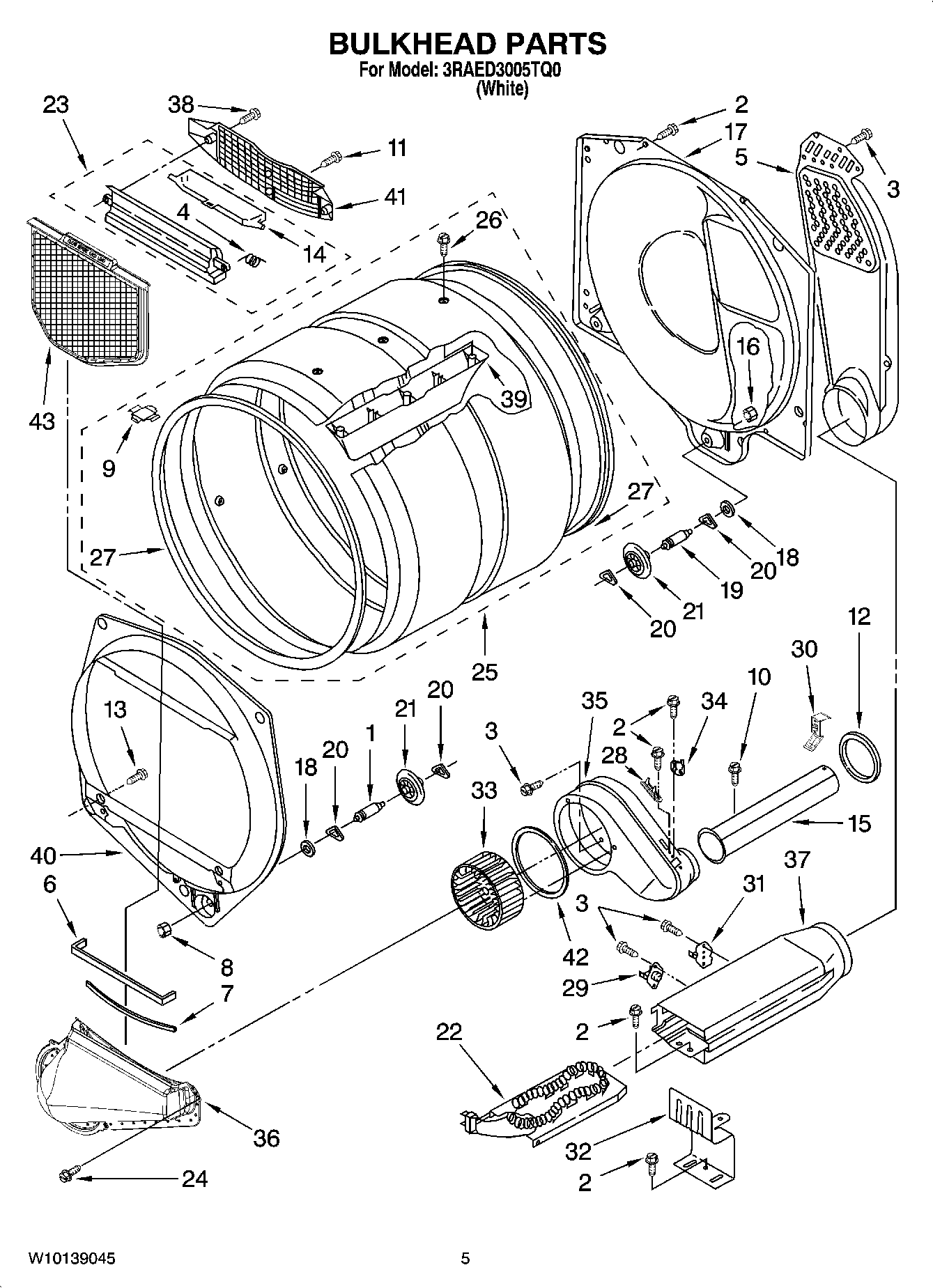

3RAED3005TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	Dry Rack
NI	Kit, Dryer Repair
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
1	MAY 8575324
2	MAY W10080700
3	Screw, 6-20 x 3/8
4	Spring, Lint Screen Door
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, 3/8 X 16 (R.H.)
9	Plug, Drum Hole
10	MAY W10080820
11	MAY W10080360
12	MAY 696302
13	Screw, 10-16 x 3/4
14	MAY 3394984
15	Exhaust Pipe
16	MAY W10080190
17	MAY 3387809
18	MAY W10080960
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	MAY 8318459
23	MAY 3394985
24	MAY W10080380
25	Complete Drum Assembly
26	MAY W10109200
27	MAY W10166807
28	Thermal-Limiter (89 C)
29	THERMOSTAT 250Â° F / 170F NC
30	CLIP, EXHAUST
31	Thermal Cut-Off
32	MAY 8066099
33	MAY W10168564
34	MAY W10168174
35	MAY W10151271
36	Lint Duct Assembly
37	HEATER BOX,
38	MAY W10080590
39	BAFFLE, DRUM
40	BULKHEAD, FRONT
41	MAY 8299979
42	SEAL, PLATE COVER
43	MAY W10049370
