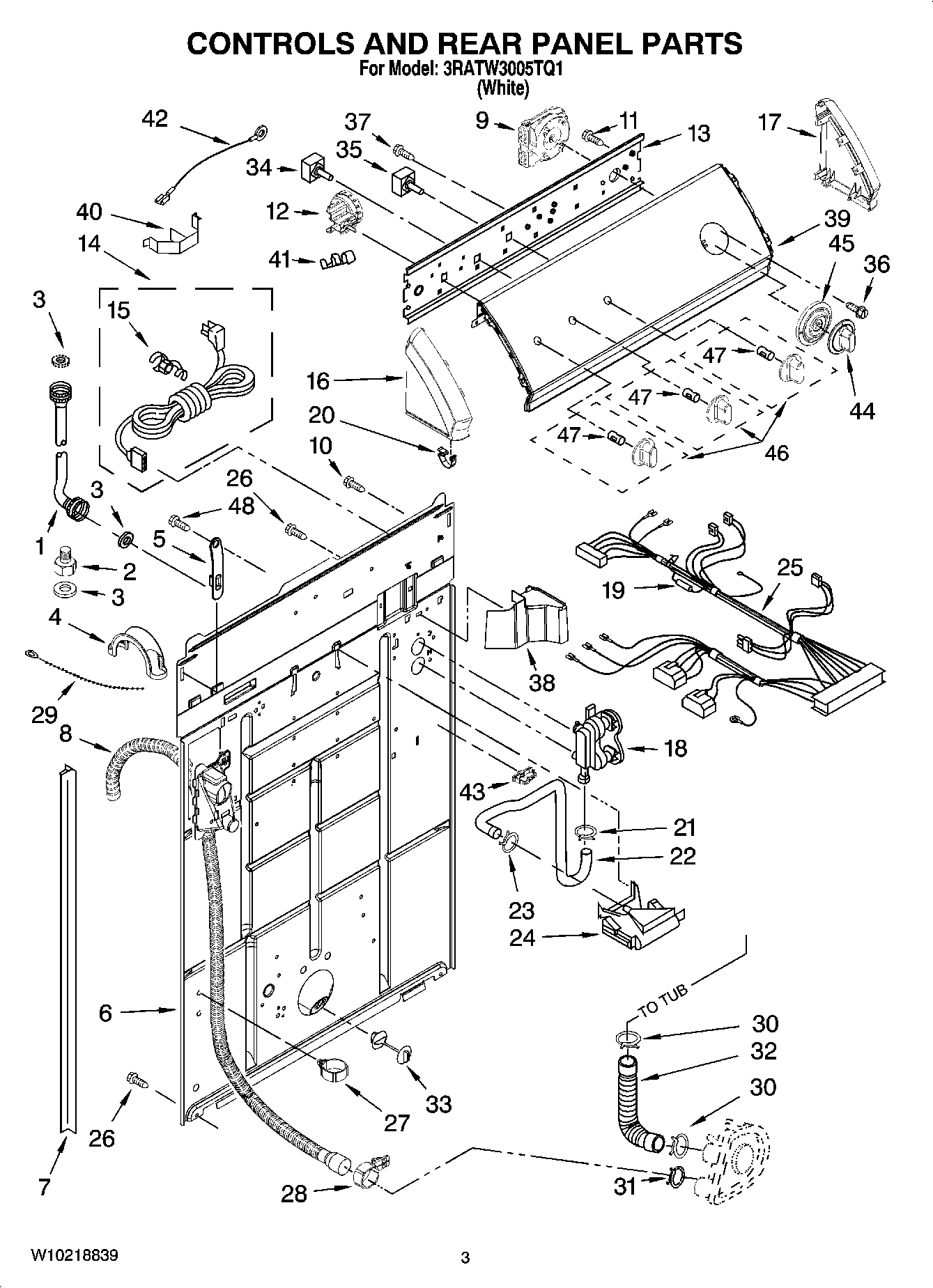

3RATW3005TQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	Hose, Water Inlet (Red)
1	Hose, Water Inlet (Blue)
2	Adapter, Water Inlet Hose
3	ACCESSORY PARTS, WASHER, HOSE
4	U-Bend
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	MAY W10096921
9	MAY W10222216
10	Screw, Ground
11	Screw, 6-20 x 3/8
12	MAY W10213635
13	MAY 8559504
14	MAY W10111552
15	MAY 8559337
16	MAY W10128464
17	MAY W10128463
18	MAY 3360397
19	Fuse (In Harness)
20	MAY W10129041
21	MAY W10096851
22	MAY 8541607
23	MAY W10096852
24	Thermister, Inlet
25	MAY W10133461
26	MAY W10080260
27	MAY 8541667
28	MAY 8541668
29	MAY 3347868
30	MAY W10094820
31	MAY W10112110
32	MAY W10116973
33	MAY 8519200
34	MAY W10168263
35	Switch, Rotary
36	SCREW
37	MAY W10130933
38	MAY 8314879
39	MAY W10115414
40	Clip, Harness & Pressure Switch
41	MAY 357572
42	MAY 3398893
43	MAY 3352944
44	MAY W10110061
45	MAY W10110062
46	Knob, Control (1) (White)
47	CLIP, SPRING
48	SCREW
