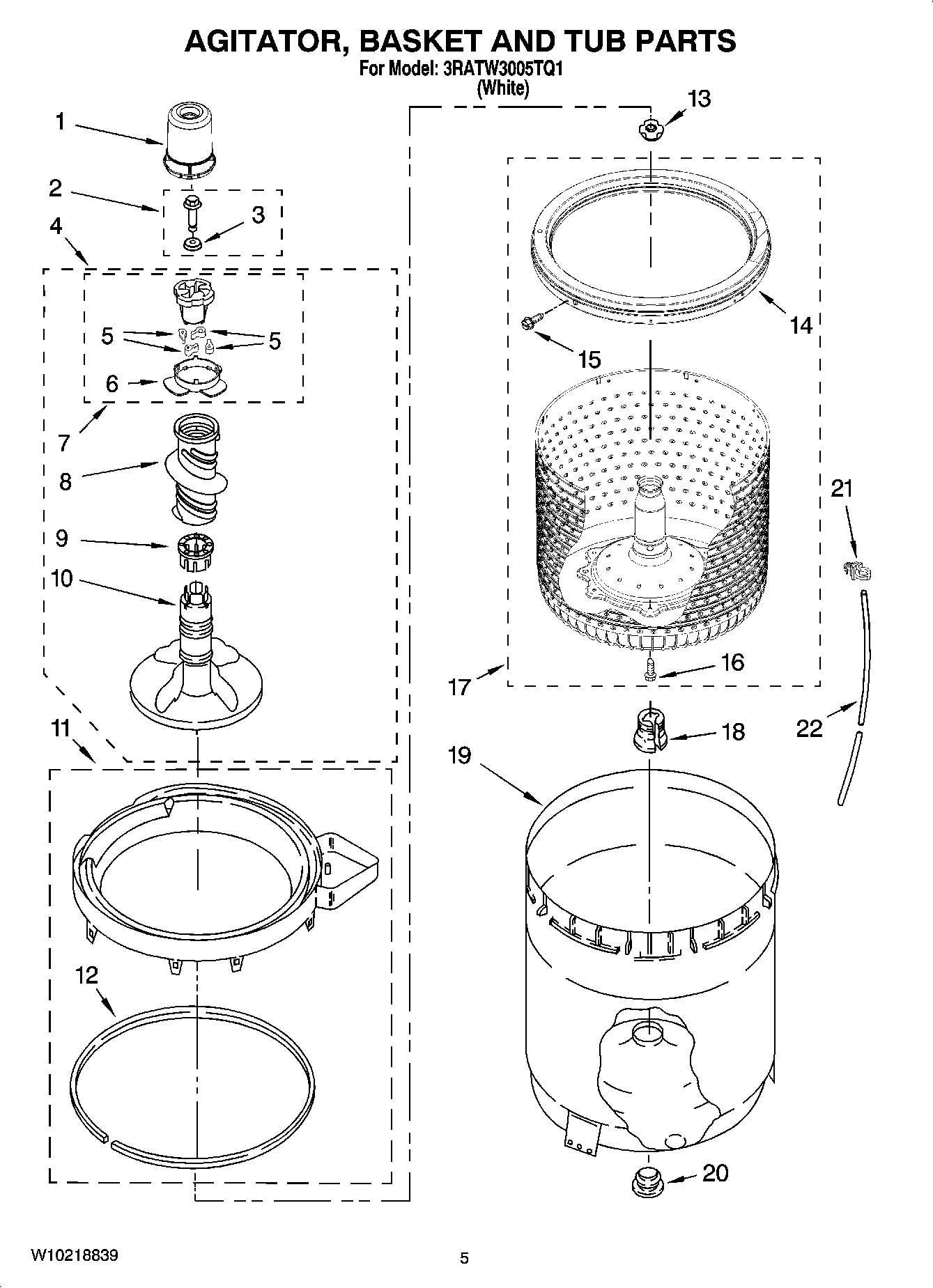

3RATW3005TQ1 03 – AGITATOR, BASKET AND TUB PARTS

3RATW3005TQ1 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

3RATW3005TQ1 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1MAY 8533252
2SCREW & WASHER
3MAY 3949550
4Agitator(Complete)
5Dog, Agitator (4)
6BEARING, CAM
7Cam, Driven
8MAY 3360824
9SPACER, THRUST
10MAY W10093670
11Tub Ring
12MAY 3976308
13MAY 21366
14MAY W10116946
15MAY W10137113
16MAY W10112537
17MAY W10042080
18Block, Drive
19MAY 63849
20MAY 383727
21Clip, Harness (1)
22MAY 3347780
