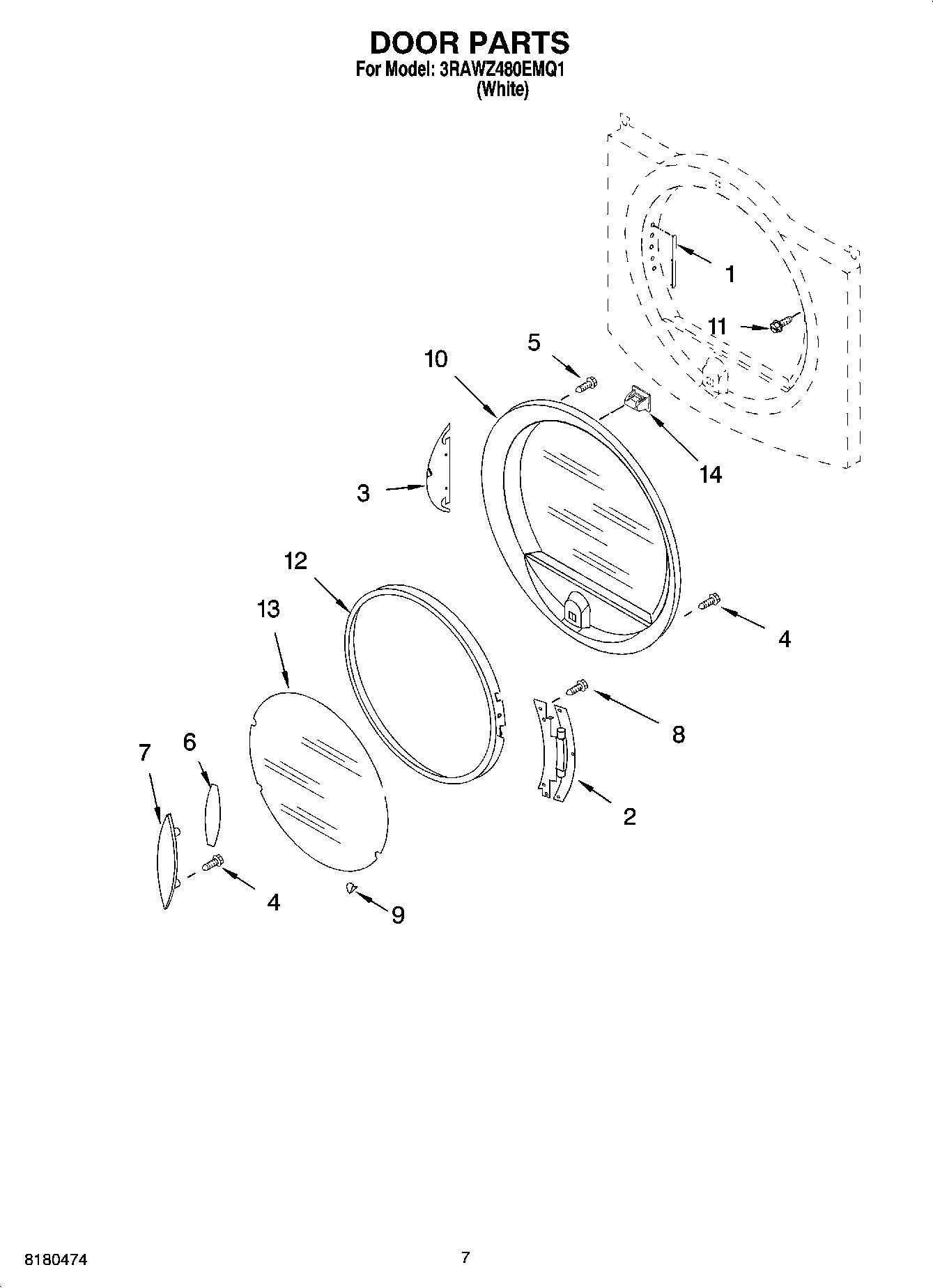

3RAWZ480EMQ1 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	ACCESSORY PARTS
	ACCESSORY PARTS, KIT, HOLD DOWN
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	Plug, Strip
2	Door Hinge Assembly
3	Cover, Door Hinge
4	SCREW
5	Screw, 10-32 x 1/2
6	WP8519336 Whirlpool Pad
7	Handle, Door
8	Screw, 1/4-20 x 1/2
9	Plug, Door Handle (2)
10	Door Assembly (Inner)
11	WP355515 Whirlpool Screw
12	Door, Outer
13	WINDOW
14	WP3389441 Whirlpool Door Catch
