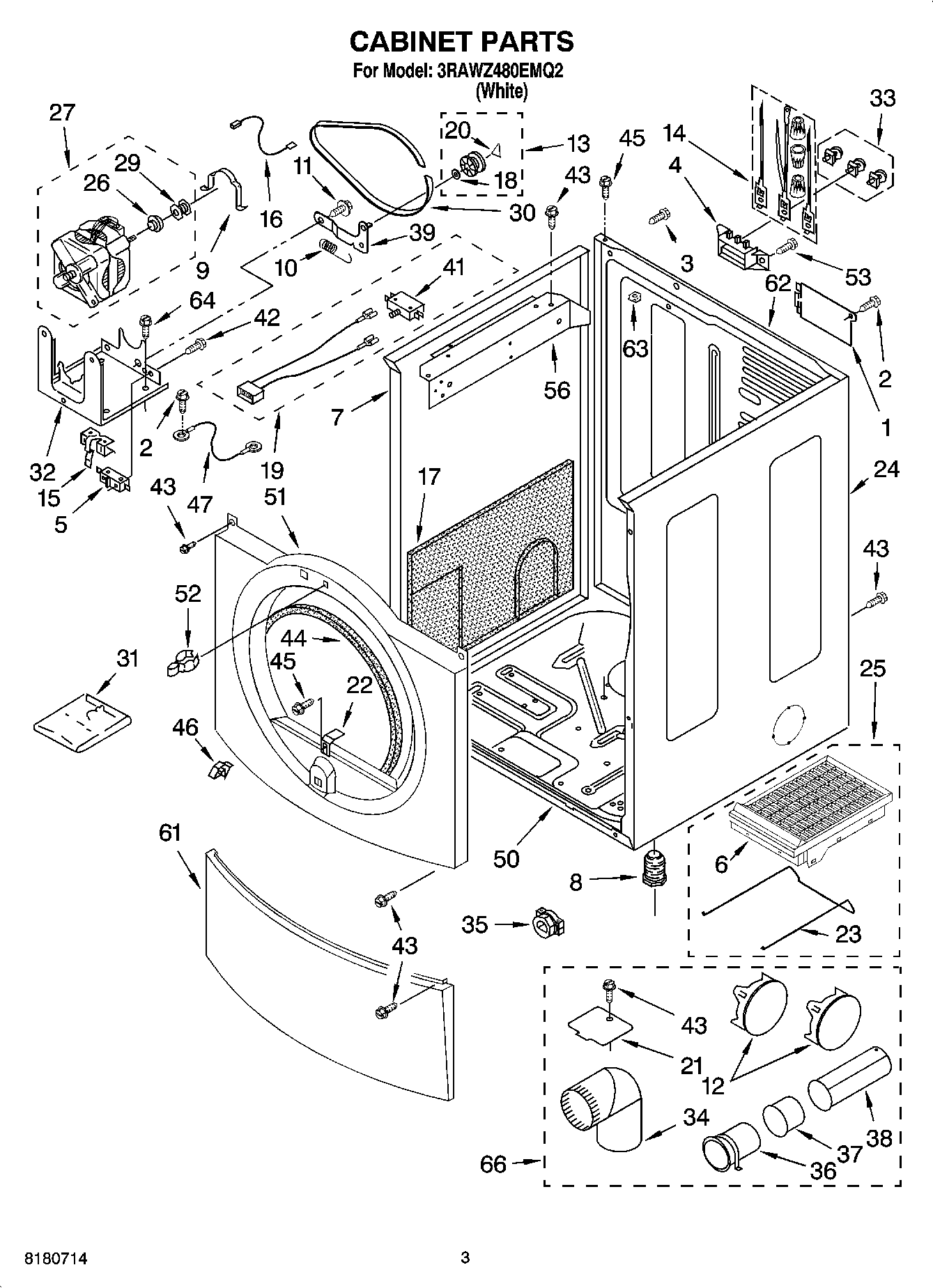

3RAWZ480EMQ2 02 – CABINET PARTS

3RAWZ480EMQ2 02 – CABINET PARTS

Written by

in

3RAWZ480EMQ2 02 – CABINET PARTS

Products

PositionProduct
1WPW10119283 Whirlpool Terminal Cover
2303776 Whirlpool Dishwasher Screw
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5WP8318457 Whirlpool Switch Plug
6Dry Rack (Top)
7Panel, Side (L.H.) (White)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
15WP8066120 Whirlpool Lever Assembly
16Wire, Belt Switch
17Sound Panel
18WPW10121334 Whirlpool Washer
19Jumper, Door Switch (Includes Illus. 41)
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
22Ramp, Door
23Dry Rack Support
24Panel, Side (R.H.) (White)
25Dry Rack Assembly
26WP3393657 Whirlpool Belt Retainer
27W10416573 Whirlpool Drive Motor
293402548 Whirlpool Motor Pulley
30661570V Whirlpool Dryer Drum Belt
318541503 Whirlpool Stacking Kit
32WP3387118 Whirlpool Base Assembly
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35W11704629 Whirlpool Clamp
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
41Switch, Door
423400934 Whirlpool Screw
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
45WP308685 Whirlpool Microwave Screw
46W11295573 Whirlpool Clip
47Wire, Ground
50Base, Cabinet
51Front Panel
52279570 Whirlpool Dryer Door Latch Kit
53WP90767 Whirlpool Screw
56WPL 8519273
61WPL 8519233
62Panel, Rear
63WP692400 Whirlpool Nut
64SCREW
64WPL ARI12244A3
66W10470674 Whirlpool Dryer Side Vent Exhaust Kit
