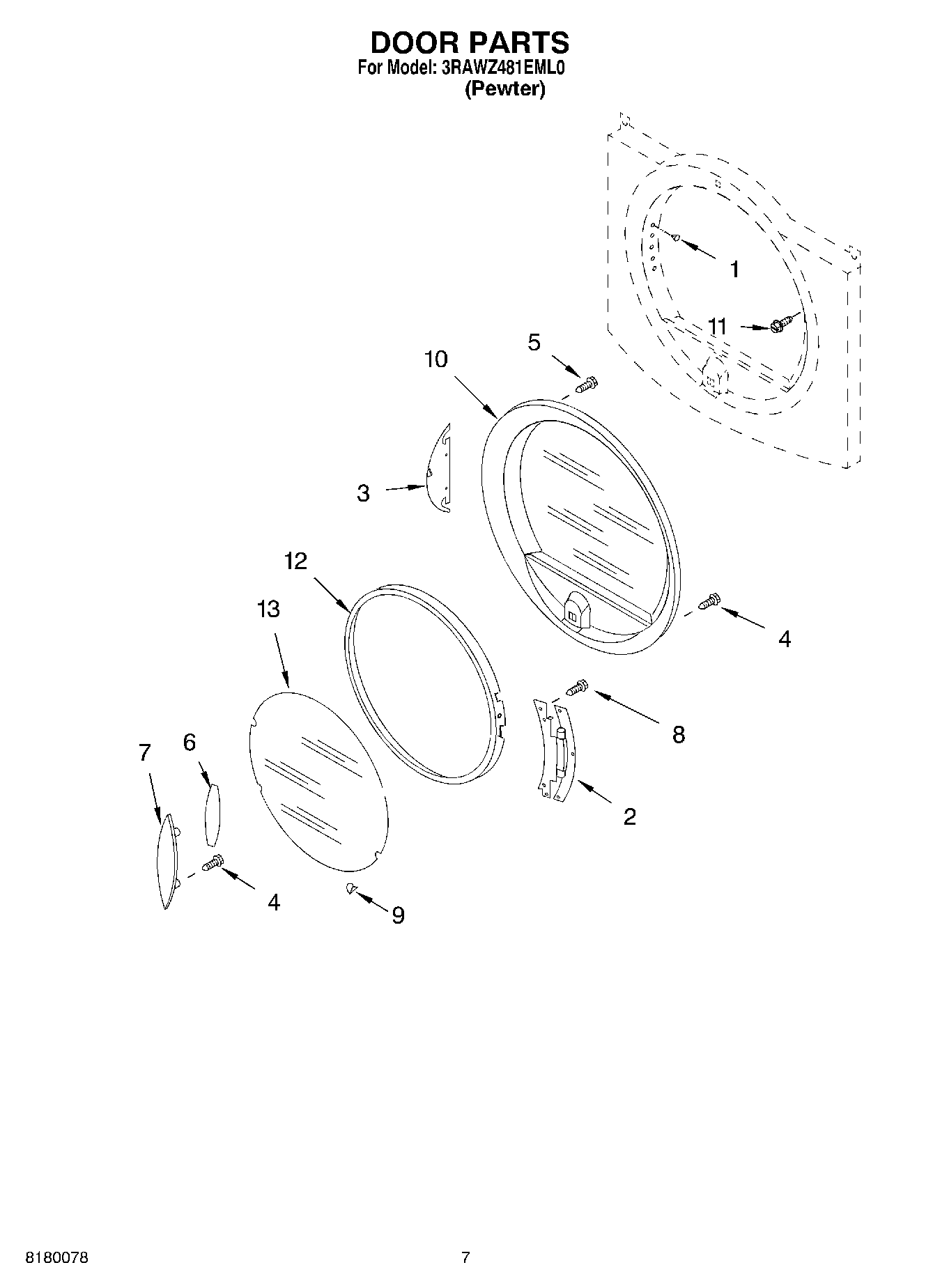

3RAWZ481EML0 04 – DOOR PARTS

3RAWZ481EML0 04 – DOOR PARTS

Written by

in

3RAWZ481EML0 04 – DOOR PARTS

Products

Position	Product
1	Plug, Hole (5)
2	Door Hinge Assembly
3	Cover, Door Hinge
4	SCREW
5	Screw, 10-32 x 1/2
6	WP8519336 Whirlpool Pad
7	Handle, Door
8	Screw, 1/4-20 x 1/2
9	Plug, Door Handle (2)
10	Door Assembly (Inner)
11	WP355515 Whirlpool Screw
12	Door, Outer
13	WINDOW
