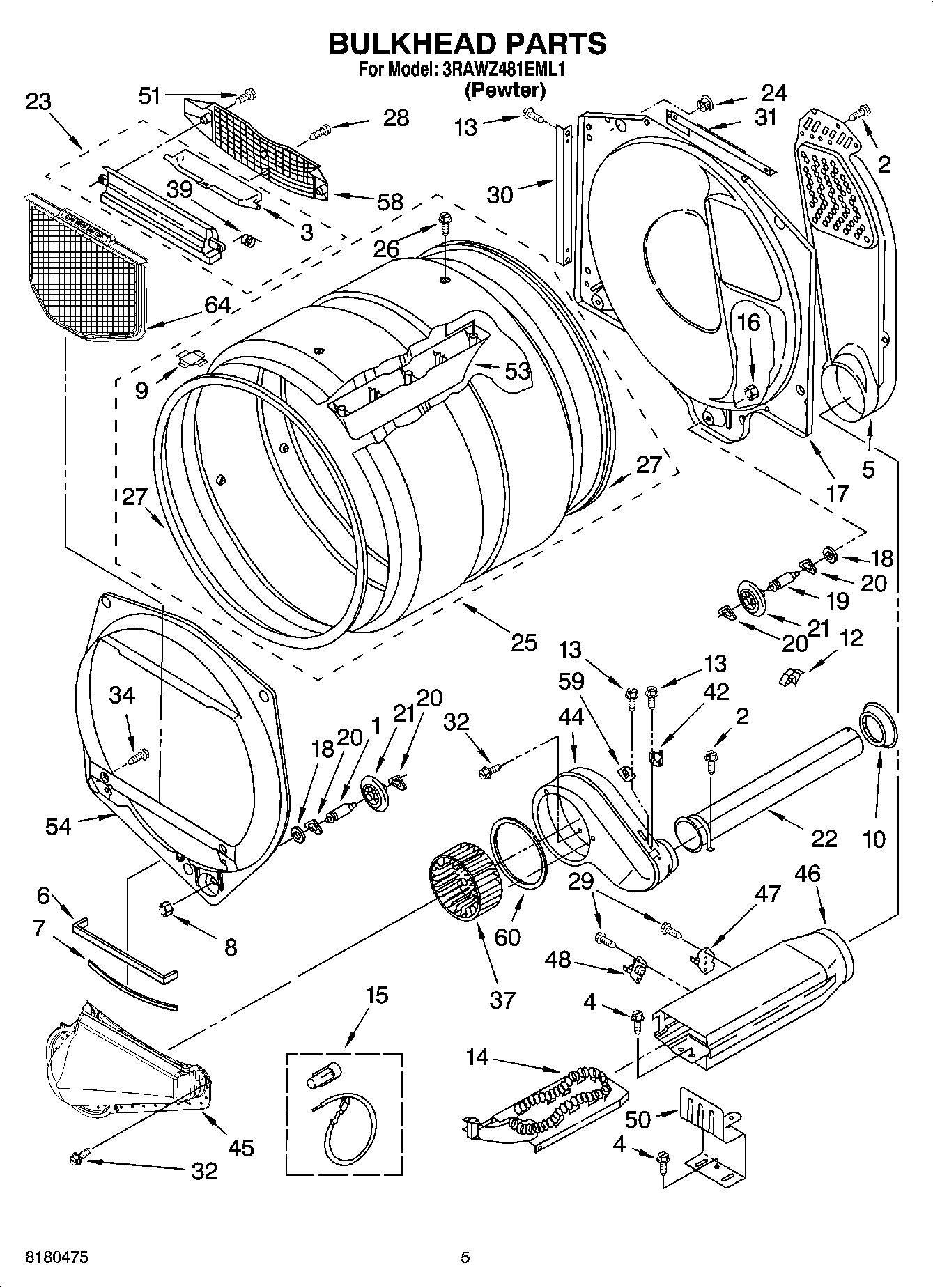

3RAWZ481EML1 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11222846 Whirlpool Door
4	303776 Whirlpool Dishwasher Screw
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WP3359452 Whirlpool Nut
9	8066086 Whirlpool Plug
10	W11233063 Whirlpool Shield Assembly
12	WP3388229 Whirlpool Dryer Spring Clip
13	WPW10139210 Whirlpool Screw
14	ELEMENT
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	Nut, 3/8-16 (L.H.)
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	279936 Whirlpool Exhaust Pipe
23	W11129408 Whirlpool Out Housing
24	8529007 Whirlpool Plug
25	Complete Drum Assembly
26	WPW10109200 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
29	WP90767 Whirlpool Screw
30	Channel Bracket, Rear Bulkhead (2)
31	W10118337 Whirlpool Bracket Assembly
32	3400826 Whirlpool Screw
34	WP308685 Whirlpool Microwave Screw
37	WP697772 Whirlpool Dryer Blower Wheel
39	WP3394986 Whirlpool Spring
42	WP3387137 Whirlpool Thermostat
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	W10802681 Whirlpool Box Assembly
47	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
48	WP3390291 Whirlpool High Limit Thermostat
50	8066099 Whirlpool Bracket
51	WP3387230 Whirlpool Screw
53	WPW10113136 Whirlpool Drum Baffle
54	Bulkhead, Front
58	W11086603 Whirlpool Dryer Link Screen Air Grille
59	WP3392519 Whirlpool Dryer Thermal Fuse
60	WP697770 Whirlpool Blower Cover Plate Seal
64	W10120998 Whirlpool Dryer Lint Screen Filter
